Large Roller Foot With Needle Plate & Feed Dogs - Singer

Large Roller Foot With Needle Plate & Feed Dogs - Singer

2438-12436-12267

Large Roller Foot With Needle Plate & Feed Dogs - Singer

$19.99
$19.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

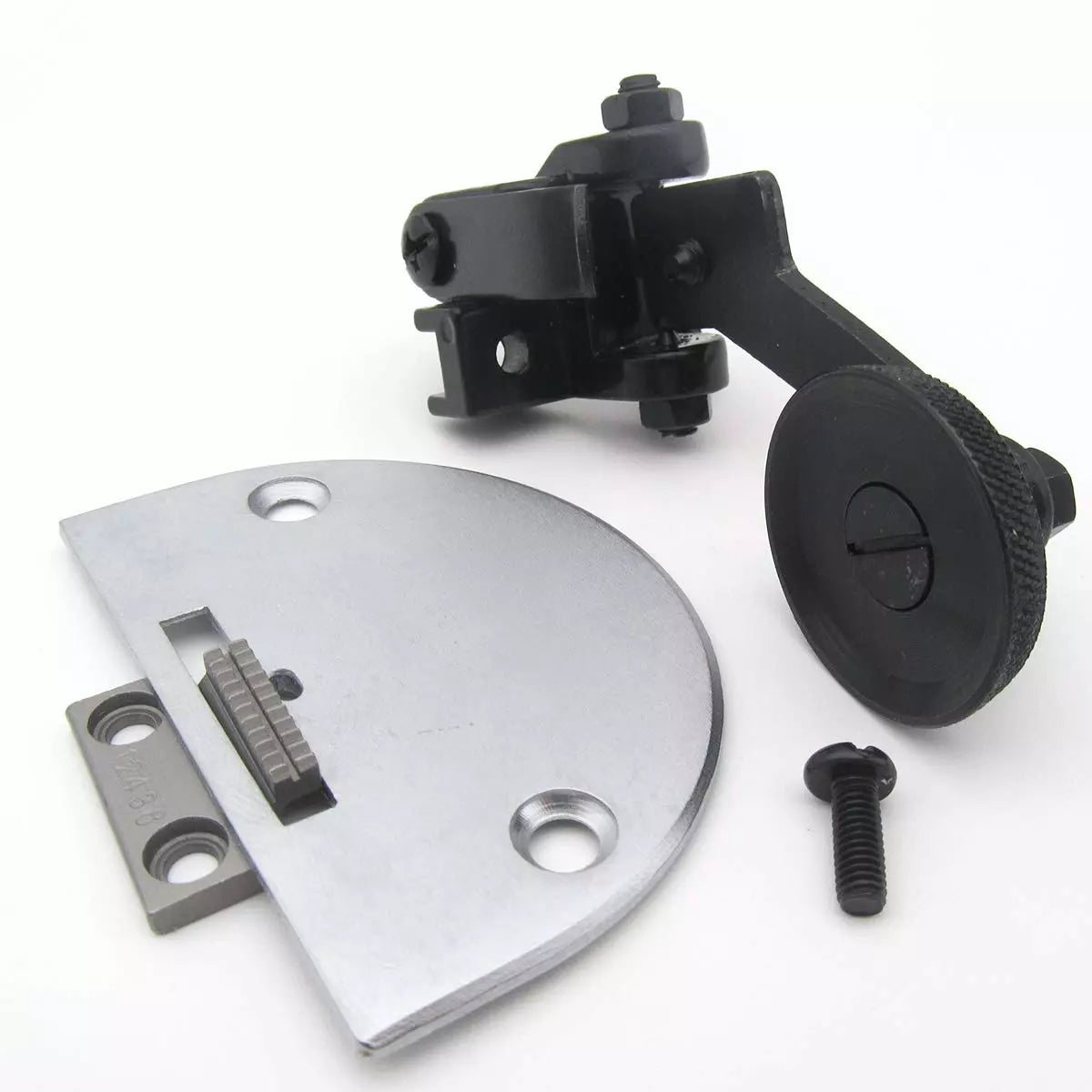

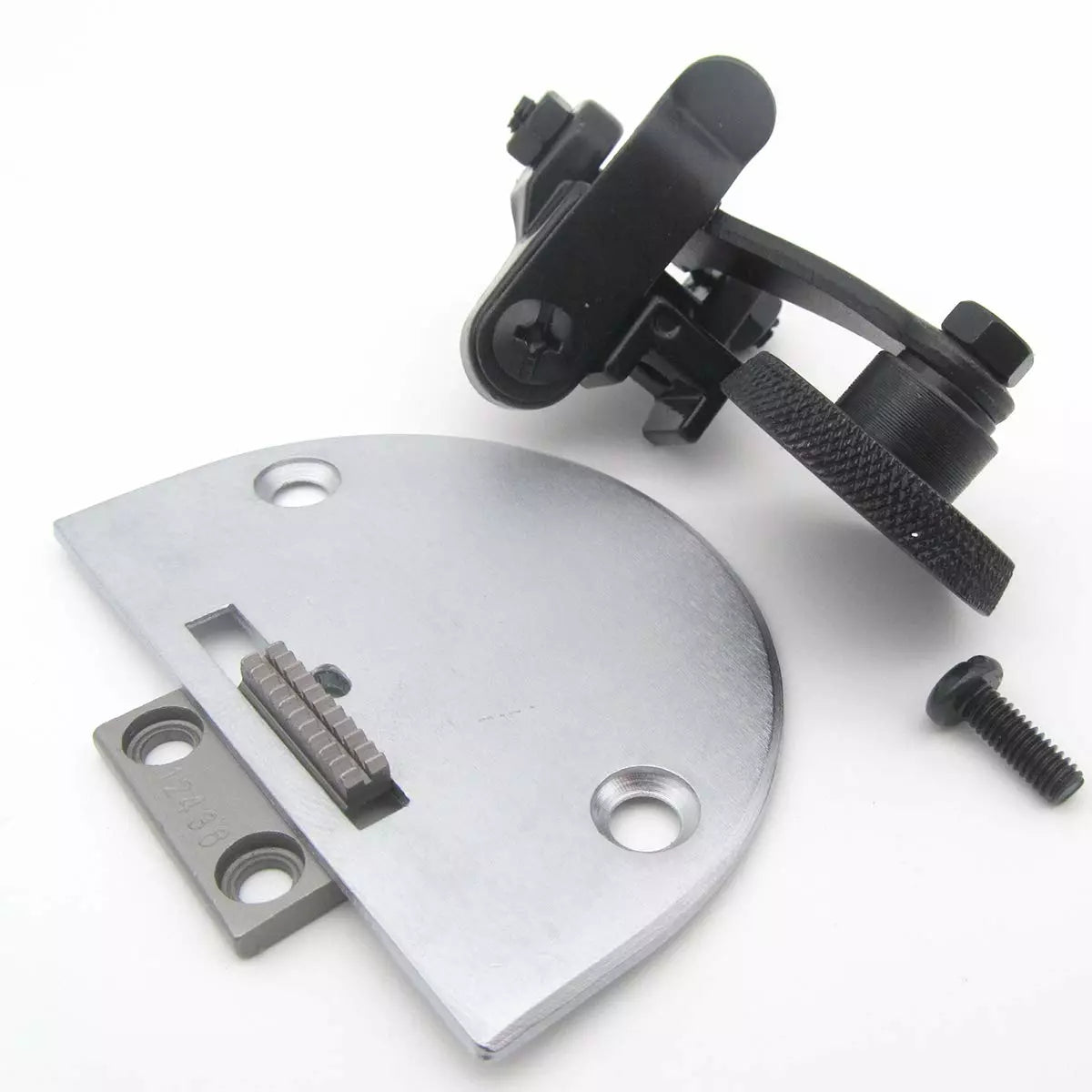

Large Roller Foot With Needle Plate & Feed Dogs - Singer

Part Number

  • 12438 - Needle Plate
  • 12436 - Feed Dog
  • 12267 - Large Roller Foot

These Serrated Roller Presser Feet are perfect for sewing Leather, Nylon, Plastics, Foam Rubber, Laminated Fabric/Material, etc. Significantly improves feeding of these materials through your machine Allows “Free-Style” stitching with very sharp turns Improves visibility of stitches while sewing shapes, box and bar/flag tacks Attaches simply; similar to standard presser foot For improved control and consistent stitches, with new Feeder, requires: Centering of the Feeder stroke within the Feeder slots in the Needle Plate. This is required if your Feeder is hitting the Needle Plate in either the front or back during the feeding motion. To make this adjustment, loosen either of the screws under the Feeder (NOT the Feeder screws themselves). Only loosen one or both of these screws enough to allow the Feeder to be moved with your fingers slightly from front to back within the Needle Plate Feeder slots. Do NOT loosen so much that there is no feeding motion. Turn the Hand-Wheel slowly in the normal direction to make certain that the Feeder is centered within the Needle Plate Feeder slots. Tighten screws after Feeder centered. Also note that the height of the Feeder may also require adjustment.

MACHINE COMPATIBILITY:

  • Artisan Models:  196R, 5550N, 8500N, ZJ-100
  • Brother Models:  B705, B707, B715, B716, B735, B737, B738, B745, B755, B757, B758, B767, B781, PQ1300, PQ1500
  • Consew Models:  30, 98, 99, 102, 103, 105, 210, 217, 218, 219, 220, 230, 231, 290, 310, 2230, 7360R-1
  • Econsew Models:  DDL-5550, DDL-8500, DDL-8700
  • Feiyue Models:  8500, 8700
  • Gemsy Models:  8700
  • Janome Models:  1600P, 1600DB, 1600DBX
  • JUKI Models:  DDL-127, DDL-227, DDL-500, DDL-552, DDL-553, DDL-555, DDL-5550, DDL-5600, DDL-8300, DDL-8500, DDL-8700, DDL-8900, DDL-9000, TL-98E, TL-98Q, TL-2000Qi, TL-2010Q
  • Mitsubishi Models:  DB-120, DB-121, DB-122, DB-126, DB-130, DB-170, DB-189, DB-199, LS2-130, LS2-150, LS2-180, LS2-190, LS2-1130
  • Necchi Models:  BU, Supernova, and others with the high shank presser foot system
  • Reliable Models:  MSK-8800, MSK-8550M, MSK-8870M
  • Rex Models:  RX8500
  • Singer Models:  31-15, 95, 96, 120U, 121C, 121D, 188K, 191D, 195K, 196K, 241, 251, 281, 366K, 400W, 402W, 451K, 491D, 591D, 600W, 660A, 691D, 770D, 771D, 2191, 2491D
  • Sunstar Models:  KM-123A, KM-123B, KM-137A, KM-137B, KM-146BL, KM-250
  • Tacsew Models:  5550, 8500, 8500-T, T8700
  • Taiko Models:  TK-505, TK-510
  • Yamata Models:  FY8500, FY8700
  • Zoje Models:  ZJ15-1, ZJ80-1, ZJ999-1, ZJ999-5, ZJ5580, ZJ5580-D3, ZJ8500-D3, ZJ8500N

And many other comparable industrial lockstitch sewing machines.

Presser Foot Shank Type:  High Shank

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
