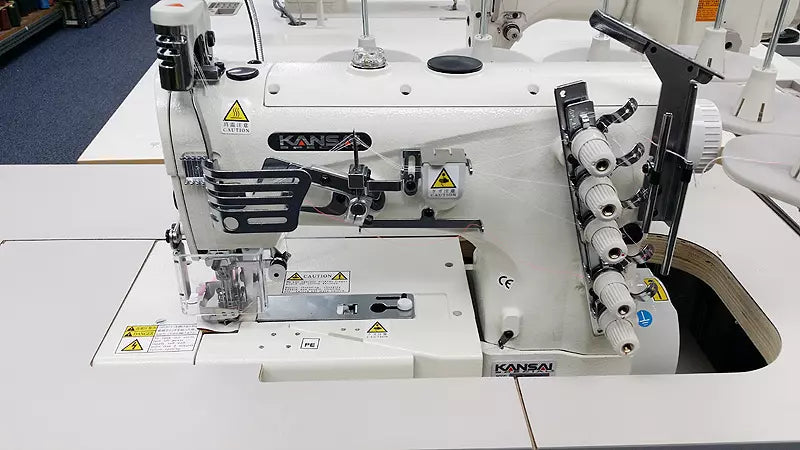

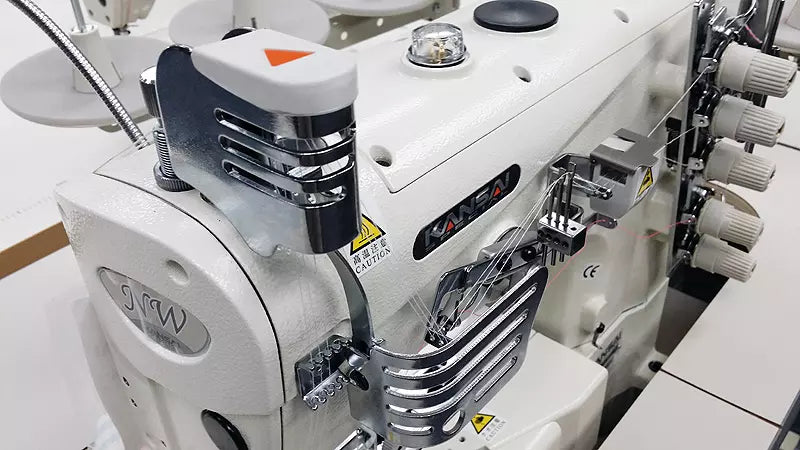

Kansai Special NW-8803GMG 3-Needle Top & Bottom Coverstitch Industrial Sewing Machine

Kansai Special NW-8803GMG 3-Needle Top & Bottom Coverstitch Industrial Sewing Machine

NW-8803GMG

Kansai Special NW-8803GMG 3-Needle Top & Bottom Flat Bed Coverstitch With Binding Fittings Industrial Sewing Machine With Table and Servo Motor

$2,599.99
$2,599.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Kansai Special NW-8803GMG

is the industry standard for sewing high-stretch apparel such as athletic uniforms, underwear, and t-shirts. As part of the GMG subclass, this machine is equipped with a comprehensive conversion kit that allows you to handle both plain seaming/hemming and tape binding on a single workstation. Powered by a quiet, energy-efficient Servo Motor, it delivers professional-grade, uniform stitch formations at speeds of up to 6,000 RPM.

  • Dual-Purpose Multi-Gauge System: Includes two complete sets of hardware for quick conversion between standard coverstitch seaming and specialized tape binding.
  • Top and Bottom Coverstitch: Produces strong, flexible seams with professional finishing on both sides of the fabric—perfect for activewear and performance knits.
  • Double-Layered Oil Seals: Features advanced sealing technology on the needle bar and presser foot to prevent oil leaks and protect delicate garments from stains.
  • Adjustable Needle Bar Stroke: Versatile design allows the needle bar stroke to be adjusted (31mm to 33mm) with a simple screwdriver to accommodate different material weights.
  • Micro-Adjustable Looper Holder: Simplifies the gauge adjustment process, allowing for precise tuning and reduced downtime during setup.
  • Sliding Thread Take-up: The looper thread take-up mechanism slides toward the operator for significantly easier threading and troubleshooting.
  • High-Torque Servo Motor: Provides silent operation and total speed control, using up to 90% less energy than traditional clutch motors.
  • Max Speed: 6,000 RPM
  • Number of Needles: 3
  • Number of Threads: 5
  • Stitch Type: Top & Bottom Coverstitch or Two Rows on Top, Coverstitch on Bottom
  • Stitch Length:  Adjustable
  • Foot Lift: 6 mm
  • MADE IN JAPAN

This machine ships complete with table, legs, motor, gooseneck lamp, and all accessories from the original equipment manufacturer.

The NW-8803GMG is optimized for knit, Lycra, and high-stretch synthetic fabrics:

  • Apparel: T-shirts, polo shirts, and children’s wear.
  • Undergarments: Men’s and ladies' underwear, lingerie, and camisoles.
  • Sportswear: Athletic uniforms, yoga pants, and compression gear.
  • Binding Operations: Finishing necklines, armholes, and sleeves with bias or collar tape.
  • General Finishing: Hemming bottom edges and covering overlock seams.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
