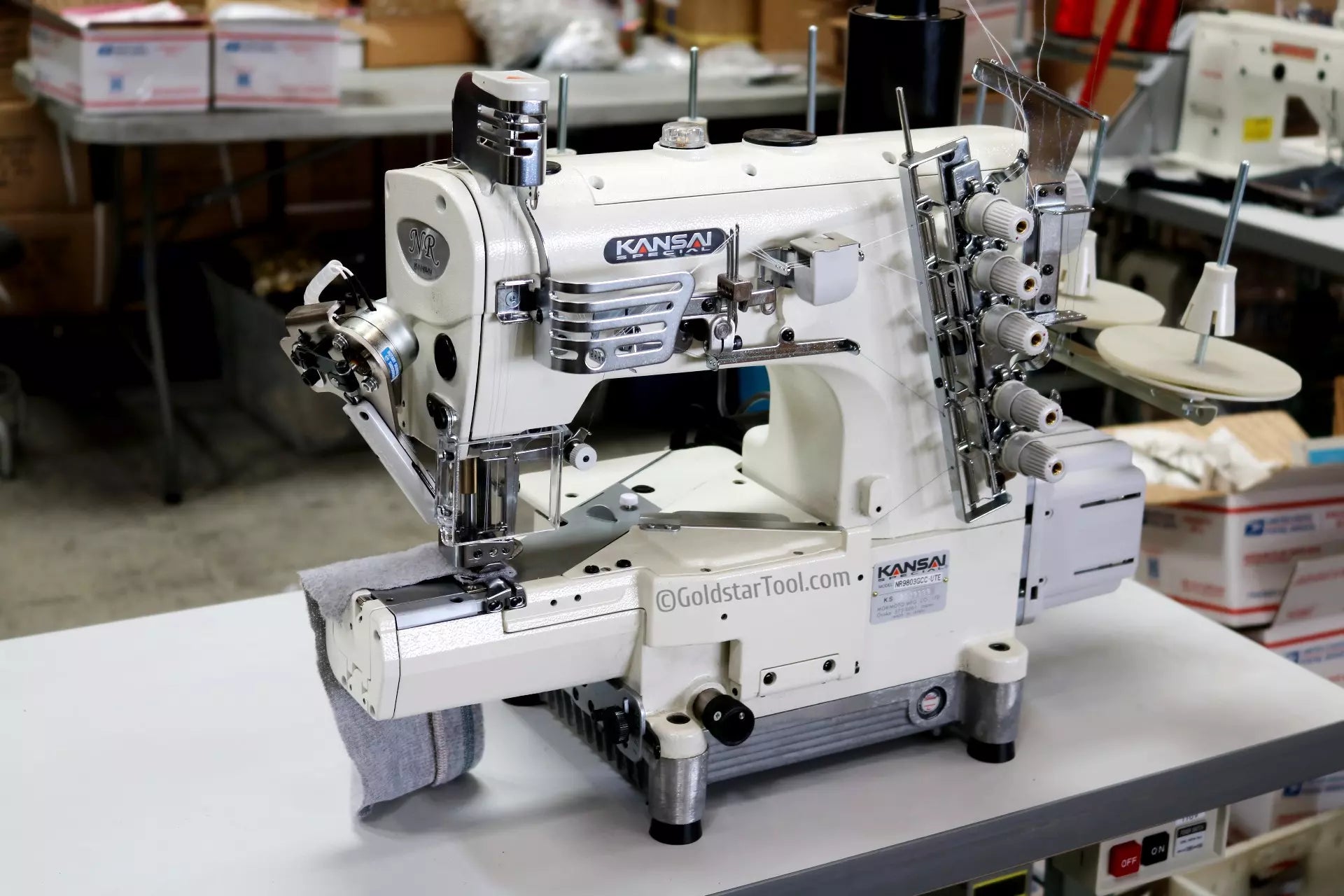

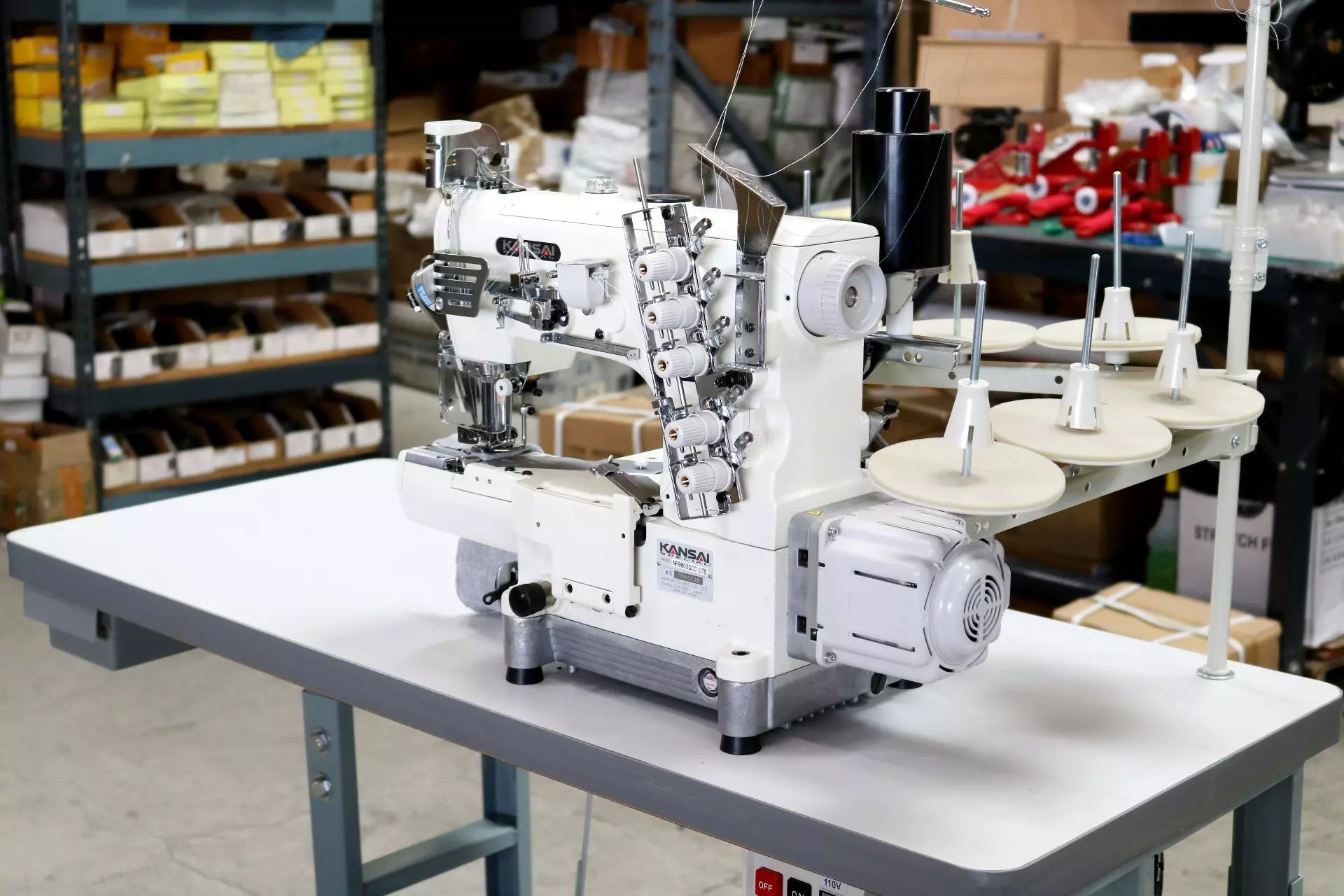

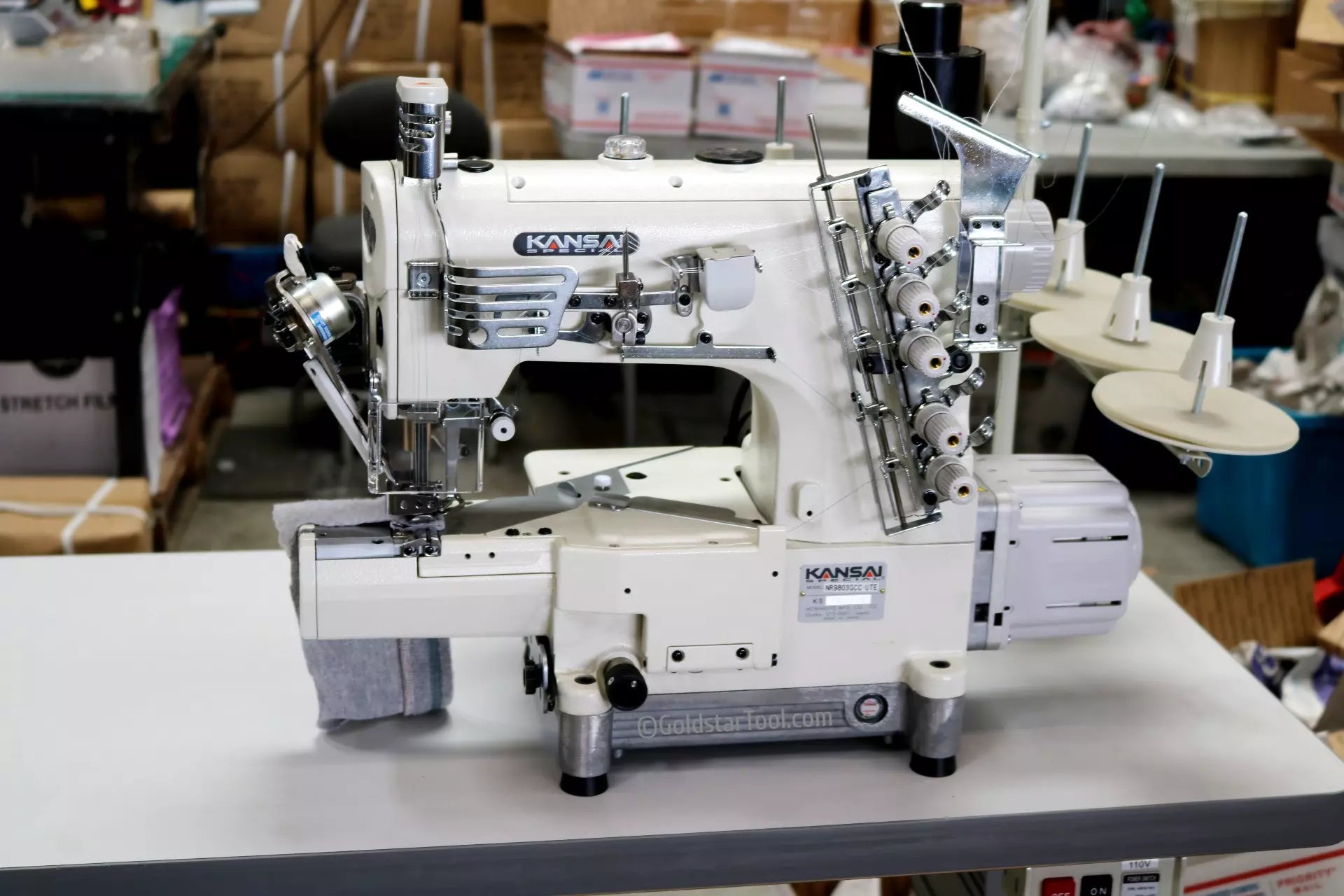

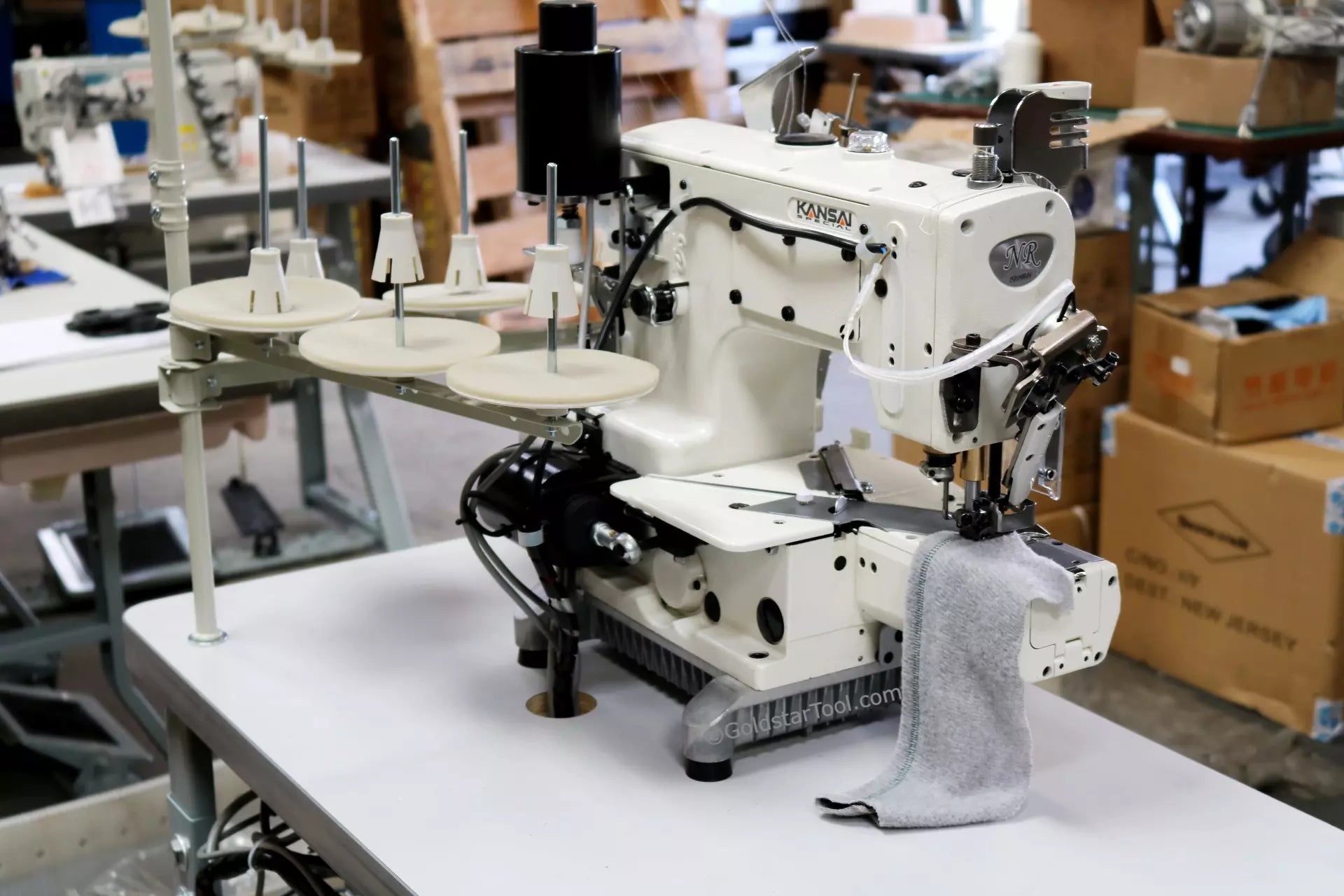

Kansai Special NR-9803GCC-UTE Industrial Coverstitch Sewing Machine

Kansai Special NR-9803GCC-UTE Industrial Coverstitch Sewing Machine

NR-9803GCC-UTE

3-Needle Cylinder Bed with Direct Drive, Automatic Thread Trimmer & Foot Lift

$4,799.99
$4,799.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

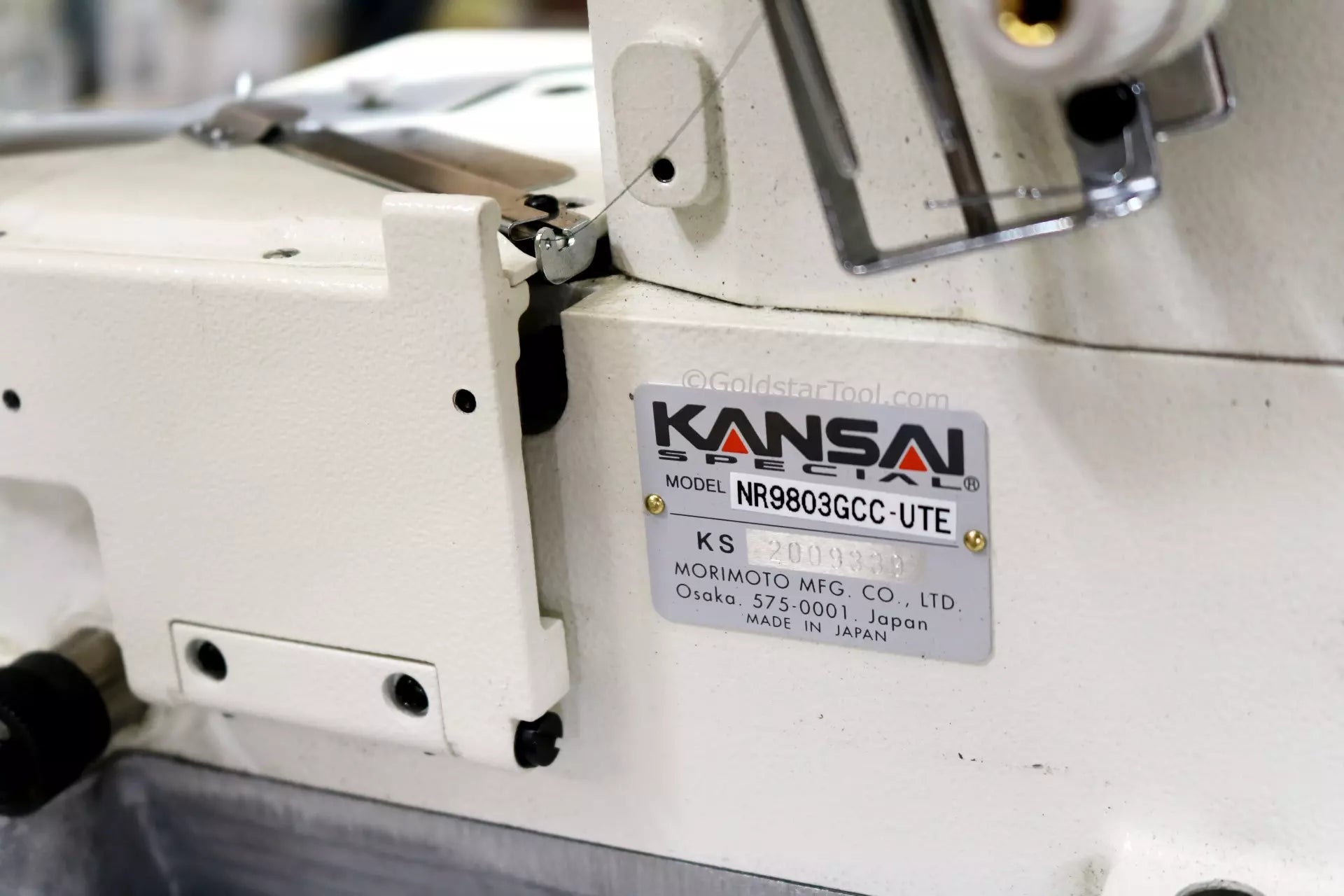

Kansai Special NR-9803GCC-UTE

is a premier, Japanese-engineered cylinder bed coverstitch machine designed for high-speed, high-precision garment production. Part of the advanced NR Series, this machine features a Direct Drive motor for silent, vibration-free operation and the UTE (Electric) automatic system for thread trimming and presser foot lifting. Its small-diameter cylinder bed (280mm) is specifically designed to handle tubular items like sleeves and necklines with ease, making it the industry standard for high-quality knitwear.

Perfect for processing light to medium-weight knit and stretchy fabrics:

  • Hemming: Bottom of t-shirts, polo shirts, and sportswear.
  • Covering: Overlock seams on necklines, shoulders, and armholes.
  • Tubular Parts: Sleeves, cuffs, and baby wear.
  • Intimate Apparel: Men's and ladies' underwear, lingerie, and activewear.
  • Specialty Fabrics: Lycra, polyester blends, and high-stretch jersey.
  • Direct Drive Technology: The integrated motor reduces energy consumption by up to 70%, eliminates belt noise, and provides instant needle response.
  • Automatic UTE System: Includes an electronic thread trimmer and automatic presser foot lifter to drastically increase operator productivity and reduce manual trimming time.
  • Advanced Oil-Stain Prevention: Features a new body design and a DLC (Diamond-Like Carbon) coated needle bar with double-layered oil seals to ensure oil-free garments.
  • Small Cylinder Bed: The 280mm circumference allows for effortless handling of small tubular parts, such as cuffs, sleeves, and baby clothes.
  • Versatile Stitching: Configured for 3-needle top and bottom coverstitch, but can be adjusted for 2-needle top/bottom cover or decorative plain seaming.
  • Precision Engineering: Made in Japan with high-durability internal components designed for 24/7 industrial environments.
  • Machine Type : 3-Needle, 5-Thread Cylinder Bed Coverstitch
  • Max Sewing Speed : 6,000 SPM (Stitches Per Minute)
  • Stitch Length : 1.6mm – 4.2mm (6–16 stitches per inch)
  • Needle Type : Organ UY128GAS #9–#14
  • Differential Feed Ratio : 0.3 ~ 2.9 (Adjustable for stretch control)
  • Standard Gauge : 1/4" (6.4mm) or 7/32" (5.6mm)
  • Presser Foot Lift : 6mm
  • Needle Bar Stroke : 31mm (Adjustable up to 33mm)
  • Lubrication : Centra-Lube® Semi-Automatic / Forced Circulation

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
