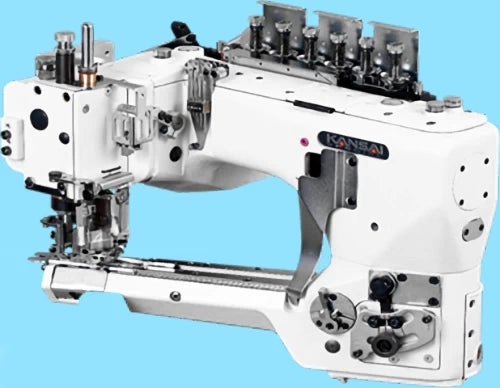

Kansai Special NFS6604GFMH-DD Flat Lock Machine 4-Needle, 6-Thread, Feed-Off-The-Arm Flatseamer

Kansai Special NFS6604GFMH-DD Flat Lock Machine 4-Needle, 6-Thread, Feed-Off-The-Arm Flatseamer

NFS6604GFMH DD

Complete Professional Station: Includes Direct Drive Motor, Industrial Table, and Stand

$5,999.99
$5,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Kansai Special NFS6604GFMH DD

is a high-performance industrial flatseamer engineered for the most demanding stretch-garment production. By utilizing a 4-needle, 6-thread feed-off-the-arm system, it creates a perfectly flat, "butt-joint" seam that is soft against the skin and highly durable.

This specific "MH" (Medium-Heavy) subclass is optimized for medium to heavy-weight knit fabrics, making it the industry standard for high-quality compression gear, performance sportswear, and premium fleece-lined thermal wear.

Kansai Special NFS6604GFMH DD i70

Flat Lock 4 Needle Cover Stitch Sewing Machine With Table, Legs, Direct Motor, and LED Lamp

NFS series are 4 needles, 6 thread, feed-off-the-arm, top, and bottom cover stitch machine. This machine is suitable for sewing high-quality underwear, sports wear, and knit wears. Single side cut or both side cut is possible, this system guarantees a flat and neat finish, for optimum texture of the seam to the skin. This machine is suitable for light ～ heavy materials such as inseaming of brief’s cross seams, and also perfect for tubular garments

  • Athletic Wear: Yoga pants, compression leggings, and cycling jerseys.
  • Swimwear: Professional racing suits and high-stretch beachwear.
  • Underwear: Seamless-feel briefs, bras, and base layers.
  • Knitwear: Heavy-duty sweatshirts and thermal apparel.
  • Flat Seam Technology: Joins two layers of fabric with a flat, overlap-free finish, essential for reducing chafing in athletic and intimate apparel.
  • Direct Drive (DD) Motor: The integrated servo motor is mounted directly to the machine head, providing instant needle response, reduced vibration, and up to 70% energy savings compared to clutch motors.
  • Feed-Off-The-Arm Design: The slim, horizontal arm allows for seamless sewing of tubular parts such as sleeves, leg openings, and cuffs.
  • Double-Edge Trimming: Equipped with high-precision knives that trim both edges of the fabric simultaneously before stitching to ensure a perfectly clean and aligned seam.
  • Advanced Lubrication: Features a sealed oil protection system that prevents staining on delicate or expensive performance fabrics.
  • Pneumatic Efficiency: Includes a pneumatic foot lifter and suction device (waste remover) to keep the workspace clean and increase operator speed.
  • Number of Needles: 4
  • Number of Threads: 6
  • Needle Type:Organ: FLX118GCS 11 FLG-8Schmetz: 118GKS 75
  • Gauge: 5.2mm, 6mm
  • Stitches Per Inch: 10～16
  • Differential Feed Ratio: 1:0.5～1:1.5
  • Presser Foot Lift: 6mm
  • Needle bar Stroke: 30mm
  • Max. Sewing Speed: 3500～3800rpm

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
