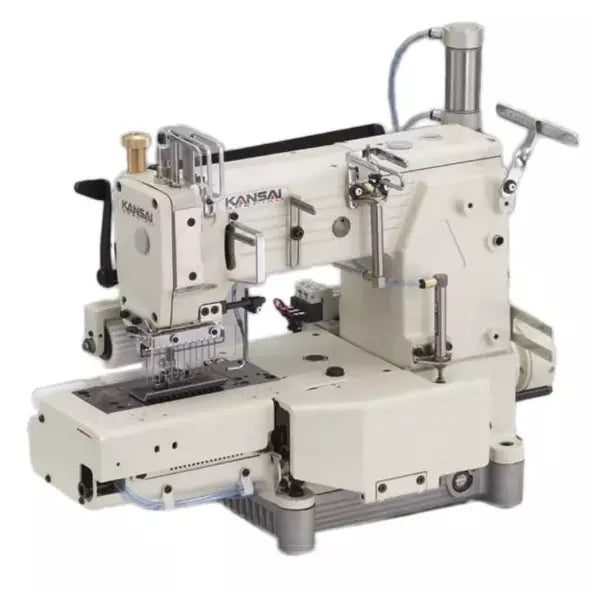

Kansai Special FX-4412P-UTC 12-Needle Cylinder Bed Double Chainstitch Machine with Automatic Thread Trimmer, Table, and Servo Motor

Kansai Special FX-4412P-UTC 12-Needle Cylinder Bed Double Chainstitch Machine with Automatic Thread Trimmer, Table, and Servo Motor

FX4412P-UTC

UTC Machine Head, Pneumatic UTC System, Industrial Laminated Table, Heavy-Duty T-Leg Stand with Wheels, High-Torque Electronic Servo Motor (110V/220V), Multi-Cone Thread Stand, and Accessory Kit.

$6,499.99
$6,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Kansai Special FX-4412P

is a high-speed, 12-needle, cylinder bed double chainstitch machine engineered for the precision attachment of pre-closed elastic. Featuring a vertical looper movement mechanism, it provides exceptional stitch stability on stretchy and medium-weight fabrics. The 420mm circumference cylinder bed is specifically designed to handle tubular garments like waistbands and cuffs with ease. This "UTC" model is equipped with a pneumatic automatic thread trimmer that accurately trims all 24 threads simultaneously, drastically reducing manual labor and thread waste in high-volume production environments.

  • 12-Needle Multi-Stitch System: Produces up to 12 parallel rows of double chainstitching, providing superior elasticity and structural strength for waistbands.
  • Small Cylinder Bed (420mm): The slimmed-down arm allows for effortless sewing of pre-closed circular garments, including children's wear and athletic shorts.
  • UTC Automatic Thread Trimmer: A pneumatic system that trims upper and lower threads at the end of the cycle, increasing productivity by up to 160% compared to manual trimming.
  • Vertical Looper Mechanism: Ensures a smooth, consistent stitch formation even at high speeds, reducing needle breakage and thread snaps.
  • Integrated Rear Puller (P): A heavy-duty rear puller works in synchronization with the feed dogs to ensure flat, pucker-free feeding of elastic and fabric.
  • Versatile Subclass Options: Compatible with various attachments like the RT-1 (Elastic Expander) for even distribution of elastic tension during sewing.

No. of Needle: 12

  • No. of Thread: 24
  • Needle Type: Organ(#) DV×57 14 - Schmetz(Nm) DV×57 90
  • Gauge(Inch): 1/4, 5mm, 3/16
  • No. of Stitch(Stitch/Inch): 7～17
  • Presser Foot Lift (mm): 8
  • NeedleBar Stroke (mm): 34.5
  • Max speed (rpm): 4000
  • Athletic Wear: Attaching elastic to sweatpants, gym shorts, and tracksuits.
  • Intimate Apparel: High-speed production of underwear, trunks, and boxers.
  • Loungewear: Efficient assembly of pajama waistbands and cuffs.
  • Decorative Stitching: Multi-row parallel stitching for tape attachment or aesthetic detailing.

DOWNLOADS:


U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.




JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
