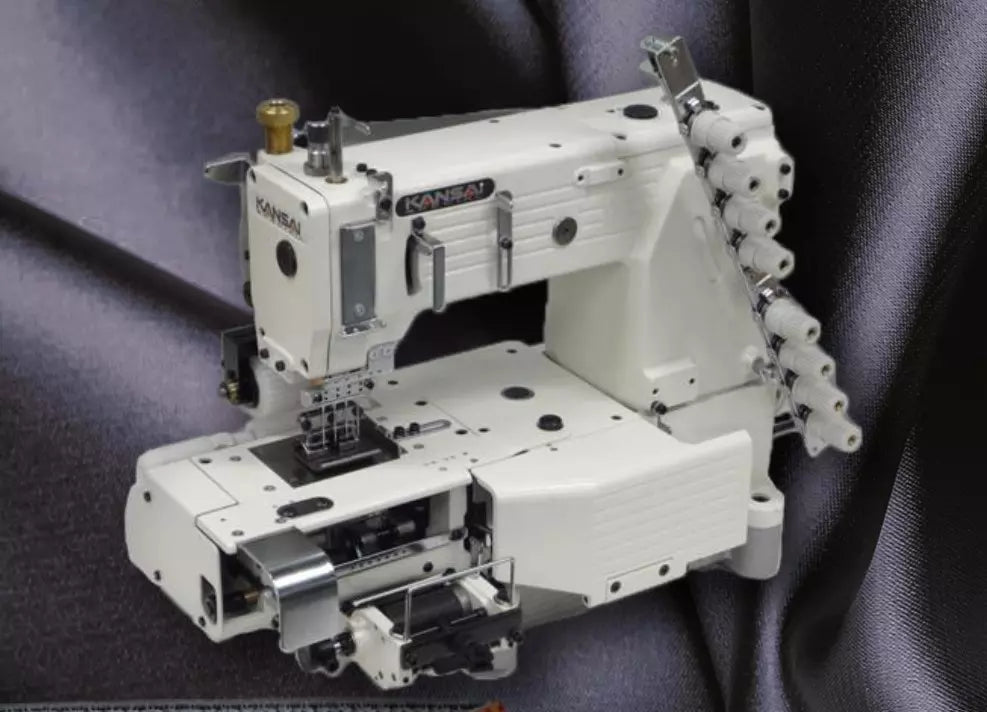

Kansai Special FX Series Multi-Needle Cylinder Bed Sewing Machine

Kansai Special FX Series Multi-Needle Cylinder Bed Sewing Machine

FX4418P-UTC

Industrial Double Chainstitch System for Elastic and Line Tape Attachment

$3,999.99
$3,999.99 Market price:
Sale Sold out
Choose Model
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Kansai Special FX Series

is a versatile, high-speed multi-needle machine engineered for circular (tubular) sewing. Utilizing a double chainstitch system with a unique vertical looper movement, the FX Series is the premier choice for attaching pre-closed elastic bands and decorative line tapes. From 4 to 12 needles, this machine delivers consistent, high-stretch seams for sweatpants, pajamas, and sportswear, ensuring that elastic tension remains uniform throughout the garment.

Common Subclasses

  • FX-4404P/4412P: Standard models for plain seaming and elastic attachment with rear puller.
  • FX-4404PMD: Equipped with a Metering Device for precise elastic band feeding.
  • FX-4412PL: Specialized for attaching line tapes (side stripes) to athletic wear.
  • UTC Models: Includes automatic pneumatic thread trimming and air wiper.
  • Activewear: Attaching waistbands to sweatpants, joggers, and leggings.
  • Underwear: Elastic attachment for boxers, trunks, and lingerie.
  • Sleepwear: High-stretch seams for pajamas and loungewear.
  • Athletic Apparel: Attaching side stripes/tapes to tracksuits and jerseys.
  • Cylinder-Bed Versatility: The 420mm circumference cylinder bed is specifically designed for handling tubular goods like waistbands, cuffs, and leg openings with ease.
  • Vertical Looper Mechanism: Features Kansai Special’s signature vertical (front-to-back) looper movement, providing superior stitch stability and reducing thread breakage on heavy fabrics.
  • Rear Puller System: Equipped with a synchronized rear puller that assists in the smooth feeding of elastic materials, preventing puckering and ensuring perfectly even rows of stitching.
  • Wide Gauge Range: Available in configurations from 4 to 12 needles (up to 25 in specialized models), allowing for multiple rows of parallel stitching in a single pass.
  • Automatic Lubrication: Full automatic lubrication system ensures the longevity of internal components and reduces maintenance downtime during high-volume production.
  • Optional UTC (Automatic Thread Cutter): Can be equipped with an under-bed thread trimmer (UTC) to significantly increase productivity and reduce thread waste.
  • Application: FX4412P-UTC, FX4418P-UTC, FX4423P-UTA: Light to Medium- Sportswear, Trunks, etc.FX4418SPF-SA: Medium to Heavy - Waist Bands
  • Needle:FX4412P-UTC, FX4418P-UTC, FX4423P-UTA: DVx57 -14FX4418SPF-SA: DVx57- 21
  • No. of Threads:FX4412P-UTC, FX4423P-UTA: 24FX4418P-UTC: 12FX4418SPF-SA: 6x2 =12
  • Needle Gauge:FX4412P-UTC: 1/4”, 3/16”,5mm gauges are availableFX4418P-UTC: 1/8-1/8-1/8-1/8-1/4-1/8-1/8-1/8-1/4-1/8-1/8-1/8-1/8-1/4-1/8-1/8-1/8”
    Total width:     2-1/2”FX4423P-UTA: 1/8"FX4418SPF-SA: 1/4" x 18 Needles Special Gauge
  • Needle Bar Stroke: 34.5mm
  • Stitch Length: 7-17
  • Presser Foot Lift: 8mm
  • Max. Speed: FX4412P-UTC, FX4418P-UTC, FX4423P-UTA: 4000FX4418SPF-SA: 4500


DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.
