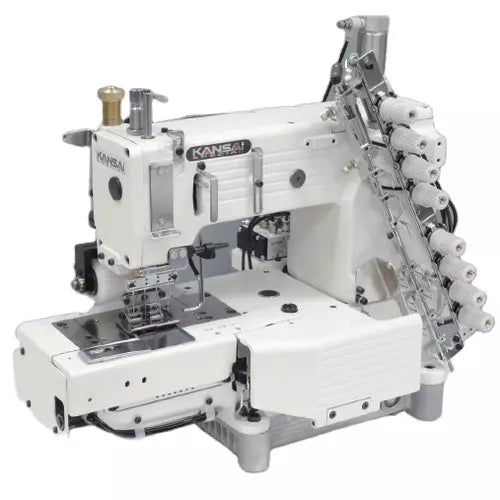

Kansai Special FX-4404P 4-Needle Cylinder Bed Industrial Sewing Machine

Kansai Special FX-4404P 4-Needle Cylinder Bed Industrial Sewing Machine

FX-4404P

High-Speed Double Chainstitch with Rear Puller, Table, and Servo Motor

$2,999.99
$2,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

KANSAI SPECIAL FX-4404P

is designed specifically for circular or tubular garments. Its cylinder bed allows for the easy maneuvering of pre-closed waistbands, cuffs, and leg openings that cannot be sewn on a flatbed machine. Featuring a vertical looper movement mechanism, it produces high-quality, flexible stitches that are ideal for stretchy fabrics. The integrated Rear Puller (P) ensures that material and elastic are fed through the machine with consistent tension, preventing the "puckering" often found in lower-quality athletic wear.

  • 4-Needle Multi-Stitch System: Produces four perfectly parallel rows of double chainstitching, providing both a professional aesthetic and high-strength elasticity.
  • Cylinder Bed Design: The slim, tubular arm is purpose-built for sewing "in-the-round," making it indispensable for waistbands on sweatpants, shorts, and pajamas.
  • Integrated Rear Power Puller (P): A synchronized flat puller provides additional traction behind the needles, ensuring smooth, flat seams even when sewing over varying thicknesses.
  • Vertical Looper Mechanism: Unlike horizontal loopers, the vertical motion reduces the risk of needle strikes and thread breakage, allowing for higher sustained speeds.
  • Adjustable Needle Gauges: While standard at 1/4", the machine can be configured for different needle spacings to suit specific design requirements.
  • Double Chainstitch (ISO 401): Creates a seam that stretches with the fabric—essential for activewear—while using large thread cones to eliminate bobbin changes.
  • No. of Needle: 4
  • No. of Thread: 8
  • Needle Type: Organ(#) DV×57 14 - Schmetz(Nm) DV×57 90
  • Gauge(Inch): 1, 3/4, 1-1/8,1-1/4, 1-1/2
  • No. of Stitch(Stitch/Inch): 7～17
  • Presser Foot Lift (mm): 8
  • NeedleBar Stroke (mm): 34.5
  • Max speed (rpm): 4500
  • Sportswear: Attaching elastic waistbands to gym shorts, leggings, and tracksuits.
  • Underwear: High-speed production of boxers, briefs, and lingerie waistbands.
  • Loungewear: Efficiently sewing cuffs and waistbands on pajamas and fleece wear.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
