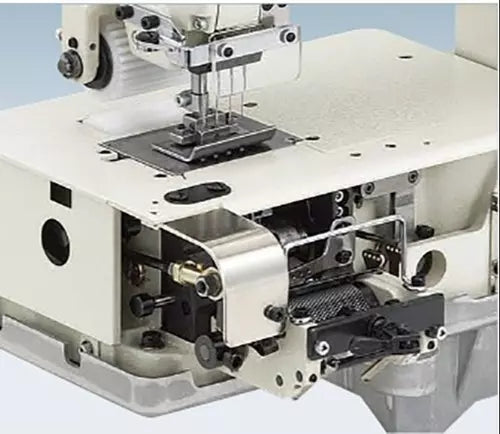

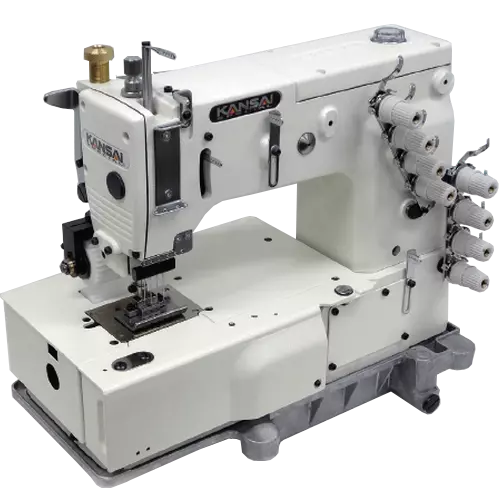

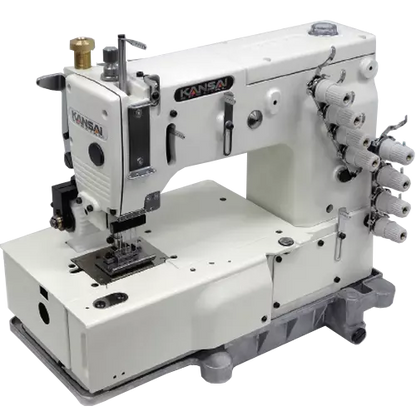

Kansai Special DFB-1404P Multi-Needle Industrial Chainstitch Sewing Machine with Table and Servo Motor

Kansai Special DFB-1404P Multi-Needle Industrial Chainstitch Sewing Machine with Table and Servo Motor

DFB1404

4-Needle Flatbed | Rear Puller System | High-Speed Production

$2,999.99
$2,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Kansai Special DFB1404-P

is a high-performance, 4-needle, longitudinal chainstitch machine designed for uniform, heavy-duty stitching. This "P" series model is equipped with a heavy-duty rear puller, making it the industry standard for attaching elastic, waistbands, and line-taping. Unlike lockstitch machines, its chainstitch mechanism offers superior seam elasticity—perfect for stretch fabrics—and eliminates the need for bobbin changes, allowing for continuous, high-speed production.

  • 4-Needle Precision: Specifically designed for multi-needle applications such as elasticating, smocking, and waistband attachment.
  • Independent Rear Puller (P-Type): Features a mechanical rear puller that ensures smooth, consistent feeding of heavy or elasticized materials without bunching.
  • Continuous Chainstitch System: Uses a looper system instead of bobbins, allowing for long, uninterrupted runs—ideal for high-volume manufacturing.
  • Adjustable Needle Gauges: Versatile needle spacing (standard 1/4") allows for various widths of decorative or functional stitching.
  • High-Torque Servo Motor: Provides silent operation and precise speed control, saving up to 70% energy compared to traditional motors.
  • Rugged Durability: Built with Japanese engineering standards to withstand 24/7 factory environments.

Number Of Needles: 4

  • Number of Thread: 8
  • Needle Type: Needle Type Organ(#): UO X 113 14#Needle Type Schmetz (Nm): UY X 113 90 Nm
  • Gauge (inch): 3/4, 1, 1-1/8,1-1/4, 1-1/2, 1/4-1/2-1/4
  • Number of Stitches Per Inch: 7~17
  • Presser Foot Lift: 10mm
  • Needle Bar Stroke: 34mm
  • Max Speed Per Inch: 4500spm
  • Sportswear: Attaching elastic waistbands to gym shorts, leggings, and tracksuits.
  • Workwear: Multi-line decorative stitching and seam reinforcement on heavy trousers.
  • Intimate Apparel: Elasticating lingerie and undergarments.
  • Decorative Finishes: Creating line-tapes or accent stitching on shirt fronts and jacket sleeves.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase -Kansai 1404PMD 4-Needle Chainstitch Sewing Machine- Goldstartool.com

Product Showcase - Kansai DFB1404-P Chain Stitch Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
