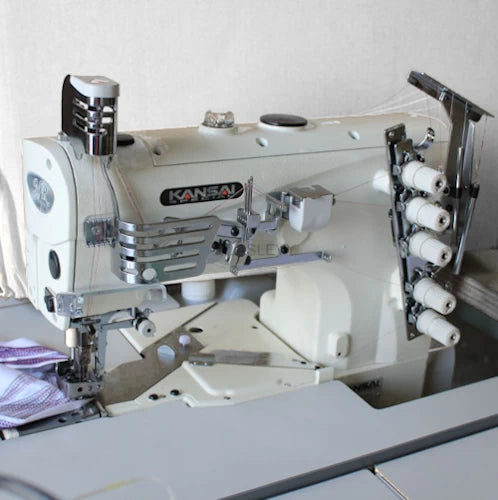

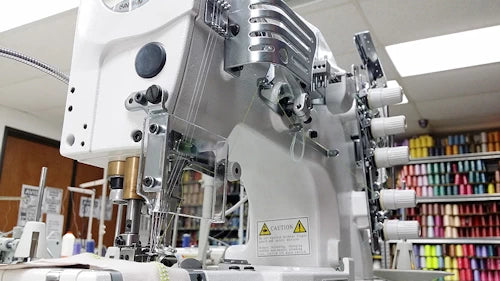

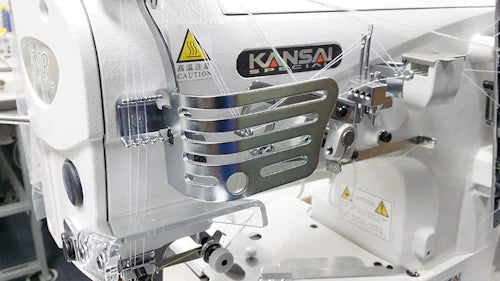

Kansai Special NR-9803GCC Cylinder Bed Cover Stitch Machine 3-Needle, High-Speed, Top and Bottom Cover Stitch

Kansai Special NR-9803GCC Cylinder Bed Cover Stitch Machine 3-Needle, High-Speed, Top and Bottom Cover Stitch

NR-9803GCC

Complete Unit: Includes Assembled Table, Legs, and High-Torque Servo Motor

$2,499.99
$2,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Kansai NR-9803GCC

is a premier industrial cylinder bed machine designed for high-speed cover stitching on tubular garments. Engineered in Japan, this machine is the industry standard for hemming and decorative stitching on circular items such as T-shirt sleeves, necklines, and children’s wear.

The NR series is renowned for its extreme durability and ability to maintain perfect stitch consistency even at speeds of up to 6,000 SPM. Whether you are performing basic hemming or complex top-stitching, the NR-9803GCC delivers a professional-grade finish that stretches with the fabric without breaking.

Kansai NR-9803GCC

3 Needle Cylinder Bed Top and Bottom Cover Stitch Machine With Table, Legs, Servo Motor, and LED Lamp

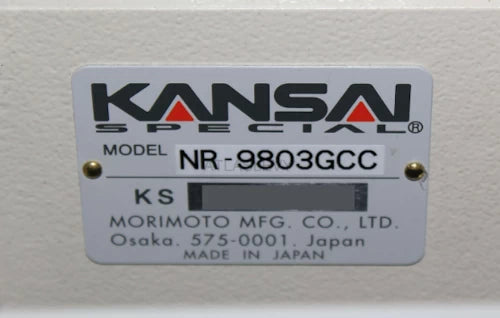

Made in Japan

Three-needle high-speed top and bottom cover stitch machine with a cylindrical bed (diameter 280 mm) for hemming, pneumatic thread trimming, and foot lift.

The NR series is the latest development from Kansai Special. The new design of the body and sleeve of the machine and the built-in system to prevent oil stains on the fabric make the machine very attractive to manufacturers of high-quality knitwear and other types of fabrics. The time-tested design features of the machines of the previous series have been retained, as well as new innovative technical solutions have been added that allow for making high-quality seams without the intervention of a mechanic.3-needle high-speed automatic cover stitch machine with top and bottom cover and a cylindrical platform is used for processing knitwear, medium and light fabrics. It is mainly used for hemming the bottom of the product and hemming the bottom of the sleeve of the product. A hemming device is included with the machine.

Equipped with automatic presser foot lift and pneumatic thread trimming.

The cylindrical platform of small diameter (280 mm) greatly facilitates the processing of complex knots and products closed in a ring with a flat seam.

High working speed, excellent flat seam quality, easy maintenance, and setup - all this makes the Kansai Special NR-9803GCC-UTE cover stitch machine the ideal solution for any light industry enterprise.

  • Small Cylinder Bed: The narrow circumference allows operators to easily sew small tubular items like cuffs, ankles, and neckbands that are impossible on a flatbed machine.
  • Versatile Stitching: Configured as a 3-needle machine, it can be used for triple-stitch reinforcement, 2-needle cover stitching, or single-needle chain stitching.
  • Direct-Drive Servo System: Experience whisper-quiet operation and up to 70% energy savings. The motor provides instant start/stop response and precise needle positioning.
  • Top and Bottom Cover Stitch: Includes a top spreader to create decorative and functional cover stitches on both sides of the fabric simultaneously.
  • High-Speed Stability: Advanced needle bar and looper mechanisms are designed to minimize vibration and heat buildup during continuous, high-volume production.
  • Adjustable Differential Feed: Fine-tune the feed ratio to prevent puckering on lightweight knits or stretching on highly elastic performance fabrics.
  • Number of Needles: 3
  • Number of Threads: 5
  • Needle Type: Organ: UY×128GAS 9～14Schmetz: UY×128GAS 65～90
  • Gauge (Inch): 7/32, 1/4
  • Stitches Per Inch: 6～16
  • Differential Feed Ratio: 0.3～2.9
  • Presser Foot Lift: 6mm
  • Needle Bar Stroke: 31mm
  • Max Sewing Speed: 6000rpm
  • Apparel: Hemming T-shirts, attaching neckbands, and finishing polo shirt sleeves.
  • Activewear: Performance leggings, compression gear, and sportswear cuffs.
  • Children’s Wear: Ideally suited for the small openings found in infant and toddler clothing.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
