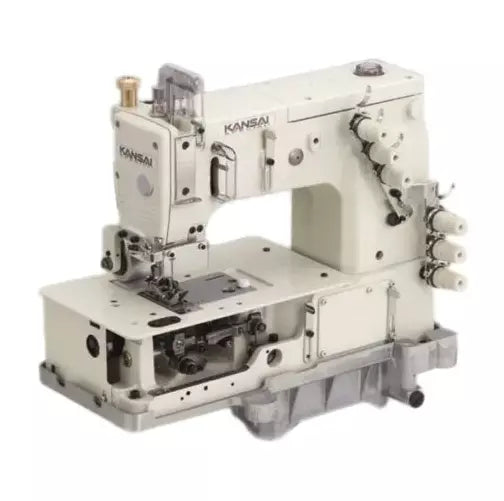

Kansai Special DLR-1508P 4-Needle Double Chainstitch Industrial Sewing Machine with Table and Motor

Kansai Special DLR-1508P 4-Needle Double Chainstitch Industrial Sewing Machine with Table and Motor

DLR-1508P

Flatbed Multi-Needle System with Integrated Rear Puller

$2,499.99
$2,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

KANSAI DLR-1508P

is a 4-needle (convertible to 3-needle), flatbed, longitudinal feed double chainstitch machine. It is specifically engineered to handle medium-to-heavy weight fabrics, making it the premier choice for sewing waistbands on jeans, work pants, and uniforms. The "P" in the model name signifies the Integrated Rear Puller, which ensures that even the thickest denim layers are fed through the machine with perfect synchronization, preventing slippage, puckering, or uneven seams.


    • Denim & Workwear: Attaching waistbands to jeans, overalls, and heavy-duty trousers.
    • Lap Seaming: Creating structural felled seams on side-seams of heavy pants.
    • Tape Attachment: Sewing heavy-duty reinforcement tapes onto bags or uniforms.
    • Activewear: Multi-row decorative or structural stitching on heavy knits.
    • 4-Needle Chainstitch System: Provides ultra-strong, flexible seams that move with the fabric—ideal for high-stress areas like waistbands and lap seams.
    • Heavy-Duty Rear Power Puller: A synchronized flat puller system assists the feed dog, ensuring consistent stitch length and smooth material flow on bulky or multi-layered seams.
    • Longitudinal Feed Mechanism: Unlike transverse machines, the DLR series feeds material straight through, providing the stability needed for long, straight runs on trousers and heavy apparel.
    • Double Chainstitch (ISO 401): Produces a secure stitch that does not require a bobbin, significantly increasing productivity by allowing for continuous sewing from large thread cones.
    • Precision Needle Gauge: Standard 1/4" - 1" - 1/4" configuration allows for professional-grade multi-row stitching in a single pass.
    • Simplified Maintenance: Features an easy-access looper system and a robust lubrication design intended for 24/7 industrial environments.

    No of Needles: 4

    • No of Thread: 8
    • Needle Type: TVx5 (21), TVx5 (130)
    • Gauge: 1/4-3/4-1/4, 1/4-1-1/4, 3/16-1-3/16
    • No of Stitch: 7~16
    • Presser Foot Lift: 10mm
    • Needle Bar Stroke: 34mm
    • Max Speed: 4500 spm

    DOWNLOADS:

    Instruction Manual & Parts Book - Kansai Special DLR-1503P

    U.S. WARRANTY:

    90 Days labor on defects in materials and workmanship.

    ** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

    DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

    JUKI DDL-8700 FAQs

    What kind of needles do you use in the DDL-8700?

    The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

    Where does the machine oil go?

    A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

    What kind of oil does this machine require?

    You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

    What size table can I get with this machine?

    Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

    Does the DDL 8700 make buttonholes?

    No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
