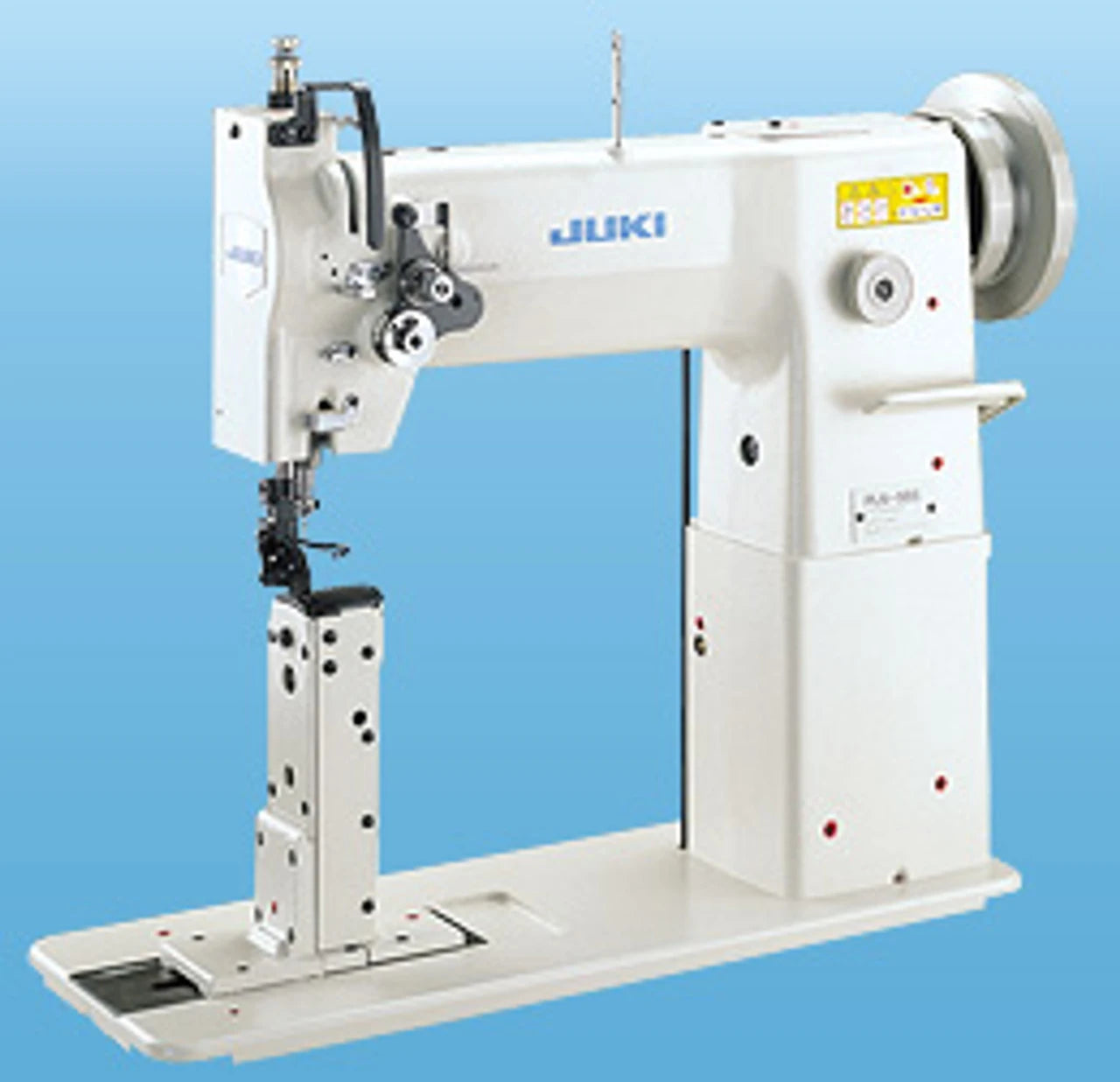

JUKI PL-980 High-Speed Post-Bed Lockstitch Industrial Sewing Machine

JUKI PL-980 High-Speed Post-Bed Lockstitch Industrial Sewing Machine

PL-981

1 or 2-Needle System with Vertical-Axis Hook, Table, and Servo Motor

$5,199.99
$5,199.99 Market price:
Sale Sold out
Choose Model
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • FAQ

JUKI PL-980 Series

is designed to handle complex, three-dimensional shapes that flatbed machines cannot accommodate. Its slim post-bed design allows operators to navigate tight curves, corners, and tubular assemblies with ease. Equipped with a high-performance vertical-axis hook and a powerful feed mechanism, the PL-980 delivers consistent, high-quality seams on leather, vinyl, and synthetic materials. This complete workstation includes an industrial table and a high-torque servo motor for maximum speed control.

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the PL-980 Series. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.

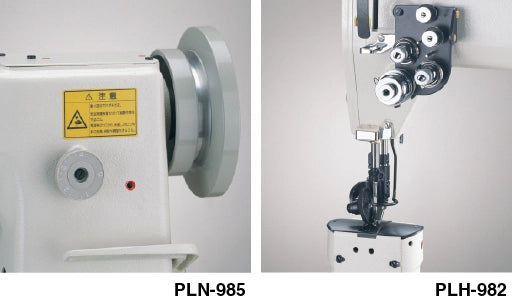

This machine comes in 3 options:

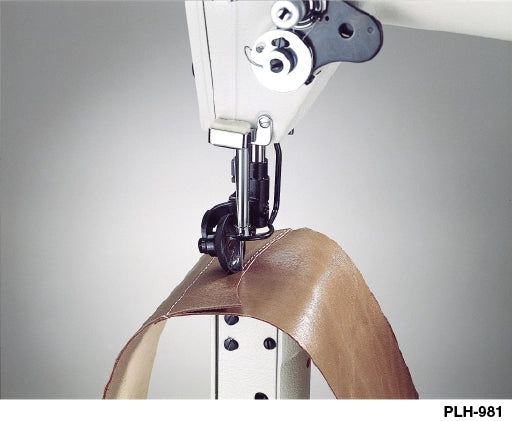

  • PLH-981 - 1 Needle Bottom- Feed
  • PLH-982 - 2 Needle Bottom - Feed

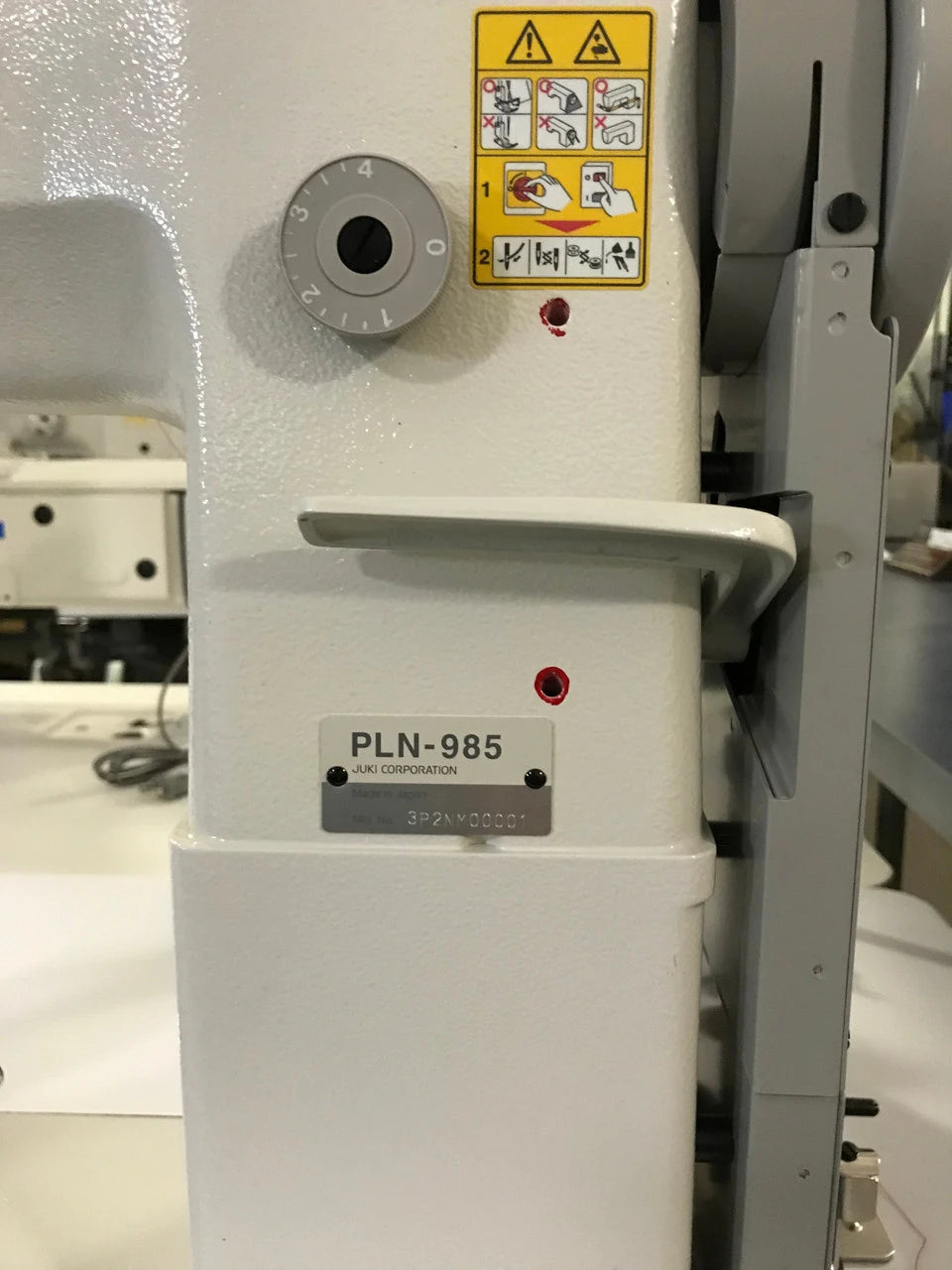

  • PLN-985 - 1 Needle Needle - Feed
  • Slim Post-Bed Design: The vertical post provides a narrow sewing surface, allowing for the easy rotation of three-dimensional products like boots, bags, and automotive headrests.
  • Vertical-Axis Large Hook: Features a high-capacity hook system that ensures stable thread tension and reduces the frequency of bobbin changes during production.
  • Driven Roller Feed (Optional/Model Dependent): Some subclasses feature a driven roller presser foot, which provides excellent maneuverability on slippery materials and tight curves without marking the fabric.
  • Needle-Feed Mechanism: Ensures that the needle and feed dog move in synchronization, preventing material shift and guaranteeing uniform stitch lengths even on multi-layered assemblies.2
  • High-Speed Performance: Capable of operating up to 2,500 stitches per minute, significantly increasing throughput in professional manufacturing environments.
  • Adjustable Stitch Length: A simple dial mechanism allows for quick adjustments to the stitch pitch, providing versatility for both structural and decorative stitching.
  •  Feed System:
    PLN-985     - Needle FeedPLH-981 / PLH-982 - Bottom - Feed
  • Max. Sewing Speed:  2,500 Stitches per Minute
  • Max. Stitch Length:  4mm
  • Needle Bar Stroke:
  • Lift of Presser Foot By Hand:
    PLN-985     -6.5mmPLH-981 / PLH-982 - 7mm
  • Lift of Presser Foot By Knee:PLN-985 - 9mmPLH-981 / PLH-982 - 10mm
  • Thread Take-up:  Slide Type
  • Hook:  Vertical-axis
  • Needle Gauge:
    PLH-982     - 1.6mm
  • Needle (at time of delivery):
    PLN-985     -DPx5(#16) #16~#21PLH-981 / PLH-982 - DPx5 (#18) #16~ #21
  • Thread:  #40~8, B33-B92, Nm =90/3~ 30/3
  • Lubrication:  By an oiler
  • Lubricating Oil:  JUKI New Defrix Oil No. 1 (equivalent to ISO VG7)
  • Post Height:
    PLN-985     - 179mmPLH-981 / PLH-982 - 178mm
  • Bed Size:  517mm x 178mm
  • Weight of the machine head:
    PLN-985     - 40kgPLH-981 / PLH-982 -36kg
  • Footwear: Closing seams and decorative stitching on boots, sneakers, and dress shoes.
  • Automotive: Sewing headrests, armrests, and complex interior trim panels.
  • Bags & Luggage: Assembly of gussets, pockets, and curved leather panels.
  • Sporting Goods: Gloves, protective padding, and specialized athletic gear.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges are necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES, THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
