JUKI NA-11 Series 1-needle Top and Bottom-feed Lockstitch Machine with Double-capacity Hook With Table and Direct-drive Motor

SKU:NA-11

$1,398.99

$1,398.99 Market price:

Sale Sold out

Head Only (No Table) No, Thank You. Yes, Please.

Delivery within 3-5 working days

View full details

Description
Features
Specifications
Manuals & warranty

JUKI NA-11 Series

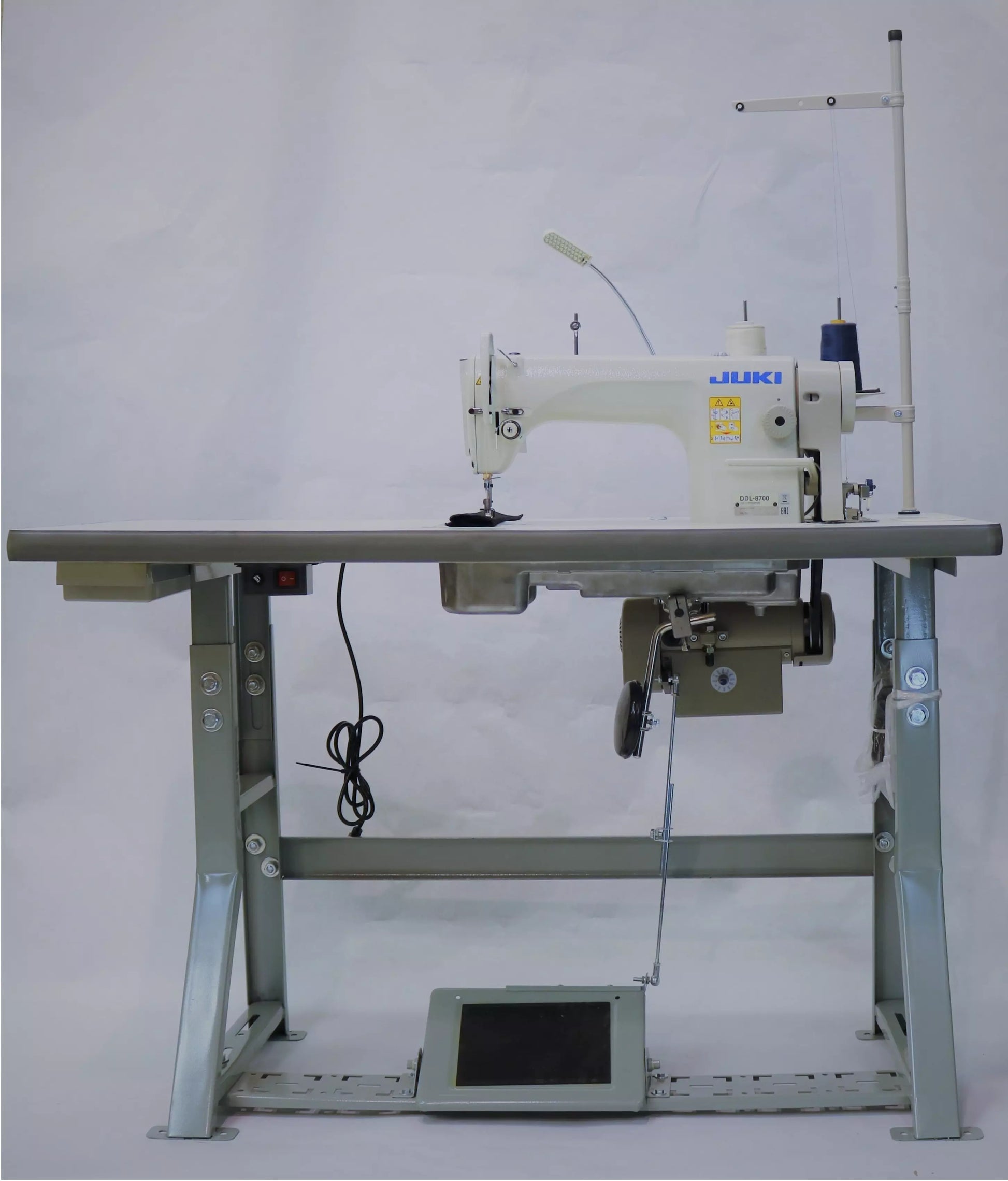

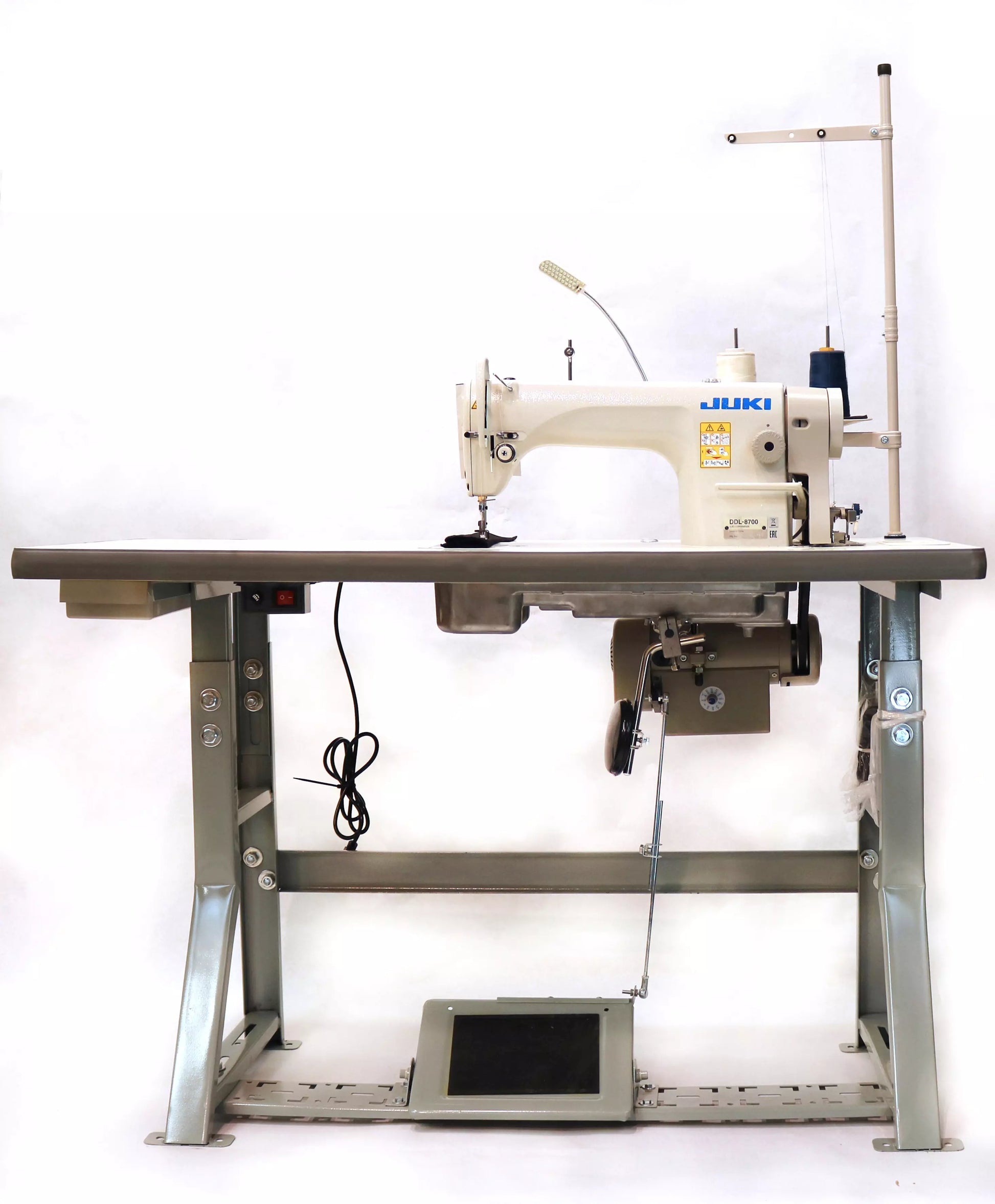

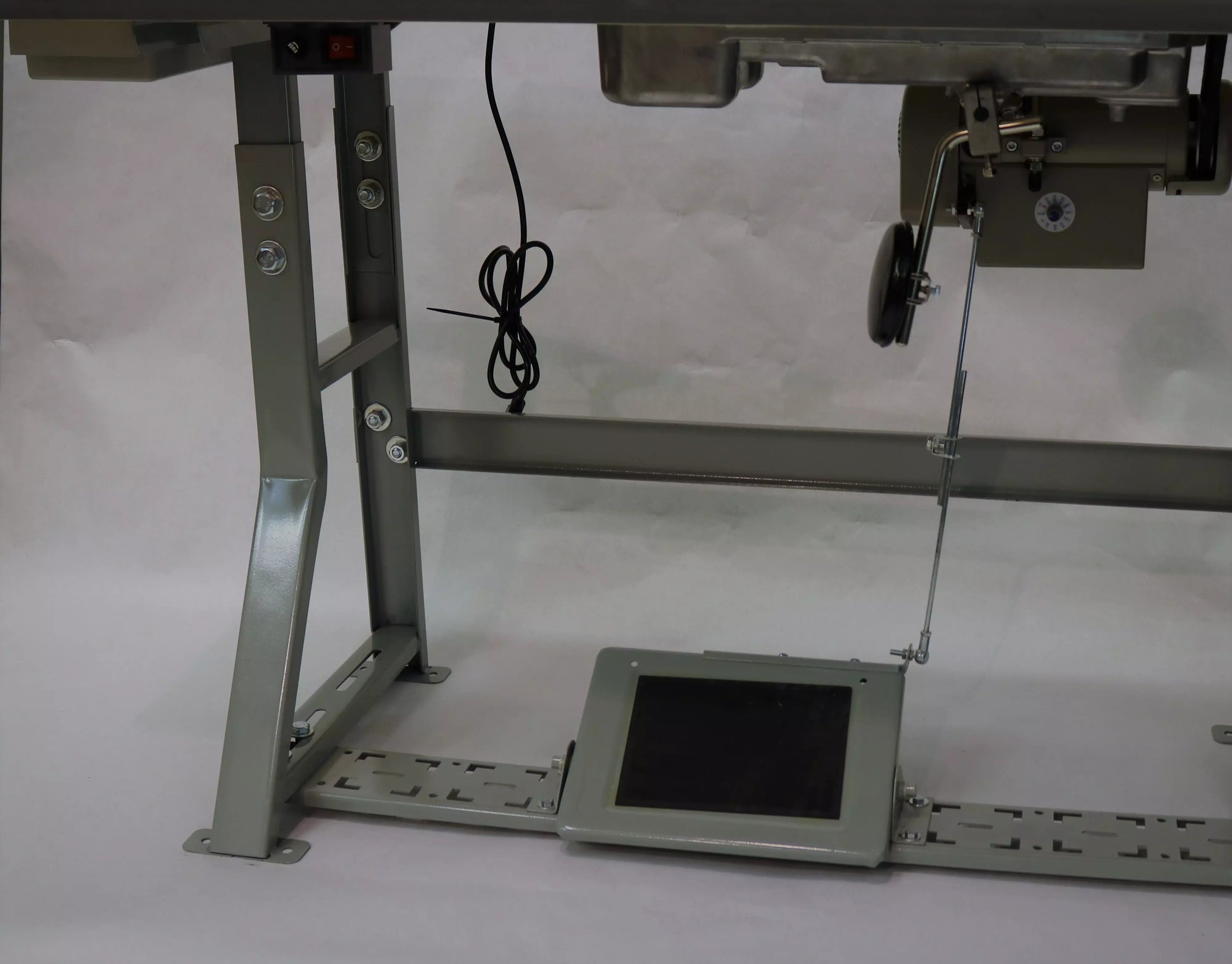

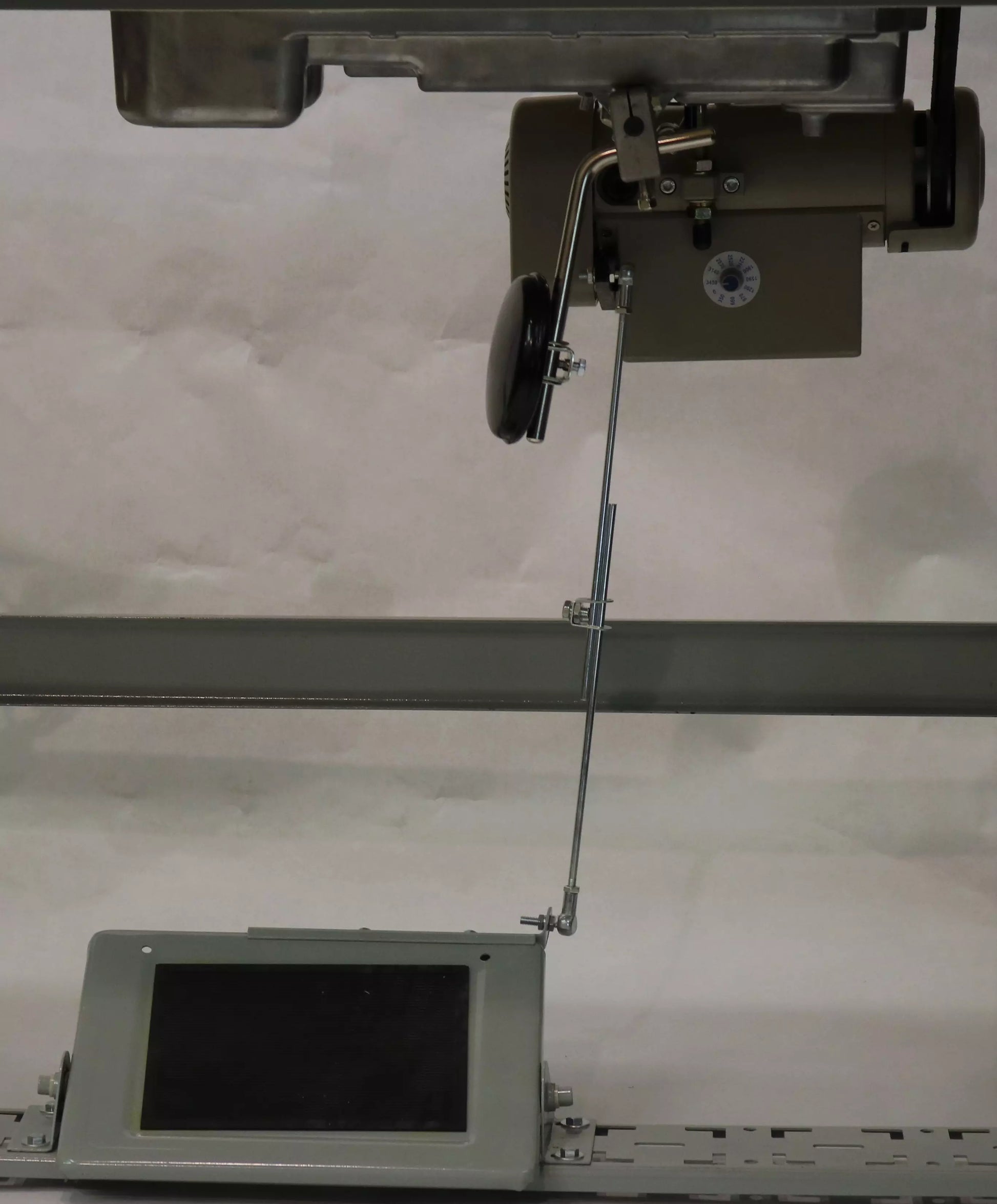

JUKI NA-11 Series 1-needle Top and Bottom-feed Lockstitch Machine with Double-capacity Hook Comes With Table, Legs, Direct Drive Motor and LED Lamp

Are you a home sewer considering moving from a domestic sewing machine to something that can handle larger projects like quilts? Or, are you looking for a new sewing machine for your business?

Professional shops, design schools, and home sewers interested in a sewing machine that handles straight lockstitching for as much as a half-inch of fabric will appreciate the JUKI DDL-8700. Solidly built, this machine works quickly with consistent stitching, making anything you sew look professional and well-made.

Get Ready to Fall in Love with Your New DDL 8700

Despite being a high-powered industrial machine, the servo motor significantly reduces noise. With smooth, fast, and quiet stitching, you can easily sew for more extended periods and complete more significant projects.

Want to slow down that high-speed stitch? Simply adjust the servo motor for a slower speed whenever needed.

Moreover, this high-shank machine is compatible with a wide range of pressure feet, allowing you to expand its functionality effortlessly. By changing the presser foot, you can easily add features like ruffling, gathering, bias, elastic, and zipper installation. With over 200 presser feet available, many of which are high-shank (and high-shank adapters for snap-on feet), the possibilities are endless.

Once you are familiar with the 8700, you'll understand why countless JUKI buyers swear by their machines.

JUKI DDL-8700 MACHINE FEATURES:

The JUKI DDL-8700’s low tension sewing mechanism flexibly responds to a wide variety of fabrics and produces a beautiful seam with uniform quality.
Improved maintainability is guaranteed on the upgraded machine head.
Increase productivity with the presser foot with a higher lift, a light touch stitch dial and throat plate with marker groves to assist with seam allowance precision.

MACHINE SPECIFICATIONS:

Application: Medium-weight
Max. sewing speed: 5,500 Stitches per Minute
Max. stitch length: 5mm
Needle bar stroke: 30.7mm
Lift of the presser foot by hand: 5.5mm
Lift of the presser foot: 13mm
Needle (at the time of delivery): DB×1 (#14) #9~#18 / 134 (Nm90)
Bobbins: #270010
Feed dog: 4-row (3-row)
Hook: Automatic-lubricating full-rotary hook
Lubrication: Automatic
Lubricating oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Weight of the machine head: 28kg

DOWNLOADS:

Safety Tips for the DDL-8700

Always turn off the machine before threading or doing anything that could cause injury, such as threading, oiling, changing a needle, or installing a bobbin for sewing.

The 8700 has a finger guard on the shaft to prevent injury and needle breakage. If you’re having trouble threading the machine, we suggest getting a pair of long tweezers to help.

Keep your hands, hair, and anything else that could become caught away from the machine's bobbin hook, needle area, and other moving parts.

Continuously operate the 8700 with a whole pan of oil. Check your machine’s oil pan regularly before and after use to ensure smooth operation and prevent damage.

And, of course, read the accompanying instruction manual, safety manual, and setup sheet with your machine.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.
