JUKI MS-3580 Feed-off-the-Arm 3-Needle Chainstitch Machine Industrial Sewing Machine with Table and Motor

JUKI MS-3580 Feed-off-the-Arm 3-Needle Chainstitch Machine Industrial Sewing Machine with Table and Motor

MS-3580_0SN

High-Efficiency Lap Seaming System with Integrated Power Puller

$9,995.95
$9,995.95 Market price:
Sale Sold out
Choose Model
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI MS-3580 Series

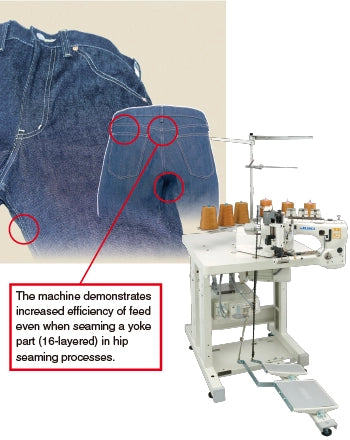

is built for the "inside seam" of jeans and other heavy-weight tubular articles. Featuring a 3-needle, 6-thread double chainstitch system, it provides unmatched strength and elasticity in structural seams. The machine is renowned for its ability to handle 16-ply, 14 oz denim (such as hip-seaming yokes) without sacrificing stitch quality. With its integrated rear puller and automatic thread-handling technology, it delivers consistent, professional results even at speeds up to 4,500 RPM.

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the MS-3580 Series. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.

This machine comes in 2 options:

  • MS-3580S-1SN: With differential feed
  • MS-3580S-0SN: Without differential feed
  • Denim Apparel: In-seams and out-seams for jeans and denim jackets.
  • Workwear: Heavy-duty uniforms, overalls, and utility trousers.
  • Heavy Textiles: Canvas bags, tents, and industrial work clothes.

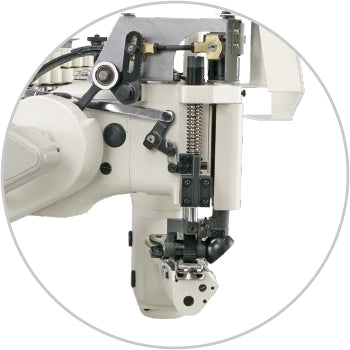

  • Powerful One-Way Clutch Puller: The rear puller mechanism ensures consistent material feed, preventing slippage and uneven stitching when handling heavy, multi-layered sections.
  • Feed-off-the-Arm Design: The slim arm profile allows for easy maneuvering of tubular items like pant legs and jacket sleeves, streamlining the lap seaming process.

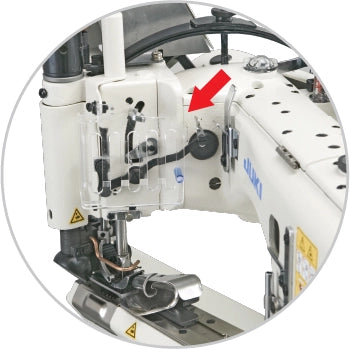

  • Automatic Thread Take-up Adjustment: The thread take-up amount is automatically calibrated based on the presser foot height, ensuring perfectly uniform stitches regardless of material thickness.

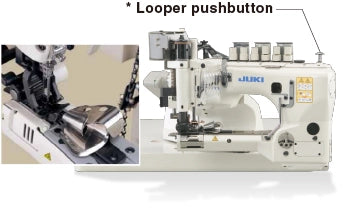

  • User-Friendly Looper Threading: Features a looper pushbutton that lowers the looper tip, allowing the operator to thread the machine quickly and easily.

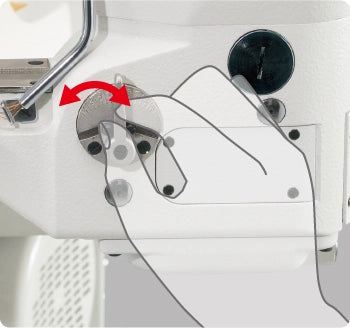

  • Real-Time Differential Feed (1SN Models): A conveniently located lever on the front face allow for adjustments during sewing to effectively prevent fabric slippage between plies.
  • Safety-First Construction: Mechanical parts and the feed mechanism are protected by covers to ensure operator safety during high-speed production.
  • Application:  Medium- to heavy-weight: jeans, denim jackets, work uniforms, etc.
  • Max. sewing speed:  4,500sti/min
  • Needle gauge:  6.4mm, 7.2mm
  • Stitch length:  2.1～3.6mm (standard 3.2mm)
  • Needle:  UY130GS (standard) / Nm140 (#22)
  • Feed adjusting method (main feed):  Slide-type stitch-length adjusting method
  • Top feed roller width:  11.9mm
  • Feed adjusting method(differential feed): MS-3580S-1SN - Lever adjusting method MS-3580S-0SN - Without the differential feed capability
  • Installation method:  To be installed on the table using an auxiliary drive assembly MT03

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges are necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES, THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
