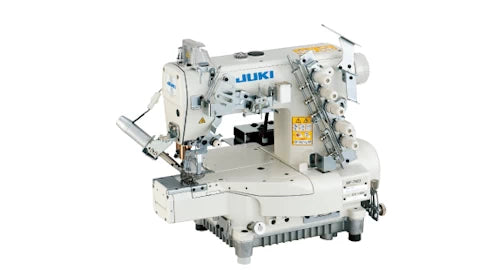

JUKI MF-7923-U11-B64 Cylinder-Bed Coverstitch Machine 3-Needle, High-Speed, Top & Bottom Coverstitch Industrial Machine

JUKI MF-7923-U11-B64 Cylinder-Bed Coverstitch Machine 3-Needle, High-Speed, Top & Bottom Coverstitch Industrial Machine

MF7923U1164

$6,999.95
$6,999.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI MF7923U1164

is a premier industrial solution for hemming and decorative stitching on tubular garments. Engineered in Japan, it is the industry standard for finishing circular items like T-shirt sleeves, necklines, and activewear cuffs.

The "U11" subclass is specifically optimized for universal hemming, providing incredible stitch consistency across various knit weights. With its high-speed capability and forced lubrication system, this machine is built to handle 24/7 production cycles while maintaining a soft, stretchable seam that feels smooth against the skin.

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the DDL-8700. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.




  • Small Cylinder Bed: The narrow circumference allows for easy manipulation of tubular parts that are impossible to sew on a standard flatbed.
  • Top & Bottom Coverstitch: Includes a top spreader to create decorative and functional cover stitches on both sides of the fabric simultaneously.
  • Micro-Lifter Mechanism: Standard-equipped to slightly lift the presser foot, preventing material slippage and protecting delicate or high-stretch fabrics.
  • Advanced Lubrication: Features a forced-circulation system with an integrated oil filter to prevent staining and ensure mechanical longevity at high speeds.
  • Adjustable Differential Feed: Fine-tune the feed ratio via a simple lever to prevent puckering on thin knits or waving on heavy performance fabrics.
  • Needle Bar Stroke Adjustment: Easily adjust the needle bar stroke to accommodate different material thicknesses without sacrificing stitch quality.



  • Stitch Type: 2-needle/3-needle top and bottom covering stitch
  • Needle: UY128GAS (#10S) #9~#12S
  • Lift of the presser foot: 5mm (with top and bottom covering stitch), 8mm (with bottom covering stitch)
  • Stitch pitch dial: By dial
  • Differential feed adjustment: By micro-adjustment mechanism
  • Lubrication: Automatic
  • Lubricating oil: JUKI Machine Oil 18 (equivalent to ISO VG18)
  • Feed dog inclination adjustment: Provided as standard
  • Micro-lifter: Provided as standard
  • Needle gauge (mm): 3.2, 4.0, 4.8, 5.6, 6.4
  • Needle bar stroke converting function:
    Provided as standard: 31mm at the time of delivery
    When sewing a heavy-weight material: 33mm
  • Silicon oil tank for needle tip and needle thread: Provided as standard
  • Cartridge oil filter: Provided as standard
  • Power requirement /Power consumption: Single-phase 100~120V / 200~240V
  • Weight of the machine head: 41kg (without device)
  • Apparel: Hemming sleeves and bottom openings of T-shirts and polo shirts.
  • Activewear: Finishing neckbands on sports jerseys and compression gear.
  • Intimate Apparel: Soft, durable seams for high-end underwear and base layers.
  • Children's Wear: Perfectly suited for the small openings found in infant and toddler clothing.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - JUKI MF7923U1164 Cylinder-Bed Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
