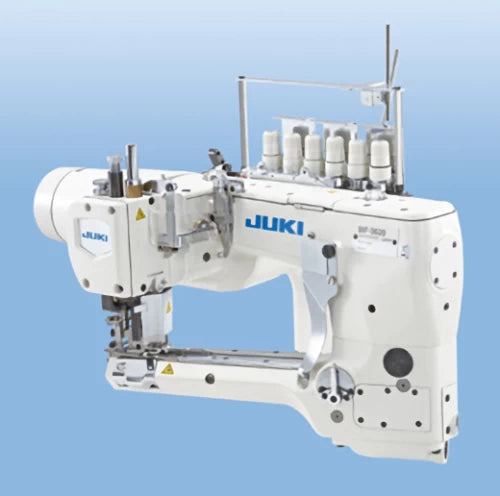

JUKI MF-3620U 4-Needle Feed-off-the-arm Flatseamer Sewing Machine

JUKI MF-3620U 4-Needle Feed-off-the-arm Flatseamer Sewing Machine

MF-3620U300B60B

High-Performance Top and Bottom Coverstitch System with Table & Servo Motor

$12,999.99
$12,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty

JUKI MF-3620U300B60B

is a highly specialized industrial machine designed for the most demanding applications in the apparel industry. This 4-needle, feed-off-the-arm flatseamer creates a perfectly flat, "butt-joint" seam that eliminates bulk and prevents skin irritation. It is the gold standard for producing high-quality swimwear, athletic leggings, and base layers. Engineered with JUKI’s anti-oil-leak technology and a high-speed direct-drive system, it ensures your garments remain stain-free while maintaining maximum throughput.

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the DDL-8700. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.

About MF-3620U300B60B

The sewing machine is provided as standard with a micro-lifter. The overlapped amount of the materials is adjustable by means of a presser foot shoes(L200 type). Designed for upgraded safety and security. Damage by the feed dog is reduced.

  • Genuine Flatseam (Butt-Joint): Joins two pieces of fabric edge-to-edge without overlapping, creating a seam that is smooth on both the inside and outside of the garment.
  • Feed-off-the-arm Design: The slim, tubular arm allows operators to easily sew small-diameter items like sleeves, leg cuffs, and children’s wear with ease.
  • Advanced Oil Leak Prevention: Features a specialized frame structure and forced circulation system in the needle bar and looper areas to ensure zero oil stains on high-value fabrics.
  • High-Speed Productivity: Reaches a maximum sewing speed of 4,200 sti/min, making it one of the fastest flatseamers available for high-volume production.
  • Direct-Drive Efficiency: The integrated servo motor provides instant start/stop response, reduced vibration, and significantly lower energy consumption compared to traditional belt-drive systems.
  • Dual-Edge Trimmers: Equipped with a fabric trimmer that cuts the edges of both pieces of fabric simultaneously before sewing to ensure a perfectly flush flatseam.
  • Application: Light- to heavyweight (knit)
  • Stitch Type: 4-needle, flat seamer, top and bottom cover stitch (607)
  • Max. Sewing Speed: 4,200sti/min
  • Stitch Length: 1.6~2.5mm (standard 2.1mm)
  • Needle Gauge: 5.2mm, 6.0mm
  • Needle Bar Stroke: 30mm
  • Needle: FL × 118GCS (#10S) #9S~#12S
  • Retainer Needle: FLG-8 #8
  • Lift of the presser foot: 6.5mm
  • Differential Feed Ratio: 1:0.7~1:1.5
  • Differential Feed Adjustment: By lever
  • Lubrication: Automatic (frame: minute-quantity lubrication)
  • Lubricating Oil: JUKI New Defrix Oil No.2 (equvalent to ISO VG32)
  • Power Requirement: 3-phase 200V / 300VA
  • Weight of Machine Head: 26.5Kg

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
