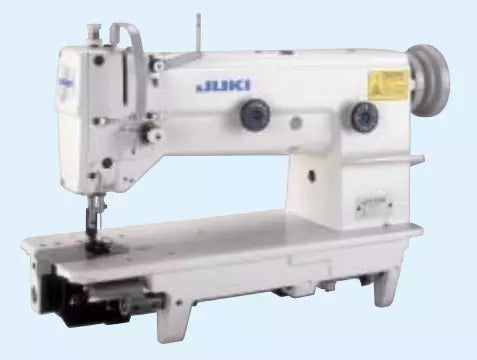

Juki LZH-1290 High-Speed Zigzag Industrial Sewing Machine

Juki LZH-1290 High-Speed Zigzag Industrial Sewing Machine

LZH-1290

Single Needle, Lockstitch with Large Hook, Table, and Servo Motor

$4,699.00
$4,699.00 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Juki LZH-1290

is a powerhouse designed for industries that demand both strength and aesthetic precision. Featuring a newly incorporated triangular cam, the machine ensures the needle always enters the material at a perfect right angle, preventing "needle sway" even at high speeds. This complete package includes a heavy-duty industrial table and a high-torque, energy-efficient Servo Motor for total control over every stitch.

  • Enhanced Zigzag Width: Offers an 8mm standard zigzag width, which is easily adjustable up to 10mm via a front-mounted dial for decorative or structural wide-stitch applications.
  • Triangular Cam Technology: Maintains uniform thread tension regardless of needle position, resulting in beautifully finished stitches at high speeds of up to 2,000 SPM.
  • Horizontal-Axis Double-Capacity Hook: The large hook accommodates "M" style bobbins, reducing bobbin changes by half—an essential feature when using thick industrial threads.
  • Superior Presser Foot Lift: Provides a high clearance of 14mm (by knee), making it easy to maneuver thick leather shoe uppers or multi-layered assemblies.
  • Safety & Precision: Designed with a link-type thread take-up and an automatic oiling system for the hook to ensure long-term mechanical reliability.
  • Energy-Saving Servo Motor: Provides silent operation and adjustable speed control, consuming up to 90% less power than traditional clutch motors.
  • Max sewing speed: 2,000rpm
  • Max stitch length: 6mm
  • Zigzag width: Max. 8mm (adjustable to 10mm)
  • Zigzag width adjustment method: by dial
  • Needle: SY1906 (Nm100) Nm90～Nm110
  • Needle bar stroke: 35mm
  • Presser foot lift: 6mm by hand, 14mm by knee
  • Thread take-up: Link type
  • Hook: Horizontal-axis full-rotary double-capacity hook
  • Needle: SY1906 (Nm100) Nm90～Nm110
  • Thread: #50～#8, B33～B92, Nm=120/3～30/3
  • Lubrication: By an oiler (hook: automatic)
  • Lubricating oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Distance from needle to machine arm: 295mm

The Juki LZH-1290 is the preferred choice for manufacturing durable, high-end goods:

  • Footwear: Specifically optimized for sports shoes, leather shoe uppers, and decorative stitching on boots.
  • Leathercraft: Handbags, wallets, and accessories requiring wide zigzag reinforcement.
  • Marine & Canvas: Sewing sails, boat covers, and heavy-duty outdoor gear.
  • Upholstery: Joining heavy fabrics and leather for furniture and automotive interiors.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
