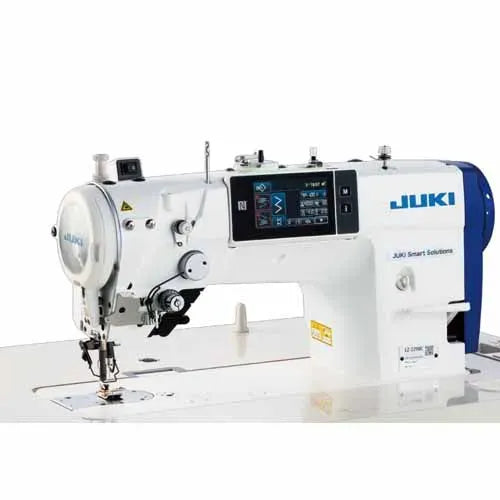

JUKI LZ-2290CS-7 Computer-Controlled High Speed Single Needle Zigzag Industrial Sewing Machine

JUKI LZ-2290CS-7 Computer-Controlled High Speed Single Needle Zigzag Industrial Sewing Machine

LZ-2290-7

Digital Direct-Drive Lockstitch with Automatic Thread Trimmer, Table, and Motor

$8,799.95
$8,799.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LZ-2290-7

is a high-speed, direct-drive zigzag machine designed for manufacturers who demand versatility and high-end stitch quality. By eliminating the need for mechanical cam changes, the Computerized Control System allows you to switch between standard zigzag, 2-step zigzag, 3-step zigzag, crescent, and blind stitching at the touch of a button. Featuring an integrated motor and the advanced CP-180 operation panel, this machine provides incredible torque with minimal noise and vibration, making it the most sophisticated zigzag solution on the market.

  • Intimate Apparel: Lingerie, bras, and lace attachment where delicate zigzagging is required.
  • Sportswear: Functional seams on swimwear, cycling jerseys, and activewear.
  • Menswear: Topstitching on jackets and labels.
  • Medical Gear: Zigzag stitching on orthopedic braces and specialized bandages.

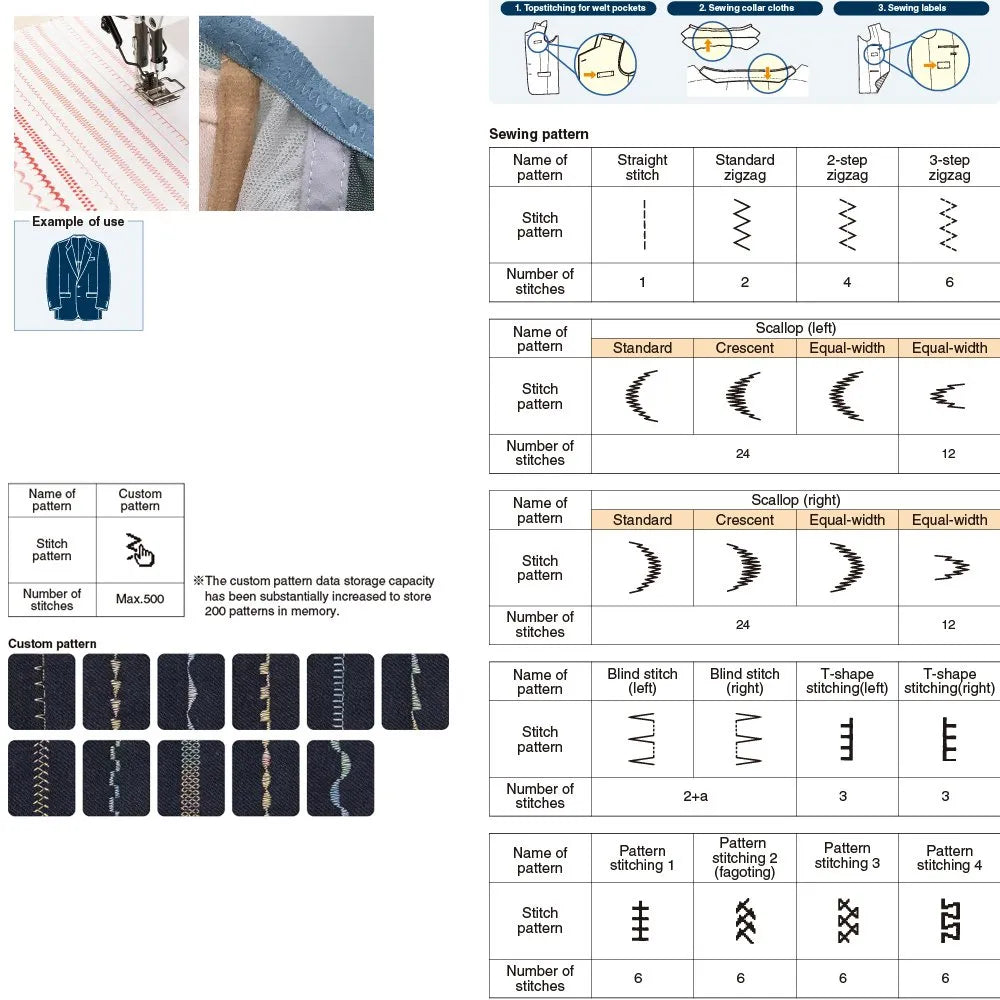

  • Full Computerized Stitch Control: No more manual cams. Access 20 standard patterns and store up to 200 custom patterns via the digital panel, including custom stitch widths and shapes.3
  • Integrated Direct-Drive Motor: The motor is mounted directly to the main shaft, ensuring instant start/stop responsiveness, 70% energy savings, and high needle penetration power.
  • Rotary Active Tension: Digital thread tension control allows for different settings to be applied at different points of the zigzag, preventing puckering and bird-nesting on difficult fabrics.
  • Automatic Thread Trimmer (-7): Equipped with high-speed automatic upper and lower thread trimming to maximize productivity and minimize thread waste.
  • Dry Head Technology (Semi-Dry): The needle bar and frame are treated with a specialized surface coating and solid grease lubrication to prevent oil stains on high-end fabrics.
  • Increased Zigzag Width: Capable of producing a wide zigzag up to 10mm (depending on the stitch type), providing more decorative and functional flexibility.
  • Model : LZ-2290CS-7 (Semi-Dry Head)
  • Max. Sewing Speed : 5,000 stitches per minute
  • Max. Zigzag Width : 8 mm (Standard) / up to 10 mm (Custom)
  • Max. Stitch Length : 5.0 mm
  • Needle System : 134R / DP×5 (Nm70 to Nm110)
  • Presser Foot Lift : 5.5 mm (Hand) / 10.0 mm (Knee)
  • Hook Type : Horizontal-Axis Rotary Hook (Titanium-coated)
  • Number of Patterns : 20 Standard / 200 Custom Memory
  • Power Requirement : 110V/220V Single Phase

DOWNLOADS:

<h3>ACCESSORIES:</h3>
<ul><li>Hemmer foot</li><li>Zipper foot</li><li>Hem feedog</li><li>Hem stem presser foot</li><li>Hem stem needle plate</li><li>Hemmer edge guide</li><li>Buttonhole foot</li></ul>

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
