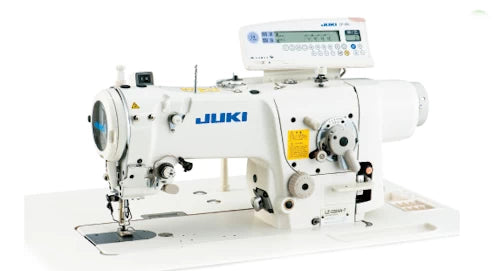

JUKI LZ-2284A Series High-Speed Zigzag Sewing Machine 1-Needle, Lockstitch with Standard 3-Step Changeover Function

JUKI LZ-2284A Series High-Speed Zigzag Sewing Machine 1-Needle, Lockstitch with Standard 3-Step Changeover Function

LZ2284A Series_LZ-2284A_127837282

Complete Unit: Includes Assembled Table, Stand, and Integrated Direct-Drive Servo Motor

$6,489.97
$6,489.97 Market price:
Sale Sold out
Choose Model
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LZ-2284A Series

is a highly versatile zigzag machine designed to maximize production efficiency. Its standout feature is the One-Touch Changeover Function, which allows operators to switch between standard zigzag and 3-step zigzag stitching using a simple lever. This eliminates the need for multiple machines or complex head adjustments when switching garment designs.

Engineered for "soft seams," this machine excels at low-tension sewing, ensuring consistent stitch quality on delicate and stretchable materials like foundation garments, swimwear, and knitwear.

  • One-Touch Pattern Switch: Easily toggle between Standard Zigzag and 3-Step Zigzag patterns via a lever located under the arm. This increases machine utilization across different product lines.
  • Integrated Direct-Drive Motor: The servo motor is mounted directly to the main shaft, offering instant startup, superior stop accuracy, and a significant reduction in noise and vibration compared to belt-driven models.
  • Superior Seam Quality: Thoroughly reviewed thread paths and feed loci allow the machine to produce high-quality "soft seams" even under low thread tension—ideal for skin-contact apparel.
  • Enhanced Feed Mechanism: Features a widened adjustable range for the height and inclination of the feed dog, improving responsiveness to a vast array of fabric weights and textures.
  • Titanium-Treated Hook: Equipped with a DP hook featuring a titanium-treated inner section to prevent heat buildup and ensure longevity during high-speed operation.
  • Micro-Lifter: Standard-equipped to slightly lift the presser foot, preventing material slippage and protecting delicate fabrics from "foot marks."
  • Thread Trimmer:LZ-2284A: Without automatic trimmerLZ-2284A-7: Automatic thread trimmer
  • Stitch System: Standard / 3-step zigzag
  • Stitch Pattern:
  • Max. Sewing Speed: 5,000 sti/min
  • Max. Zigzag width:Standard: 5mm3-Step: 10mm
  • Max. Feeding Amount: 2.5mm
  • Lift of the presser foot:By Hand: 5.5mmBy Knee: 10mm
  • Hook: DP hook (with titanium-treated inner hook)
  • Thread take-up: Rotary type
  • Lubrication: Fully Automatic
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Needle at time of delivery: 134SUK (Nm70)
  • Needle position-changing mechanism: Provided as standard
  • Reverse feed stitching mechanism: Provided as standard
  • Needle throw pattern cam: Grooved cam
  • Intimate Apparel: Lace attaching on bras, panties, and foundation garments.
  • Sportswear: Zigzag seams on swimwear, leotards, and performance knits.
  • Hemming: Decorative and functional hemming on light to medium apparel.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
