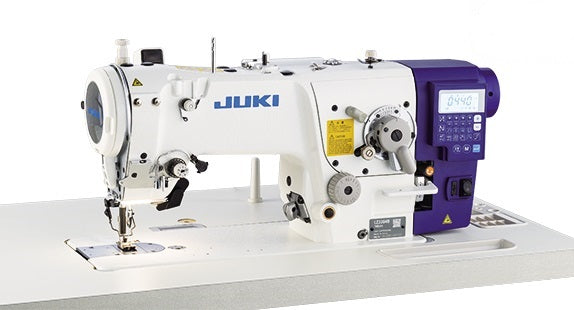

JUKI LZ-2280B Direct-Drive High-Speed Single Needle Zigzag Industrial Sewing Machine

JUKI LZ-2280B Direct-Drive High-Speed Single Needle Zigzag Industrial Sewing Machine

LZ-2280

JUKI LZ-2280 High-Speed 1 Needle Lockstitch Zigzag Stitching Industrial Sewing Machine With Table and Direct Drive

$4,999.95
$4,999.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

JUKI LZ-2280B

represents the pinnacle of zigzag sewing technology, combining versatility with the precision of a Direct-Drive motor system. This machine is designed to produce soft, high-quality seams that remain flexible, making it the premier choice for intimate apparel and foundation garments.

The "B" series features an integrated motor that reduces power consumption by 25% and increases piercing power. With its ability to switch between standard zigzag and two-step/three-step patterns (on specific subclasses), the LZ-2280B offers the stability and speed required for high-volume textile manufacturing without compromising on stitch beauty.

  • Intimate Apparel: Sewing lace, elastic, and decorative seams on bras, panties, and slips.
  • Swimwear & Sportswear: High-stretch seams on spandex, nylon, and performance fabrics.
  • Men's Apparel: Waistband stitching and label attachment for trousers and shirts.
  • Light Leather & Vinyl: Decorative stitching on gloves and small leather accessories.
  • Direct-Drive System: The motor is connected directly to the main shaft, providing near-silent operation, reduced vibration, and instant start/stop response.
  • Soft-Seam Technology: Specialized tension and feed mechanisms produce high-quality, flexible seams that won't snap when stretched—essential for lingerie and sportswear.
  • High-Speed Productivity: Operates at a staggering 5,000 SPM, significantly higher than competitors in the zigzag category.
  • Easy Pattern Adjustment: Simplifies the adjustment of zigzag width and needle throw, allowing for quick changes between different garment styles.
  • Reduced Oil Design: The needle bar and hook area are engineered to prevent oil leakage, protecting delicate white or light-colored fabrics.
  • Integrated LED & Control Box: Includes an easy-to-use control panel for setting speed and needle position, and built-in lighting for a clear workspace.
  • Max Speed: 5,000 SPM (Stitches Per Minute)
  • Max Zigzag Width: 8.0mm (Standard) / 5.0mm (3-step)
  • Max Stitch Length: 2.5mm / 5.0mm (depending on subclass)
  • Needle System: 134R / DP x 5 (#10 to #14)
  • Presser Foot Lift: 10mm (Knee) / 5.5mm (Hand)
  • Hook: High-speed regular rotary hook
  • Lubrication: Automatic (Minute-quantity)
  • Motor: 400W AC Direct-Drive Servo Motor

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2><u>PARTS & ACCESSORIES for the JUKI LZ-2280A(A)</u></h2>
<p><strong>Needles</strong>: 134 SUK<strong><br>Bobbins</strong>:&nbsp;<a href="https://www.goldstartool.com/bobbin-juki-225-96704.htm" target="_blank">Bobbin - JUKI #225-96704</a><strong><br>Bobbin Case:</strong>&nbsp;<a href="https://www.goldstartool.com/bobbin-case-asm-juki-401-25507.htm" target="_blank">Bobbin Case ASM - JUKI #401-25507</a><strong><br>Presser Foot</strong>:&nbsp;<a href="https://www.goldstartool.com/presser-foot-juki-225-48671.htm" target="_blank">Presser Foot - JUKI #225-48671</a><br><strong>Feed Dog</strong>:&nbsp;<a href="https://www.goldstartool.com/feed-dog-juki-225-48119.htm" target="_blank">JUKI #225-48119</a><br><strong>Needle&nbsp;Plate</strong>:<a href="https://www.goldstartool.com/needle-plate-juki-225-48010.htm" target="_blank">&nbsp;Needle Plate - JUKI #225-48010</a><br></p>

PARTS & ACCESSORIES for the JUKI LZ-2280A(A)

Needles: 134 SUKBobbins: Bobbin - JUKI #225-96704Bobbin Case: Bobbin Case ASM - JUKI #401-25507Presser Foot: Presser Foot - JUKI #225-48671Feed Dog: JUKI #225-48119Needle Plate: Needle Plate - JUKI #225-48010

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - JUKI LZ-2280A ZigZag Sewing Machine - Goldstartool.com
