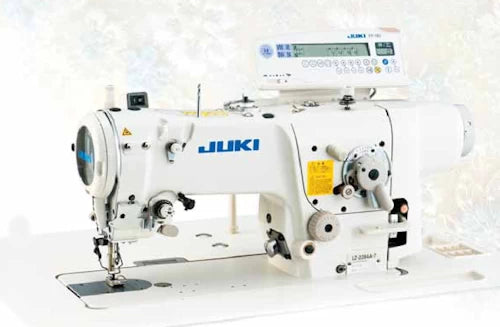

JUKI LZ-2280A Industrial Zigzag Sewing Machine

JUKI LZ-2280A Industrial Zigzag Sewing Machine

LZ-2280A Series

Optimized for Intimate Apparel & Soft Seams (Complete with Table & Motor)

$4,999.99
$4,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LZ-2280A Series

is the industry standard for high-speed zigzag stitching, engineered specifically to produce the "soft seams" required for intimate apparel, foundations, and high-end knitwear. By combining a unique hook-driving shaft offset mechanism with a triangular cam system, this machine ensures consistent stitch quality even under extremely low thread tension.

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the DDL-8700. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.



  • Triangular Cam Mechanism: The needle rocking mechanism utilizes a triangular cam to produce beautifully uniform zigzag stitches with consistent symmetry.
  • Hook-Driving Shaft Offset: An innovative design that places the hook shaft off-center from the needle stroke. This allows the hook to catch the thread reliably regardless of the needle direction, virtually eliminating stitch skipping and thread breakage.
  • Low-Tension Sewing: Specifically optimized to handle ultra-light thread tensions without "double-catching" or irregular stitches, resulting in the soft, non-irritating seams essential for bras, girdles, and lingerie.
  • Micro-Lifter System: Standard feature that allows the presser foot to be held slightly above the material. This prevents material slippage and protects delicate fabrics from presser foot "bruising."
  • Direct-Drive Performance: The integrated servo motor provides 8.6% better energy efficiency than conventional models, increased needle penetration power for multi-layered sections, and near-silent operation.
  • Optimized Feed Locus: The feed mechanism has been lightened using aluminum parts and redesigned to ensure secure fabric handling at the exact moment of needle penetration.
  • LZ-2284A: Without Automatic Thread Trimmer
  • LZ-2284A-7: With Automatic Thread Trimmer
  • Stitch System: Standard / 3-step zigzag
  • Max. Sewing Speed: 5,000sti/min
  • Max. Zigzag Width: 5 mm (standard), 10 mm (3-step)
  • Max. Feeding Amount: 2.5mm
  • Lift of the Presser Foot:By hand: 5.5 mm By knee: 10 mm
  • Hook: DP hook (with titanium-treated inner hook)
  • Thread take-up: Rotary type
  • Lubrication: Fully automatic
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Needle at time of delivery: 134SUK (Nm70)
  • Needle position changing mechanism: Provided as standard
  • Reverse feed stitching mechanism: Provided as standard
  • Needle throw pattern cam: Grooved cam
  • Ladies' Foundations: Brassieres, girdles, and corsetry.
  • Intimate Apparel: Lace attachment and seam finishing for lingerie.
  • Activewear: Decorative stitching and elastic attachment for high-stretch garments.
  • Men's Underwear: Soft-seam hemming and elastic waistbands.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
