Juki LU-2810-7 High-Performance 1-Needle Unison Feed Lockstitch Machine

Juki LU-2810-7 High-Performance 1-Needle Unison Feed Lockstitch Machine

LU-2810X-7

Direct-Drive | Automatic Thread Trimmer | 2.7x Large Hook Capacity

$5,799.95
$5,799.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Manuals & warranty

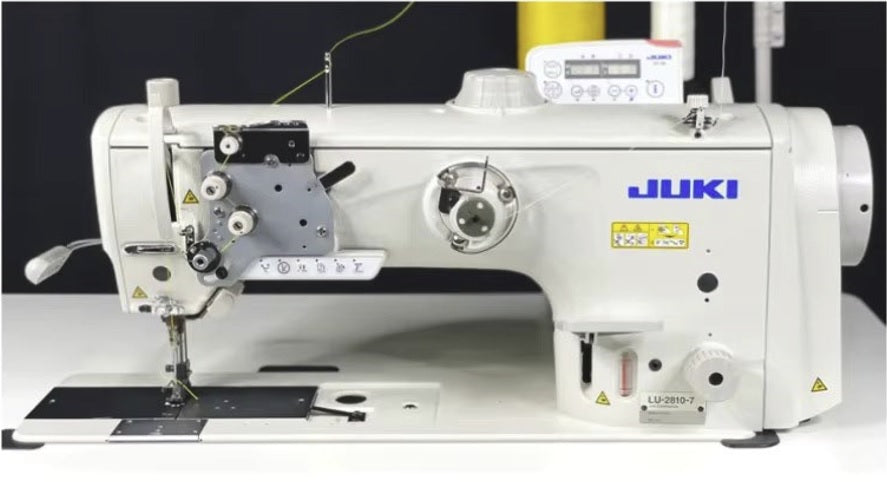

Juki LU-2810-7

is a world-class industrial sewing machine engineered for the most demanding heavy-duty applications. Featuring Juki's legendary Unison Feed (Walking Foot) mechanism, it ensures perfectly synchronized feeding of the needle, presser foot, and feed dog. This prevents material slippage and ensures consistent stitch quality on thick, multi-layered, or "sticky" materials like leather and vinyl.

This "7" series model comes equipped with a Direct-Drive motor and a full suite of automatic functions, including a high-speed thread trimmer. Its standout feature is the 2.7x Large Vertical-Axis Hook, which significantly reduces the frequency of bobbin changes, making it a favorite for high-volume automotive and furniture upholstery.

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the LU-2810X-7. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419 and we’ll be happy to answer everything for you.

  • Unison Feed (Walking Foot): The needle, presser foot, and feed dog move in perfect unison to handle heavy materials without ply-shifting.

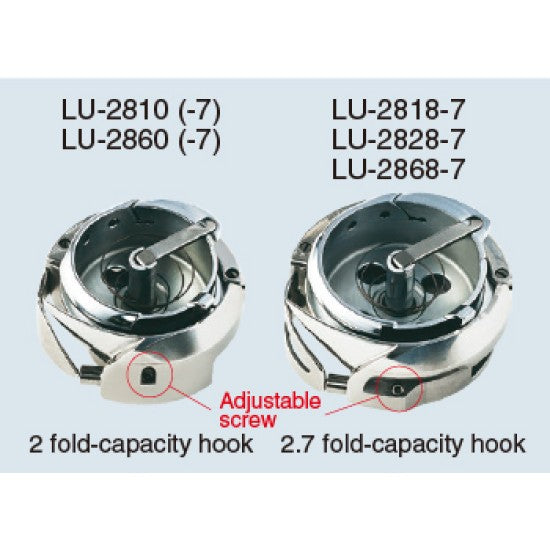

  • 2.7x Large Capacity Hook: The extra-large vertical-axis hook holds 2.7 times more thread than standard hooks, maximizing uptime and production efficiency.
  • High-Torque Direct-Drive Motor: The integrated motor provides instant start/stop response, silent operation, and superior piercing power for thick leather.
  • Automatic Functions: Includes an automatic thread trimmer, auto-backtack, and an automatic presser foot lift for a seamless workflow.
  • High Clearance & Stroke: Features a high needle bar stroke and a high presser foot lift (20mm) to accommodate bulky, multi-layered assemblies.
  • New Lubrication System: A centralized oiling system ensures all internal components are protected, reducing maintenance needs and extending machine life.
  • Digital Control Panel: Easily program stitch counts, backtacking, and speed limits with the integrated CP-180 panel.
  • Application: Medium to Heavy-Weight
  • Max. sewing speed: 3000 spm
  • Max. stitch length: 9mm
  • Lift of the presser foot:By hand 10mmAuto 20mm
  •  Stitch length dial: 1 Pitch dial
  • Hook: Vertical axis 2.7 fold-capacity hook
  • Needle Thread Tension: Double-tension
  • Hook: Vertical axis 2 fold-capacity hook
  • Needle: 135×17 Nm160 (Nm125~Nm180)
  • Needle Gauge (Needle Spacing): 1/4"
  • Lubrication: Semi-dry head automatic (tank system)
  • Thread: #30~#5, B46~B138, Nm=60/3~20/3
  • Oil: JUKI New Defrix Oil #1

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
