Juki LU-2810V-7 Semi-Dry Head Unison Feed Lockstitch Machine

Juki LU-2810V-7 Semi-Dry Head Unison Feed Lockstitch Machine

LU-2810V-7

Direct-Drive | Electric Thread Trimmer | High-Torque Performance

$8,999.95
$8,999.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

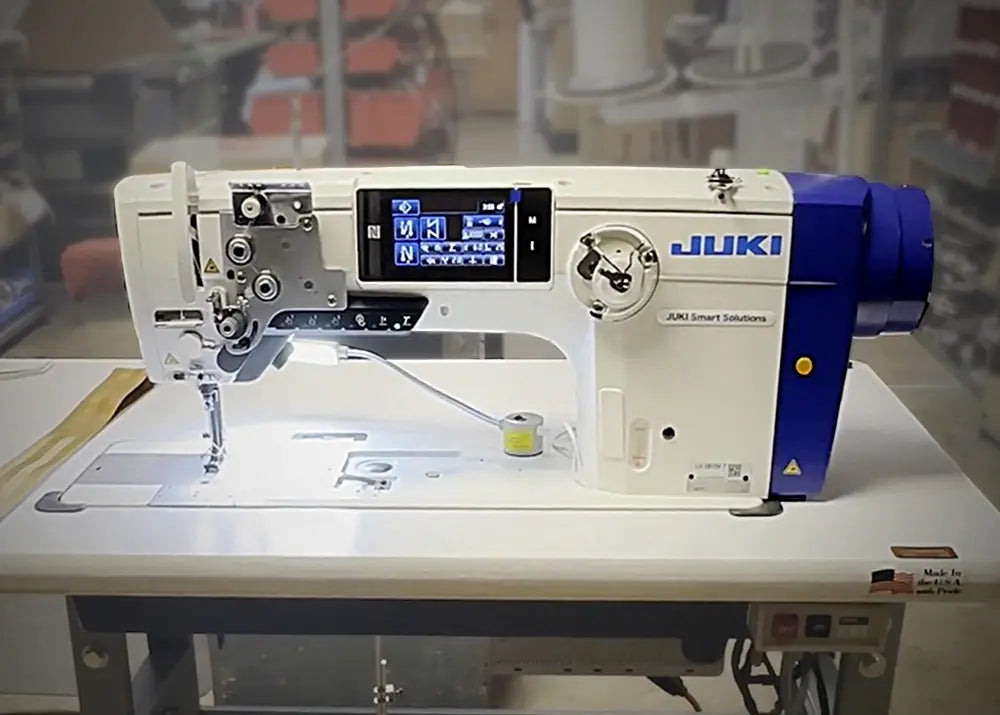

Juki LU-2810V-7

is a high-performance, 1-needle unison feed (walking foot) machine designed for heavy-duty industrial applications where precision and cleanliness are paramount. As part of the prestigious LU-2800 series, the "V" model features a Semi-Dry Head design, which significantly reduces the risk of oil stains on high-end leather and upholstery.

This machine is equipped with an Electric Under-Bed Thread Trimmer, providing a shorter thread tail and a more efficient workflow compared to pneumatic systems. With its integrated high-torque Direct-Drive motor, the LU-2810V-7 offers unmatched piercing power at low speeds and near-silent operation.

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the LU-2810A-7. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419 and we’ll be happy to answer everything for you.

The LU-2810V-7 is the elite choice for luxury manufacturing:

  • High-End Automotive: Clean stitching for luxury leather seats and interiors.
  • Furniture Upholstery: Premium sofas, chairs, and designer leather goods.
  • Luxury Leather Craft: Handbags, briefcases, and designer luggage where oil stains must be avoided.
  • Technical Gear: Heavy-duty covers and safety equipment requiring precise automation.
  • Electric Under-Bed Trimmer: Specifically designed for thick industrial threads, this electric system ensures a clean, short trim every time without the need for an air compressor.
  • Semi-Dry Head Technology: The needle bar and upper sections are lubricated with grease instead of oil, preventing leakage and protecting expensive materials from staining.
  • Unison Feed (Triple Feed): Synchronized movement of the needle, feed dog, and walking foot ensures even the heaviest materials are fed without shifting or bunching.
  • Integrated Direct-Drive Motor: Provides 70% energy savings and instant needle response. The high-torque motor easily handles thick leather and multi-layered assemblies.
  • New Lubrication System: Features a shielded oil tank that keeps oil clean and prevents external leakage.
  • Automatic Productivity Suite: Includes automatic back-tacking, automatic presser foot lift, and programmable stitch counting via the digital control panel.
  • Eccentric Feed Adjustment: The feed dial allows for easy adjustment of the amount of alternating vertical movement, adapting to different fabric thicknesses on the fly.
  • Max Sewing Speed : 3,000 SPM (Stitches Per Minute)
  • Feeding Mechanism : Unison Feed (Walking Foot)
  • Max Stitch Length : 9mm
  • Clearance Under Foot : 20mm (Auto / Knee)
  • Needle System : 135 x 17 (Nm160) / Size 18–24

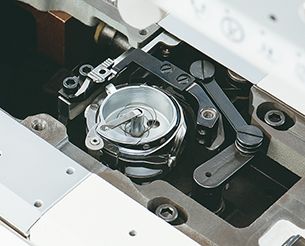

  • Hook Type : Vertical-Axis Large Hook
  • Trimmer Type : Electric Under-Bed Trimmer
  • Lubrication : Semi-Dry (Shielded Oil Tank)
  • Control Panel : Juki CP-180 (Standard)

DOWNLOADS:

No downloads available yet for this machine.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
