JUKI LU-2810A-7 1 Needle Unison Feed Lockstitch with Vertical-axis Large Hook Industrial Sewing Machine With Table and Direct Drive Motor

JUKI LU-2810A-7 1 Needle Unison Feed Lockstitch with Vertical-axis Large Hook Industrial Sewing Machine With Table and Direct Drive Motor

LU-2810A-7

Direct-Drive Unison-Feed Lockstitch with 2.7x Large Hook and Automatic Trimmer

$7,599.95
$7,599.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

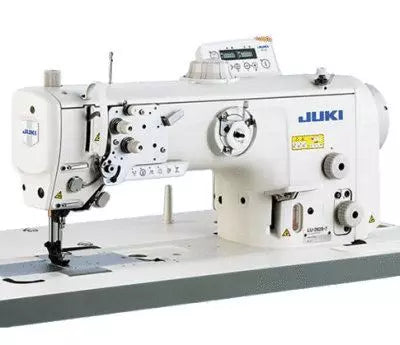

The JUKI LU-2810A-7

is an ultra-modern, single-needle unison-feed (walking foot) machine designed for high-end automotive interiors, furniture upholstery, and heavy-duty bags. It is defined by its High-Torque Direct-Drive Motor, which provides unmatched penetration power while reducing energy consumption by 37%.3 With an expansive 14-inch throat space and a 2.7-fold capacity hook, this machine allows for longer sewing runs with fewer bobbin changes and effortless maneuvering of oversized fabric panels.

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the LU-2810A-7. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419 and we’ll be happy to answer everything for you.

  • Luxury Furniture: Topstitching on sofas, recliners, and large cushions.
  • Automotive & Marine: Car seats, dashboard wrapping, and boat interiors.
  • Safety Gear: Airbags, parachutes, and heavy-duty webbing.
  • Heavy Leather Goods: Luggage, designer bags, and orthopedic appliances.
  • Expanded High & Long Arm: Features a 14-inch (347mm) horizontal clearance and a 5-inch (127mm) height, providing significantly more room for large rolls of leather or bulky upholstery.
  • Direct-Drive System: The high-torque motor is integrated directly into the machine head, resulting in near-instant start/stop response, higher stopping accuracy, and zero belt shavings.
  • 2.7-Fold Capacity Hook: Utilizing a massive vertical-axis hook, this machine holds 2.7 times more thread than a standard hook, drastically reducing downtime for bobbin winding.
  • Full Automation Package: Includes an automatic thread trimmer, auto-lifter (20mm), and automatic backtacking, all controlled via the CP-180 digital panel.
  • Multi-Functional 6-String Switch: Conveniently located at the needle bar, this switch allows one-touch control over reverse feed, stitch length changeover, and walking foot vertical movement.
  • Semi-Dry Lubrication System: A tank-style automatic lubrication mechanism filters oil to remove dust and returns it to the tank, keeping the sewing area clean and reducing maintenance.
  • Dual-Tension Mechanism: Standard on this model, it allows the user to switch between two different thread tensions—ideal for moving from single-ply to multi-layered thick sections without stopping.
  • Application: Medium to Heavy-Weight
  • Max. sewing speed: 3000 spm
  • Max. stitch length: 9mm
  • Lift of the presser foot: By hand 10mmAuto 22mm
  • Needle Thread Tension: Double-tension
  • Hook: Vertical axis 2 fold-capacity hook
  • Needle: 135×17 Nm160 (Nm125~Nm180)
  • Needle Gauge (Needle Spacing): 1/4"
  • Lubrication: Semi-dry head automatic (tank system)
  • Thread: #30~#5, B46~B138, Nm=60/3~20/3
  • Oil: JUKI New Defrix Oil #1

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

JUKI LU-2810A-7 Lockstitch Sewing Machine

Product Showcase - JUKI LU-2810V-7 Industrial Sewing Machine
