JUKI LU-2800 Series 1-Needle Unison-Feed Sewing Machine

JUKI LU-2800 Series 1-Needle Unison-Feed Sewing Machine

SLU-2810

Semi-Dry Direct-Drive Lockstitch System with Table & Servo Motor

$4,999.99
$4,999.99 Market price:
Sale Sold out
Choose Model
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

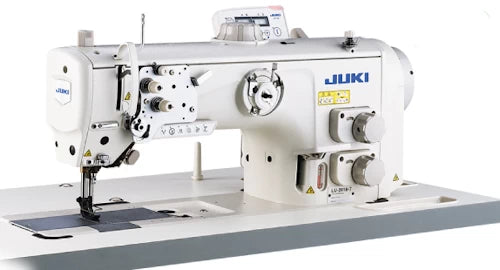

JUKI LU-2800

is a high-end, heavy-duty industrial machine engineered for the most demanding technical textiles. It features a Unison-Feed (Triple Feed) mechanism that ensures the needle, feed dog, and presser foot move in perfect synchronization to handle thick materials like leather, vinyl, and synthetic webbing. Unlike traditional models, the LU-2800 utilizes Semi-Dry technology, eliminating oil stains on your high-value fabrics. With its integrated direct-drive motor, this machine provides a quiet, vibration-free environment with the highest level of torque for heavy-weight penetration

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the LU-2800 Series. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.




  • High-Torque Direct-Drive Motor: The motor is directly connected to the main shaft, providing instant acceleration, stopping accuracy, and significantly higher needle penetration power for thick leather.
  • Semi-Dry Head Technology: Lubrication is restricted to the hook and internal gears, keeping the needle bar and take-up area oil-free to prevent staining of expensive materials.
  • Advanced Unison-Feed Mechanism: The rectangular feed locus ensures consistent feeding of multi-layered materials without gathering or stitch-length variation.
  • Large Vertical-Axis Hook: Equipped with a 2.0x capacity hook (double-capacity) to reduce bobbin changes when using thick industrial threads.

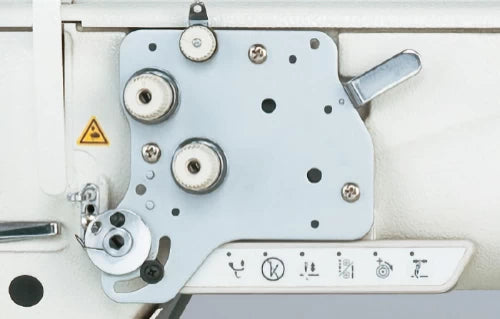

  • One-Touch Functionality: Features a multi-functional 6-string switch near the needle for quick access to backtacking, stitch compensation, and speed adjustments.
  • Automatic Safety Clutch: Protects the hook and timing gears by automatically disengaging if a thread jam occurs
  • Type:LU-2810: 1-NeedleLU-2810-7: 1-Needle with auto trimmerLU-2818AL-7: 1-Needle Vertical axis 2.7 Fold-Capacity Hook with auto thread trimmer (long pitch type)LU-2828A-7: 1-Needle Vertical axis 2.7 Fold-Capacity
    Hook with auto thread trimmer (needle thread roll-in and shorter - thread remaining type)
  • Max. Sewing Speed:LU-2810/LU-2810-7/LU-2818AL-7/LU-2828A-7: 3,000 sti/min
  • Max. Stitch Length:LU-2810/LU-2810-7/LU-2828A-7: 9mmLU-2818AL-7: 12mm
  • Stitch Length Dial:LU-2810: 1 Pitch DialLU-2810-7/LU-2818AL-7/LU-2828A-7: 2Pitch Dial
  • Presser Foot:Auto: 20mmBy Hand: 10mm
  • Auto Lifter:LU-2810: OptionalLU-2810-7/LU-2818AL-7/LU-2828A-7: Provided as Standard
  • Alternating Vertical Movement: 1~9mm
  • Alternating Vertical Movement Adjusting Method: Large Dial
  • DL Device:LU-2810: N/ALU-2810-7/LU-2818AL-7/LU-2828A-7: Provided as Standard
  • Needle Thread Tension:LU-2810: Double TensionLU-2810-7/LU-2828A-7/2818AL-7: Single/Double Tension
  • Hook:LU-2810/LU-2810-7: Vertical axis 2 fold-capacity hookLU-2818AL-7/LU-2828A-7: Vertical axis 2.7 fold-capacity hook
  • Bottom-feed micro-adjustment mechanism: Provided as standard
  • Needle: LU-2810/LU-2810-7/LU-2818Al-7: 135x17 Nm160 (Nm125~Nm180)LU-2828A-7: 134x35 Nm140 (Nm125~Nm180)
  • Thread: #30~#5, B46~B138, Nm=60/3~20/3
  • Lubrication: Semi-dry head automatic (Tank system)
  • One-touch type reverse feed switch:LU-2810: N/ALU-2810-7/LU-2818Al-7/LU-2828A-7: Provided as standard
  • Hand Switch:LU-2810: N/ALU-2810-7/LU-2818Al-7/LU-2828A-7: Multi-functional 6-string switch
  • Safety Mechanism: Provided as standard (reset with the push of a button)
  • Power requirement/power consumption:
    LU-2810/:     N/ALU-2810-7/LU-2818Al-7/LU-2828A-7: Single-phase 100~120V / 200~240V , 3-phase 200~240V / 180VA (with automatic thread trimmer)
  • Machine Head Weight: LU-2810: 56kgLU-2810-7: 61kgLU-2818AL-7: 66kgLU-2828A-7: 62kg
  • Luxury Upholstery: Premium sofas, office chairs, and designer leather furniture.
  • Automotive: Airbags, high-end seat covers, and dashboards.
  • Leather Goods: Professional-grade handbags, luggage, and heavy belts.
  • Industrial Fabrics: High-tech safety gear and protective covers.

DOWNLOADS:

LU2800 Catalog

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - JUKI LU-2810 Lockstitch Industrial Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
