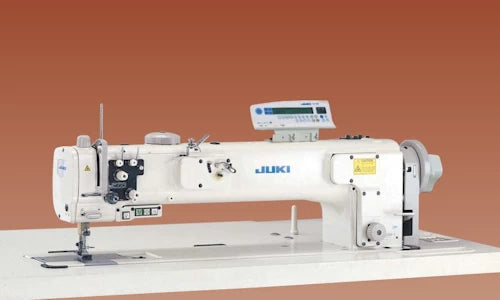

JUKI LU-2200N-7 Series Long-Arm Unison-Feed Sewing Machine

JUKI LU-2200N-7 Series Long-Arm Unison-Feed Sewing Machine

LU-2200N-7 Series

$17,999.95
$17,999.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LU-2200N-7 Series

is the top-tier solution for heavy-duty industrial sewing that requires extra maneuvering space. Engineered specifically for the production of car seats, sofas, and large leather goods, this "Long-Arm" system offers a massive 650mm (25.5") workspace to handle bulky materials with ease. Featuring JUKI’s legendary unison-feed (triple feed) mechanism and a high-torque direct-drive motor, it delivers consistent, beautiful seams even when crossing thick, multi-layered sections.

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the DDL-8700. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.





  • Extended 650mm Long-Arm: Provides a vast working area between the needle and the machine arm, essential for sewing large panels, car seats, and furniture upholstery.
  • Unison-Feed Excellence: Combines needle-feed, bottom-feed, and walking-foot movement to ensure heavy or slippery materials are fed with absolute precision, preventing stitch gathering and uneven seams.
  • Instantaneous DL Device: Comes standard with a switch to instantly maximize the alternating vertical movement of the walking foot—perfect for climbing over thick, overlapped leather or foam sections.
  • 1.6-Fold Large Hook: Features a high-capacity vertical-axis hook that reduces the frequency of bobbin changes by 60% compared to standard hooks, significantly boosting production efficiency.
  • Advanced Thread Trimming: A redesigned trimming mechanism ensures clean cuts for threads as thick as #4 (B138), with a safety mechanism to prevent machine damage during heavy-duty cycles.
  • Pneumatic Auto-Lifter (AK142): Provided as standard, the auto-lifter offers a high 16mm clearance for effortless loading and unloading of bulky workpieces.
  • Max. Sewing Speed: 3,000sti/min
  • Max. Stitch Length: LU-2216N-7: 9mm (normal/reverse feed)LU-2266N-7: 6mm (normal/reverse feed)
  • Needle Bar Stroke: 36mm
  • Needle Gauge:LU-2266N-7: 10mm (standard)
  • Lift of the presser foot: By hand: 9mmAuto: 16mm
  • Auto Lifter: Provide as standard (pneumatic auto-lifter: AK142)
  • Thread take-up: Link type
  • Alternating vertical movement: 1～6.5mm
  • DL Device: Provide as standard
  • Hook: Vertical axis 1.6 fold-capacity hook
  • Needle at time of delivery: LU-2216N-7: 134×35 (Nm140) Nm100～Nm180LU-2266N-7: 134×35 (Nm140) Nm100～Nm160
  • Thread:LU-2216N-7: #30～#4, B46～B138, Nm=60/3～20/3LU-2266N-7: #20～#5, B69～B138, Nm=40/3～20/3
  • Safety Mechanism: Provided as standard
  • Lubrication: Automatic
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Distance from needle to machine arm: 650mm
  • Bed Size: 917mm×178mm
  • Weight of machine head:LU-2216N-7: 90kgLU-2266N-7: 95kg
  • Automatic Reverse Feed Function: Provided as standard
  • Compressed Air/ Air Consumption: 0.5MPa (5kgf/cm2), 0.3N /min.
  • Power Requirement: Single-phase 110～120V, 220～240V, 3-phase 200～220V, 220～240V

  • Automotive: Car seats, headrests, and interior panels.
  • Furniture: Leather sofas, armchairs, and heavy upholstery.
  • Heavy Gear: Large duffel bags, sporting equipment, and tents.
  • Safety Equipment: Industrial lifting slings and heavy-duty webbing.

DOWNLOADS:

LU-2216n7 Catalog

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
