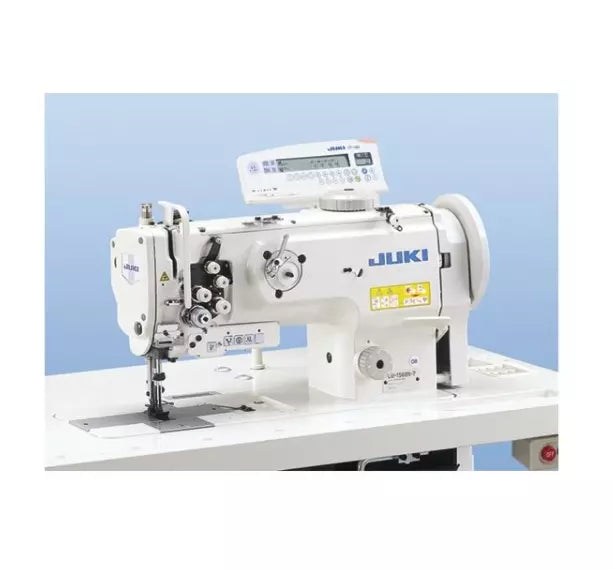

JUKI LU-1560N-7 2 Needle Unison Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

JUKI LU-1560N-7 2 Needle Unison Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

LU-1560N-7

$9,979.95
$9,979.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty
  • Servo Motor

2-Needle Unison Feed Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor, and LED Lamp

The basic machine and its outstanding response to the sewing of heavy materials.

JUKI LU-1560N-7

2-Needle Unison Feed Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor, and LED Lamp

The basic machine and its outstanding response to the sewing of heavy materials.

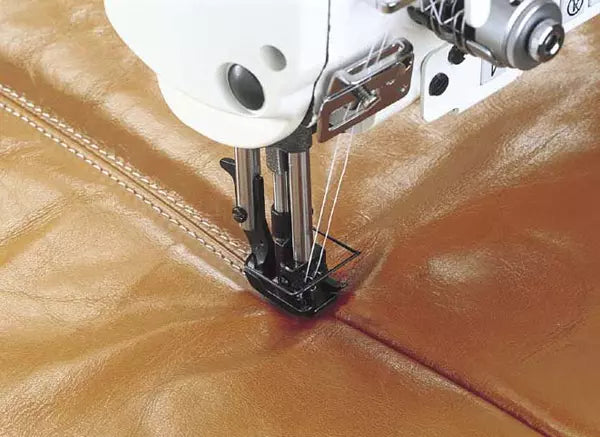

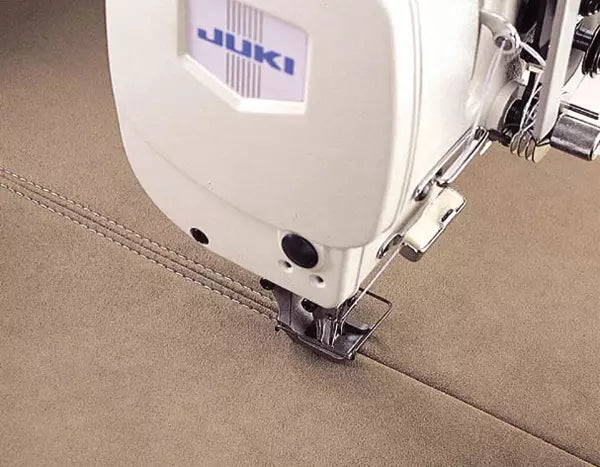

Juki's unique feed mechanism promises excellent efficiency of feed. In addition to the standard models of 1-needle and 2-needle machines, other models intended for special purposes are available, including models for extra heavy materials and one having a thread trimmer. The machine is applicable to an extended range of heavy materials for industrial use, such as cargo handling belts and containers, as well as those for general use, such as car seats, sofas and bags, thereby contributing to both improved quality and increased productivity.

MACHINE FEATURES:

HIGHER LIFT OF THE PRESSER FOOT
The high, 16mm presser foot lift enables easy material handling.

DOUBLE-CAPACITY HOOK
With the adoption of this vertical-axis double-capacity hook, the frequency of bobbin thread changing is reduced, promising sewing work of increased efficiency.

THREAD TRIMMING
The machine leaves a shorter needle thread after thread trimming, improving thread consumption efficiency. With a rigid knife and improved cam shape, the thread trimmer cuts thread as thick as #5 without fail.

THE AREA AROUND THE NEEDLE ENTRY IS DESIGNED TO BE EASILY OBSERVED
Since the needle thread tension-release solenoid is fitted on the rear face of the Juki industrial lockstitch machine head, the area around the needle entry and one-touch type reverse feed button is easily viewable. This substantially contributes to improved operability.

IMPROVED OPERABILITY
The stitch length can be easily selected by the stitch dial. The machine is provided with many improved features that offer enhanced operability such as an easy-to-observe area around the needle, placement of the bobbin winder on the front face of the machine arm, and a large handwheel (φ 160).

A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup. (Machines equipped with automatic thread trimmer are excluded.)
The machine is full-open-type top design makes it possible to fully open the top of the machine arm. Thanks to this design, adjusting works can be done without tilting the machine head.

The machine is equipped as standard with a safety clutch for preventing hook breakage. Reset work can be done simply by pressing a button

MACHINE SPECIFICATIONS:

  • Application: Heavy-Weight
  • Max. sewing speed: 2,500 Stitches per Minute
  • Max. stitch length: 9mm (forward/backward)
  • Needle bar stroke: 38mm
  • Lift of the presser foot: Autolift 16mm
  • Needle Gauge: 4.8mm, 6.4mm, 7.9mm, 9.5mm, 12.7mm (3/16, 1/4, 5/16, 3/8, 1/2)
  • Alternating Vertical Movement: 1~6.5mm
  • Thread Take-Up: Slide Type
  • Hook: Vertical-Axis Double-Capacity Hook
  • Needle: (at the time of delivery) 135x17 (Nm160) Nm125~Nm180
  • Bobbin: Large Capacity Bobbin #B9117-563-000
  • Lubrication: Automatic
  • Lubricating Oil: JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
  • Bed Size: 517 mm x 178mm

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Juki LU-1560N Industrial Sewing Machine

Tutorial - JUKI LU-1560N Complete Assembly - Part 1

Tutorial - JUKI LU-1560N Complete Assembly - Part 2

Tutorial - JUKI LU-1560N Complete Assembly - Part 3

Product Comparison: Juki LU-1560N vs Consew 339RB-4 - Goldstartool.com

Product Showcase - Juki LU-1560N with 3-8 Gauge - Goldstartool.com

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
