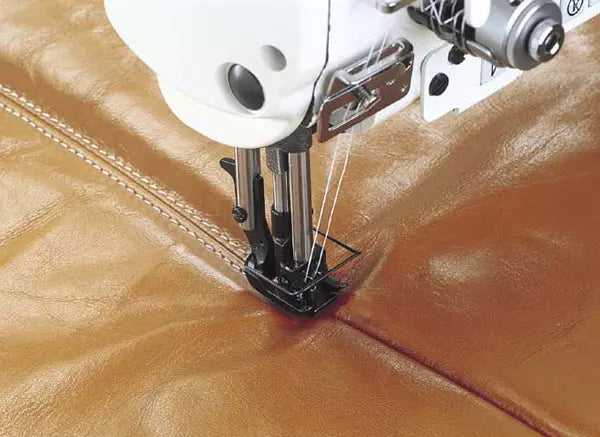

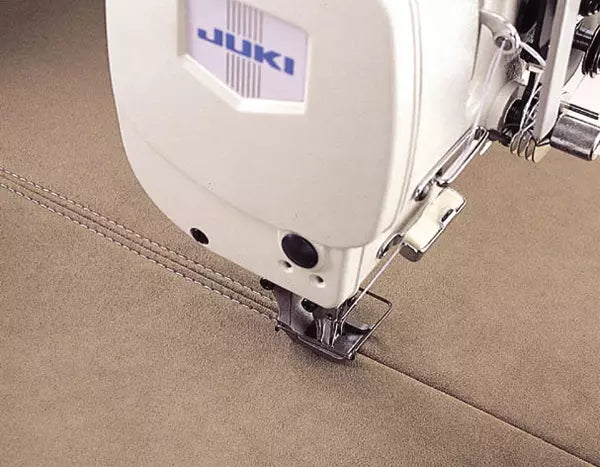

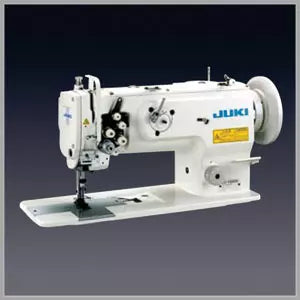

JUKI LU-1560N 2-Needle, Unison-Feed Heavy-Duty Industrial Lockstitch Sewing Machine

JUKI LU-1560N 2-Needle, Unison-Feed Heavy-Duty Industrial Lockstitch Sewing Machine

LU-1560N

This complete workstation includes a professional-grade table and a high-torque Servo Motor, providing the silent, granular control requiredfor intricate upholstery work.

$4,799.97
$4,799.97 Market price: $4,999.99
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LU-1560N

is a heavy-duty, double-needle powerhouse engineered for precision and durability. Utilizing Juki's sophisticated Unison-Feed (Triple Feed) mechanism—where the needle, feed dog, and presser foot move in perfect synchronization—this machine ensures that multiple layers of thick material are fed without any ply-shift or unevenness. Designed specifically for the furniture and automotive industries, it excels at creating perfectly parallel seams on leather, vinyl, and heavy canvas.

  • Double-Needle Precision: Produces two perfectly parallel rows of stitching simultaneously, ideal for structural seams and decorative topstitching.
  • Unison-Feed (Triple Feed) System: The combined action of the needle, feed dog, and walking foot prevents material slippage, even when sewing over thick cross-seams or varying thicknesses.
  • Rectangular Feed Motion: Unlike traditional elliptical feeding, the rectangular motion reduces gathered stitches and ensures consistent feeding across all material weights.
  • Large Vertical-Axis Hooks: Features two high-capacity hooks that reduce the frequency of bobbin changes, even when using thick bonded threads.
  • Dual Tension System: Equipped with a dual-tension mechanism to handle the high-tension requirements of thick upholstery threads with ease.
  • Safety Clutch: An integrated safety device automatically disengages the hook drive in the event of a jam, preventing damage to the timing belt and internal gears.
  • New Lubrication System: A centralized oiling system significantly reduces maintenance time and ensures the machine remains quiet and smooth at high speeds.
  • Max Speed: 2,500 SPM (Stitches Per Minute)
  • Standard Needle Gauge: 1/4" (6.4mm) — other gauges available
  • Max Stitch Length: 9mm (Forward/Reverse)
  • Presser Foot Lift: 9mm (Hand) / 16mm (Knee)
  • Needle System: 135x17 (DPx17) / Sizes #18 to #23
  • Bobbin Type: Large Vertical-Axis (1.6 fold capacity)
  • Alternating Vertical Movement: 2.5mm to 6.5mm
  • Motor: 110V/220V High-Torque AC Servo Motor
  • Automotive Interiors: Creating double-stitched seams for car seats, headrests, and dashboards.
  • Furniture Upholstery: Ideal for leather sofas, armchairs, and heavy tapestry cushions.
  • Marine & Outdoor Gear: Sewing heavy-duty boat covers, vinyl seating, and canvas awnings.
  • Leather Goods: Construction of heavy bags, luggage, and specialized protective gear.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Juki LU-1560N Industrial Sewing Machine

Tutorial - JUKI LU-1560N Complete Assembly - Part 1

Tutorial - JUKI LU-1560N Complete Assembly - Part 2

Tutorial - JUKI LU-1560N Complete Assembly - Part 3

Product Comparison: Juki LU-1560N vs Consew 339RB-4 - Goldstartool.com

Product Showcase - Juki LU-1560N with 3-8 Gauge - Goldstartool.com

Product Showcase - JUKI LU-1560N Industrial Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
