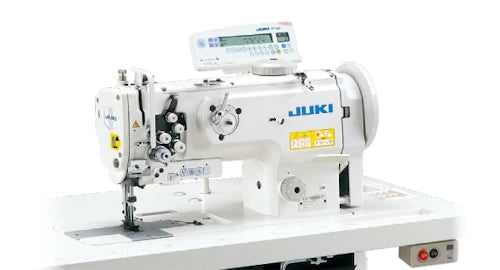

JUKI LU-1560N 2-Needle Unison-Feed (Walking Foot) Heavy-Duty Industrial Sewing Machine with Table and Servo Motor

JUKI LU-1560N 2-Needle Unison-Feed (Walking Foot) Heavy-Duty Industrial Sewing Machine with Table and Servo Motor

LU-1560

1-Needle Unison -feed Lockstitch Industrial Sewing Machine with Vertical-axis Large Hook

$4,999.99
$4,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LU-1560 Series

is a vertical-axis, 2-needle machine engineered to handle the toughest materials with precision. Featuring a Unison Feed (Triple Feed) mechanism—which combines a presser foot, needle feed, and feed dog—it ensures that heavy or multi-layered fabrics are fed smoothly without any material shift. The LU-1560N is specifically designed for structural sewing in upholstery, marine gear, and leather goods where parallel stitching is required.

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the LU-1560 Series. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.




  • Unison Feed (Triple Feed): The synchronized movement of the needle, feed dog, and walking foot provides consistent feeding even on slippery or heavy-weight materials.
  • Dual-Needle Capability: Produces perfectly parallel double-row stitching, essential for structural seams on car seats, sofas, and luxury bags.
  • Rectangular Feed Mechanism: Unlike conventional elliptical feed machines, this model utilizes a rectangular feed movement that reduces gathered stitches and ensures even feeding across all material thicknesses.
  • Large Vertical-Axis Hook: Equipped with a large hook that accommodates increased bobbin thread capacity, significantly reducing downtime spent on thread changes.
  • Adjustable Walking Foot Stroke: A top-mounted dial allows you to adjust the vertical stroke of the walking foot to easily "climb" over thick overlapping seams or cross-stitching.
  • Built-in Safety Clutch: Automatically disengages the hook in the event of a thread jam or needle strike, protecting the machine’s timing and internal gears from damage.
  • Application: Heavy-weight
  • Max. Sewing Speed: LU-1560N, LU-1561N, LU-1560N-7, LU-1561N-7: 36mm2,500 sti/min
  • Max. Stitch Length: 9mm(Forward/Backward)
  • Needle Bar Stroke:LU-1560N, LU-1561N, LU-1560N-7, LU-1561N-7: 36mm
  • Lift of the Presser Foot:
  • By Hand: 9mm
  • By Knee:
    LU-1560N, LU-1561N:     16mm (max.)
  • Auto:LU-1560N-7, LU-1561N-7: 16mm
  • Auto Lifter: LU-1560N, LU-1561NLU-1560N-7, LU-1561N-7: Provided as standard (pneumatic auto-lifter: AK-147B)
  • Needle Gauge: LU-1560N, LU-1560N-7:  4.8mm, 6.4mm, 7.9mm, 9.5mm, 12.7mm (3/16, 1/4, 5/16, 3/8, 1/2)LU-1561N, LU-1561N-7: 6mm, 8mm, 10mm, 12mm
  • Organized split needle bar: LU-1560N, LU-1561N, LU-1560N-7, LU-1561N-7: N/A
  • Alternating vertical movement: LU-1560N, LU-1561N, : 2.~6.5mmLU-1560N-7, LU-1561N-7: 1~6.5mm
  • Dial for adjustment of alternating vertical movement:LU-1560N, LU-1561N: N/ALU-1560N-7, LU-1561N-7, : Provided as standard
  • Thread take-up: Slide Type
  • Hook: Vertical-axis double-capacity hook
  • Needle ( at time of delivery): 135x17(Nm160) Nm125~Nm180
  • Thread: #30~#5, B46~B138, Nm+60/3~20/3
  • Locus of feed: Rectangular Feed
  • Needle thread tension box: Single-tension method
  • Pitch changing method: By Dial
  • Bobbin Thread Winder: Built on the machine head
  • Knee-lifter Mechanism: LU-1560N, LU-1561N: Built on the machine headLU-1560N-7, LU-1561N-7: N/A
  • Safety Mechanism: Provided as standard ( reset with the push of a button)
  • Lubrication:LU-1560N, LU-1561N, LU-1560N-7, LU-1561N-7: Automatic
  • Lubricating Oil: JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
  • Distance from needle to machine arm: 255mm
  • Bed Size: 517mm x178mm
  • Weight of the machine head:LU-1560N, LU-1561N: 45kgLU-1560N-7, LU-1561N-7: 51kg
  • Automatic reverse feed function:LU-1560N, LU-1561N: OptionLU-1560N-7, LU-1561N-7: Provided as standard
  • Compressed air and air consumption:LU-1560N, LU-1561N: N/ALU-1560N-7, LU-1561N-7: 0.5MPa {5kg/cm²} • 0.3Nl/min
  • Power Requirement:LU-1560N, LU-1561N: N/ALU-1560N-7, LU-1561N-7: Single-phase 100~120V, 220~240V, 3-phase 200~220V, 220~240V
  • Power Consumption:LU-1560N, LU-1561N: N/A LU-1560N-7, LU-1561N-7: 550VA

  • Automotive: Seat covers, headrests, and interior panels.
  • Upholstery: Heavy sofas, armchairs, and commercial furniture.
  • Marine Gear: Boat covers, sails, and heavy-duty vinyl enclosures.
  • Leather Goods: Large handbags, luggage, and specialized industrial belts.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
