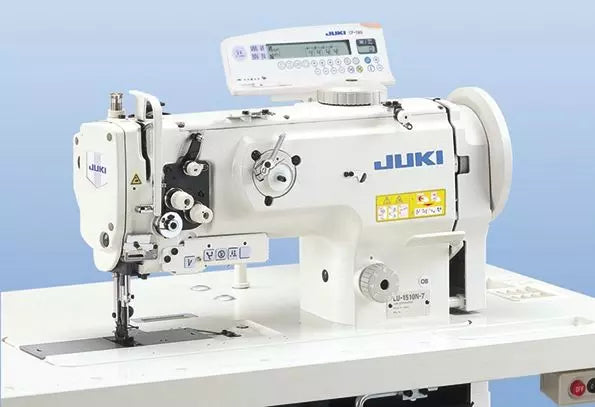

JUKI LU-1510N-7 Fully Automatic Walking Foot Machine Industrial Sewing Machine with Table and Servo Motor

JUKI LU-1510N-7 Fully Automatic Walking Foot Machine Industrial Sewing Machine with Table and Servo Motor

LU-1510N-7

Single-Needle Unison-Feed Lockstitch with Automatic Thread Trimmer

$5,699.96
$5,699.96 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LU-1510N-7

is a heavy-duty powerhouse engineered for medium-to-extra-heavy materials. It utilizes a Unison-Feed mechanism (needle feed, feed dog, and walking foot) to ensure that even the bulkiest multi-layered assemblies are fed with perfect synchronization, eliminating material shift and uneven stitches. The "-7" designation signifies a fully automated system, featuring a built-in thread trimmer, automatic backtacking, and a pneumatic auto-lifter, all controlled via the included CP-180 operation panel.

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the LU-1510N-7. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419 and we’ll be happy to answer everything for you.

  • Full Automation Package: Equipped with an automatic thread trimmer, automatic reverse feed (backtacking), and an auto-foot lifter to significantly reduce cycle times and operator fatigue.
  • Unison-Feed Mechanism: Synchronizes the needle, presser foot, and feed dog to maintain consistent feeding and precise stitch length on heavy fabrics like leather and canvas.
  • Rectangular Feed Motion: Unlike traditional elliptical feeds, the rectangular movement prevents "stitch gathering" and ensures a powerful feed across all material thicknesses.
  • Vertical-Axis Double-Capacity Hook: The large-capacity hook reduces the frequency of bobbin changes, which is critical when working with thick industrial threads.
  • Semi-Dry Head Technology: A specialized lubrication system keeps the needle bar and frame area clean, preventing oil stains on high-end leather and upholstery.
  • Dual-Tension Mechanism: Standard on the 1-needle type, this allows for high-tension sewing with thick threads without compromising seam quality on lighter sections.
  • Instant Vertical Stroke Adjustment: A large dial on top of the machine head allows for quick adjustment of the walking foot’s alternating vertical movement to "climb" over thick seams.
  • Max. sewing speed: 3,000sti/min 2,500sti/min
  • Max. stitch length: 9mm
  • Presser foot lift Auto: 16mm
  • Presser foot lift By knee: 16mm
  • Alternating vertical movement: 1～6.5mm 2.5～6.5mm
  • Needle: 135×17 (Nm160) Nm125～Nm180
  • Thread: #30～#5, B46～B138, Nm=60/3～20/3
  • Automotive: Car seats, headrests, and interior trimming.
  • Upholstery: Leather sofas, marine cushions, and heavy furniture fabrics.
  • Leather Goods: High-end bags, belts, and structural leather accessories.
  • Heavy Textiles: Webbing, canvas covers, and tactical gear.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - JUKI LU-1510N-7 Walking Foot Sewing Machine - Goldstartool.com

Product Showcase - JUKI LU-1510N-7 Walking Foot Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
