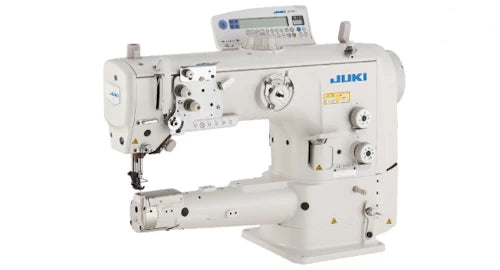

JUKI LS-2342-7 High-Speed Cylinder-Bed Unison-Feed Lockstitch Sewing Machine

JUKI LS-2342-7 High-Speed Cylinder-Bed Unison-Feed Lockstitch Sewing Machine

LS-2342-7

Cylinder-bed 1-needle Unison-feed Lockstitch Machine With Vertical-axis Hook With Table, Legs, Servo Motor and LED Lamp

$8,999.99
$8,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LS-2342-7

is an advanced 1-needle, unison-feed (walking foot) machine that combines a high-and-long arm design with a specialized cylinder bed. This model is engineered to handle large, bulky materials and extra-heavy fabrics with ease. Its semi-long arm provides a wider workspace, while the slimmed-down throat plate allows for effortless sewing of sharp curves and small tubular items (down to ø40mm). Featuring an integrated high-torque direct-drive motor and a semi-dry head, the LS-2342-7 delivers superior penetration power and stain-free results, making it the premier choice for luxury leather bags, wallets, and furniture.

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the LS-2342-7. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.




Get Ready to Fall in Love with Your New LS-2342-7

Even though it’s a high-powered industrial machine, the servo motor makes it much quieter. Smooth, fast, and quiet stitching means you’ll be able to sew longer and get bigger projects completed quickly.

Need to put the brakes on that high-speed stitch? Adjust the servo motor for a slower speed anytime.

This high-shank machine can also use many of our presser feet that fit. This means you can add on to the machine’s functions and do things like ruffling, gathering, bias, elastic, and zipper installation with a quick change of the presser foot. We carry over 200 presser feet, many of which are high-shank (as well as high-shank adapters for snap-on feet.)

Once you become accustomed to using the LS-2342-7, you’ll understand why so many other JUKI buyers swear by their machines.

  • High & Semi-Long Arm: Offers an expanded workspace (347mm x 127mm) between the arm and the needle, significantly improving workability when handling large or three-dimensional products.
  • Superior Sharp-Curve Capabilities: Features a slimmed-down throat plate and specialized gauges that allow for smooth sewing of small tubular articles and intricate curves in wallets and bag gussets.
  • High-Torque Direct-Drive Motor: The motor is directly connected to the main shaft, ensuring instant responsiveness, reduced vibration, and increased needle penetration through multi-layered or extra-heavy sections.
  • Automatic Thread Trimmer (-7): Equipped with a high-speed automatic thread trimming system to increase productivity and reduce thread waste.
  • Semi-Dry Technology: Specialized lubrication system keeps the needle bar and take-up area oil-free, protecting expensive leathers and light-colored fabrics from oil stains.
  • Dual-Tension System: Comes standard with double-tension control to maintain stable and well-tensed stitches even when using thick threads under high tension.
  • Multi-Functional 6-String Switch: Conveniently located head-mounted switches allow for one-touch stitch correction, stitch length changeover, and needle-thread tension adjustments.
  • Model : LS-2342-7 (Automatic Thread Trimmer Type)
  • Max. Sewing Speed : 2,500 stitches per minute
  • Max. Stitch Length : 9.0 mm (Normal/Reverse)
  • Cylinder Diameter : 72 mm (Small-article gauge: ø40mm capability)
  • Workspace (Arm-to-Needle) : 347 mm x 127 mm
  • Presser Foot Lift : 10 mm (Hand) / 20 mm (Automatic)
  • Needle System : 134x35 (Nm100 to Nm180; Standard: Nm140)
  • Thread Size : #30 to #5 (US: #46 to #138)
  • Hook Type : Vertical-Axis 1.6-Fold-Capacity Hook
  • Feed Mechanism : Unison Feed (Walking Foot + Needle Feed + Feed Dog)
  • Alternating Vertical Movement : 1.0 mm to 9.0 mm
  • Bags & Handbags: Ideal for gussesting, sharp corners, and tubular assemblies.
  • Leather Goods: Wallets, cases, belts, and high-end accessories.
  • Furniture Upholstery: Large leather panels, curved sofa sections, and heavy fabrics.
  • Automotive: Heavy trim work and specialized interior components.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
