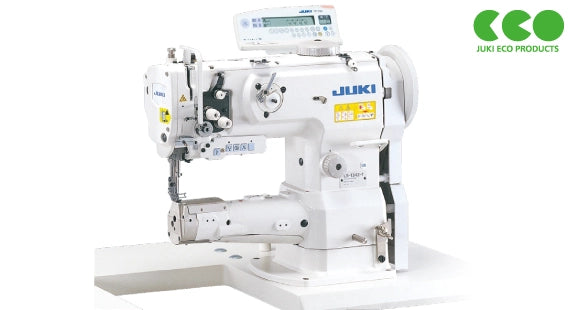

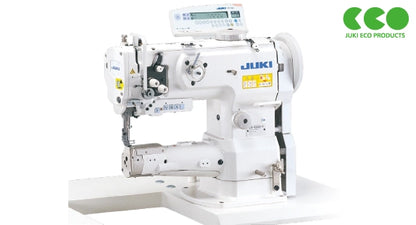

JUKI LS-1340 Series Cylinder Bed 1 Needle Lockstitch Industrial Sewing Machine with Table and Motor

JUKI LS-1340 Series Cylinder Bed 1 Needle Lockstitch Industrial Sewing Machine with Table and Motor

LS-1342-7

$9,499.99
$9,499.99 Market price:
Sale Sold out
Choose Model
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LS-1340 Series

sets the industry standard for cylinder-bed, single-needle lockstitch sewing machines. Engineered for precision, durability, and performance, this machine excels in sewing tubular or curved components—ideal for leather goods, bags, shoes, upholstery, and heavy materials.
Comes complete with table, stand, and energy-efficient servo motor for smooth operation right out of the box.

The JUKI LS-1340 Series

JUKI LS-1340 Series Cylinder Bed 1 Needle LockstitchIndustrial Sewing Machine Comes With Table, Legs, Servo Motor, and LED Lamp

This machine comes in 4 options:

  • LS-1340: Standard Gauge, Vertical-axis standard hook

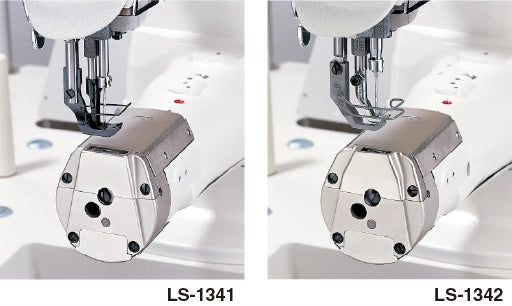

  • LS-1341: Standard Gauge, Vertical-axis 1.6 fold-capacity hook
  • LS-1342: For small articles, Vertical-axis 1.6 fold-capacity hook
  • LS-1342-7: For small articles, automatic thread trimmer, Vertical-axis 1.6 fold-capacity hook, multiple power options
  • Leather bags, belts, wallets, and pouches
  • Shoe uppers and tubular components
  • Canvas and heavy fabrics (e.g., denim, vinyl)
  • Upholstery, automotive interiors, and outdoor gear
  • Energy-saving servo system for cost-efficient production
  • Perfect for manufacturers of leather goods, footwear, and upholstery
  • Cylinder-Bed Design (72 mm Diameter) – Perfect for sewing small tubular items like cuffs, bags, and shoe parts.
  • 1-Needle Lockstitch Mechanism – Creates durable, even stitches across a wide range of heavy and medium-weight materials.
  • Unison Feed Mechanism – Combines needle, feed dog, and presser foot motion for uniform material feeding and consistent stitch quality.
  • Rectangular Feed Motion – Reduces stitch gathering and ensures stable material handling for thick or multi-layered fabrics.

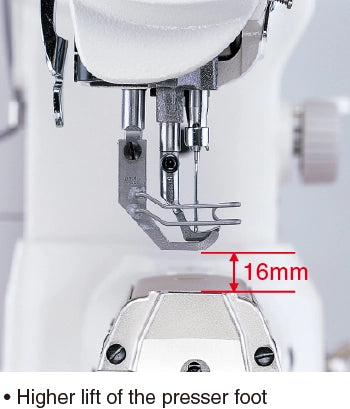

  • Large Presser Foot Lift – 9 mm (by hand) / 16 mm (by knee) clearance allows sewing of bulky materials and seams.
  • Servo Motor Included – Quieter operation, precise speed control, and up to 90% less power consumption compared to clutch motors.
  • Durable Construction – Built for continuous, industrial-level production and long-term reliability.
  • Max. Sewing Speed: 2,000–2,500 stitches/min (depending on model)
  • Max. Stitch Length: 6 mm (forward/reverse)
  • Needle Bar Stroke: 36 mm
  • Presser Foot Lift: Hand – 9 mm / Knee – 16 mm
  • Needle System: DP × 17 (#18 – #23)
  • Cylinder-Bed Diameter: 72 mm
  • Lubrication: Automatic centralized oil wick system
  • Machine Head Weight: Approx. 37–40 kg (varies by model)

DOWNLOADS:

    U.S. WARRANTY:

    90 Days labor on defects in materials and workmanship.

    ** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges are necessary.

    DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES, THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

    JUKI DDL-8700 FAQs

    What kind of needles do you use in the DDL-8700?

    The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

    Where does the machine oil go?

    A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

    What kind of oil does this machine require?

    You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

    What size table can I get with this machine?

    Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

    Does the DDL 8700 make buttonholes?

    No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
