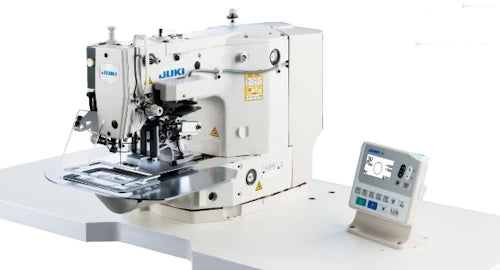

JUKI LK-1920 Computer-Controlled High-Speed Shape-Tacking Sewing Machine

JUKI LK-1920 Computer-Controlled High-Speed Shape-Tacking Sewing Machine

LK-1920

$11,999.95
$11,999.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LK-1920

is a high-performance shape-tacking machine engineered for versatility and speed. Unlike standard bartackers, the LK-1920 features a specialized Intermediate Presser that prevents material "flopping" or shifting, ensuring beautiful, consistent seams even on thick or elastic fabrics. With a maximum speed of 2,500 sti/min and a generous 60mm x 100mm sewing field, it is the industry standard for attaching name labels, ruffling curtains, and reinforcing heavy-duty components like jean belt loops and bag straps.

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the LK-1920. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.

Note:

  • We recommend shipping this machine in an assembled condition. If you select this option, we will contact you regarding the shipping cost due to the machine's specifications.
  • The default clamp and the default program are intended solely for testing purposes. If you require us to do the programming, we will contact you to discuss the associated costs and the procedure for sending a sample.



  • Apparel: Attaching name labels, emblems, and reinforcing waistband ends on jeans.
  • Heavy-Duty Gear: Stitching Velcro, buckles, and webbing on tactical gear or backpacks.
  • Home Textiles: Ruffling curtains and attaching decorative patches to upholstery.
  • Industrial: Any process requiring a 4" x 2.4" reinforced perimeter or shape-tack.
  • Active Intermediate Presser: Prevents material slippage by holding the fabric down during the needle stroke. The height and stroke of the presser are adjustable to accommodate varying material thicknesses and layers.
  • Industry-Leading Speed: Operates at 2,500 sti/min—the highest level in its class—to significantly reduce cycle times and boost daily productivity.
  • Direct-Drive System: Features an integrated AC servomotor for instant startup, superior stopping accuracy, and a quieter, vibration-free working environment.
  • Expanded Sewing Area: The 60mm (L) x 100mm (W) field supports a broader range of applications than standard bartack machines, from small part attachment to perimeter stitching.
  • Double-Capacity Shuttle Hook: Reduces the frequency of bobbin changes by half, while allowing the machine to handle thicker threads for heavy-duty reinforcement.
  • Intuitive Operation Panel: Easily adjust sewing speed, bobbin counters, and pattern selection. Includes an automatic correction function to prevent pattern distortion when enlarging or reducing shapes.
  • Application: Medium weight to heavyweight
  • Max. Sewing Speed: 2,500 sti/min (when stitch length is 3mm or less)
  • Sewing Area: 60mm (L) × 100mm (W)
  • Stitch Length: 0.1mm~10mm (0.1mm step)
  • Needle Bar Stroke: 41.2mm
  • Lift of the feeding frame: Max. 22mm (electromagnetic) / Max. 25mm (pneumatic)
  • Lift of the intermediate presser: 18mm
  • Strock of the intermediate presser: Standard 4mm (0mm and 4mm~10mm)
  • Needle:Medium weight: DP×5 (#14)Heavyweight: DP×17 (#18)
  • Hook: Double-capacity shuttle hook
  • Feed Motion Work Clamp foot: Max.20,000 stitches
  • Standard Sewing Patterns: No.50, No.51, No.52
  • Number of patterns that can be input: 200 patterns
  • Enlarging/reducing facility: 20~200% (1% step) (by increasing the stitch length)
  • Bobbin thread counter: Provided as standard (Up / down method)
  • Memory medium: Memory /EEP-ROM
  • Lubricating Oil: JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
  • Sewing machine motor: AC servomotor (direct-drive system)
  • Power Consumption: Single-phase, 3 - phase 200~240V / 380VA
  • Weight: Machine head (including motor) 46kg, control box 5kg

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
