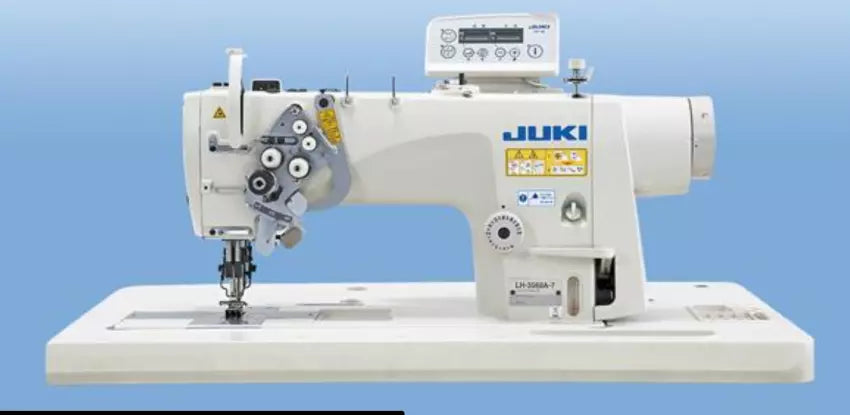

JUKI LH-3588A-7 Semi-Dry Head 2-Needle Lockstitch Industrial Sewing Machine With Table and Servo Motor

JUKI LH-3588A-7 Semi-Dry Head 2-Needle Lockstitch Industrial Sewing Machine With Table and Servo Motor

LH-3588-7

Organized Split Needle Bar | Large Hook | Automatic Thread Trimmer

$7,389.99
$7,389.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LH-3588-7

is the industry’s leading solution for heavy-duty twin-needle stitching. Specifically engineered for denim and heavy materials, it features an Organized Split Needle Bar that allows the operator to stop either the left or right needle independently essential for achieving perfect, sharp corners. This modern "A-7" series model utilizes a Semi-Dry Head to eliminate oil stains on your fabric and a direct-drive servo motor for unmatched piercing power and energy efficiency.

  • Organized Split Needle Bar: Seamlessly switch between single and double-needle operation with a simple lever. Perfect for sewing pockets, collars, and decorative flaps.
  • Semi-Dry Head Technology: The frame and needle bar are lubricated with grease, keeping the sewing area oil-free and protecting your garments from stains.
  • 1.8x Large Vertical Axis Hook: Specifically designed for heavy threads, this hook is 80% larger than standard bobbins, significantly reducing downtime for bobbin changes.
  • Direct-Drive Servo System: The motor is integrated directly into the head for a 32% increase in needle penetration force, making it effortless to sew through multi-layered denim.
  • Automatic Functions: Includes an automatic thread trimmer, auto-foot lifter, and automatic backtacking for maximum production speed.
  • Production Support Panel: The CP-180A panel provides a bobbin counter and output control functions to monitor efficiency in real-time.
  • Application: G: Jeans and heavy-weight
  • Max. sewing speed: 3,000sti/min
  • Max. stitch length: 5mm
  • Lift of the Presser Foot: 7mm (by hand), 13mm (by knee)
  • Needle Bar Stroke: 33.4mm
  • Needle: G: DP×5 (#21) #16～#23
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Hook: Vertical axis 1.8 times large hook
  • Feed System: Needle-feed
  • Jeans & Workwear: Ideal for pocket setting, topstitching, and lap seams.
  • Heavy Apparel: Jackets, uniforms, and heavy-weight cotton garments.
  • Canvas & Upholstery: Bags, automotive interiors, and decorative heavy-duty seams.

DOWNLOADS:

    U.S. WARRANTY:

    90 Days labor on defects in materials and workmanship.

    ** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

    DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

    JUKI DDL-8700 FAQs

    What kind of needles do you use in the DDL-8700?

    The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

    Where does the machine oil go?

    A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

    What kind of oil does this machine require?

    You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

    What size table can I get with this machine?

    Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

    Does the DDL 8700 make buttonholes?

    No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

    Product Videos

    Product Showcase-Juki LH-3588A-7 Split Bar Sewing Machine Goldstartool.com

    THE ADVANTAGES OF A SERVO MOTOR

    THE ADVANTAGES OF A SERVO MOTOR

    Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

    They use up to 90% less power than clutch motors

    They use up to 90% less power than clutch motors

    They are 1/3 lighter than clutch motors

    They are 1/3 lighter than clutch motors

    With a flick of the switch, you can reverse motor rotation

    With a flick of the switch, you can reverse motor rotation

    No parts to wear out or adjust

    No parts to wear out or adjust

    No matter how hard you press the foot pedal, the configured speed remains the same.

    No matter how hard you press the foot pedal, the configured speed remains the same.
