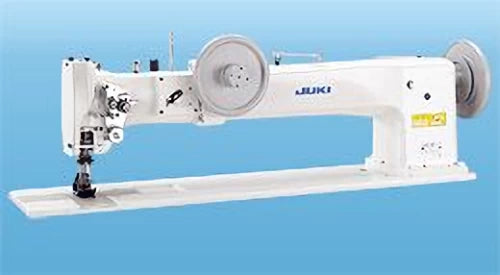

JUKI LG-158 Series Extra Heavy-Duty Long-Arm Sewing Machine

JUKI LG-158 Series Extra Heavy-Duty Long-Arm Sewing Machine

LG-158 Series

1 or 2-Needle Unison-Feed Lockstitch System with Vertical-Axis Large Hook

$15,999.95
$15,999.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI LG-158 Series

is designed for "extra heavy-weight" production where material size and thickness are extreme. Featuring a generous 750mm (30") horizontal clearance, it allows operators to spread out bulky items like tents and tarpaulins without bunching. Its powerful unison-feed (triple feed) mechanism ensures that multiple thick layers advance evenly, providing consistent stitch quality even on rubberized fabrics and heavy canvas. This complete workstation includes a heavy-duty table and a silent, high-torque servo motor for maximum control.

Love JUKI? Goldstar Tool Has You Covered

We carry several JUKI machines, including the DDL-8700. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.



  • Massive 750mm (30") Long-Arm: Provides an expansive workspace essential for navigating large panels, sails, and industrial covers.
  • Synchronized Unison Feed: Combines needle-feed, bottom-feed, and walking-foot movement to prevent layers from shifting, ensuring professional results on slippery vinyl or heavy leather.
  • Vertical-Axis Large Hook: Incorporates a "Jumbo" bobbin system that holds 1.6 times more thread than standard hooks, significantly reducing downtime for bobbin changes.
  • Automatic Safety Device: If a thread jam occurs, the built-in safety clutch automatically disengages the hook to prevent damage to the machine’s timing or internal gears. A simple reset button returns the machine to normal operation.
  • Ultra-High Presser Foot Lift: A pedal-operated lift of up to 21.5mm (nearly an inch) ensures effortless placement and removal of extra-thick assemblies.
  • On-Arm Auxiliary Controls: The handwheel is mounted at the middle of the arm, and the bobbin winder is located on the front face for ergonomic access while handling large projects.
  • Max. Sewing Speed: 1500 sti/min
  • Max. Stitch Length: 10mm (forward/reverse feed)
  • Needle Bar Stroke: 46.9mm
  • Needle Gauge:LG-158: Standard 19.1mm (3/4")
  • LG-158-1: -----
  • Lift of Presser Foot: By Pedal: 21.5mm
  • Thread Take-up: Side Type
  • Alternating Vertical Movement:  6~19mm
  • Hook: Vertical-axis large hook
  • Needle at Time of Delivery: DD×1 (#25)
  • Thread: #20～#5, B69～B138, Nm=40/3～20/3
  • Safety Mechanism: Provided as standard
  • Bobbin Winder: Built on the machine arm
  • Lubrication: By an oiler
  • Lubricating Oil: JUKI New Oil No.1 (equivalent to ISO VG7)
  • Distance from needle to machine arm: 750mm
  • Bed Size: 1,088mm×230mm
  • Weight of the machine head: 108kg
  • Outdoor Gear: Tents, camping equipment, awnings, and field covers.
  • Marine & Logistics: Boat covers, sails, truck tarpaulins, and cargo nets.
  • Industrial Textiles: Construction barriers, divider curtains, and mops.
  • Extra-Heavy Leather: Saddlery, luggage, and heavy-duty harnesses.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - JUKI LG-158 Long-Arm Lockstitch Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
