Juki Industrial Lockstitch DDL 8700 Series Servo Motor, Table, LED Lamp. Assembly Required. DIY (DDL-8700 Standard)

Juki Industrial Lockstitch DDL 8700 Series Servo Motor, Table, LED Lamp. Assembly Required. DIY (DDL-8700 Standard)

Ddl-8700

$1,199.95
$1,199.95 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

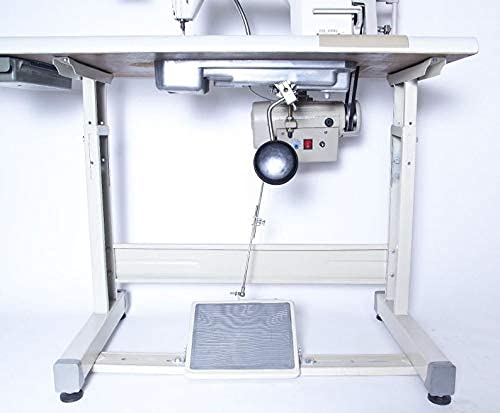

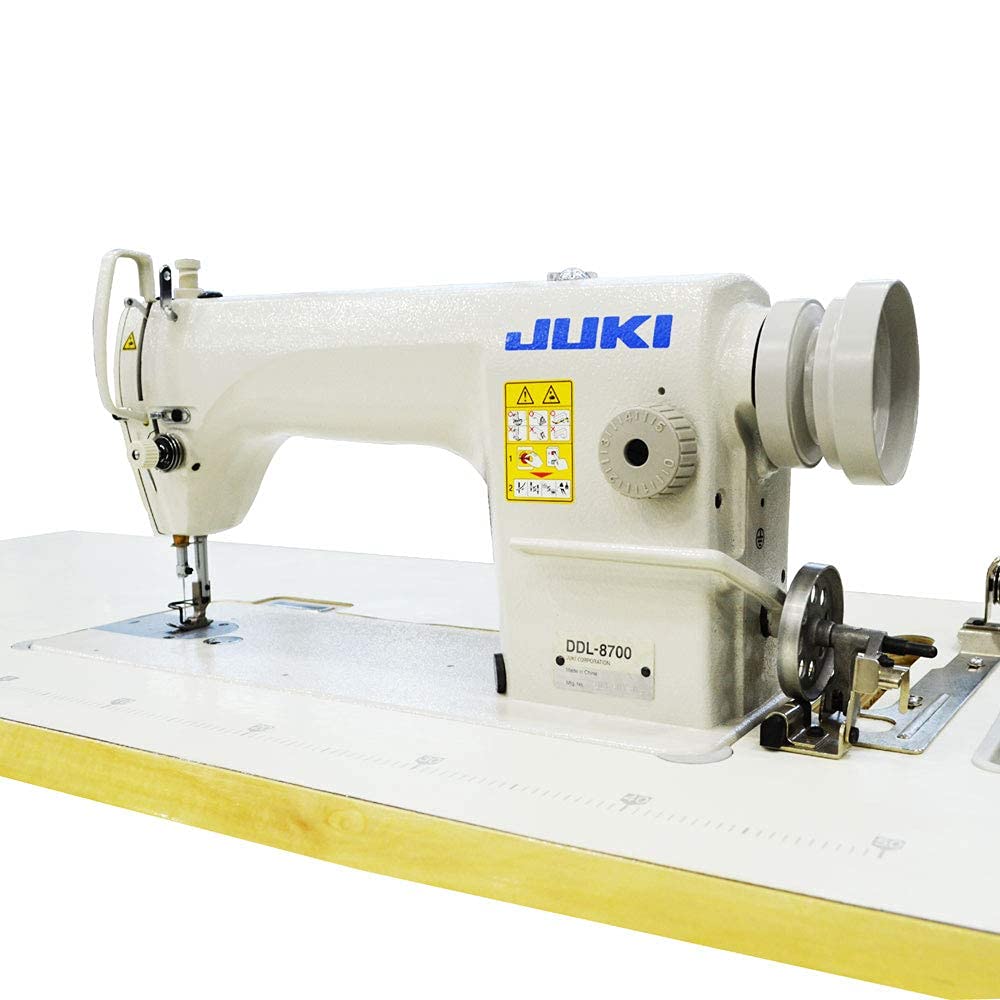

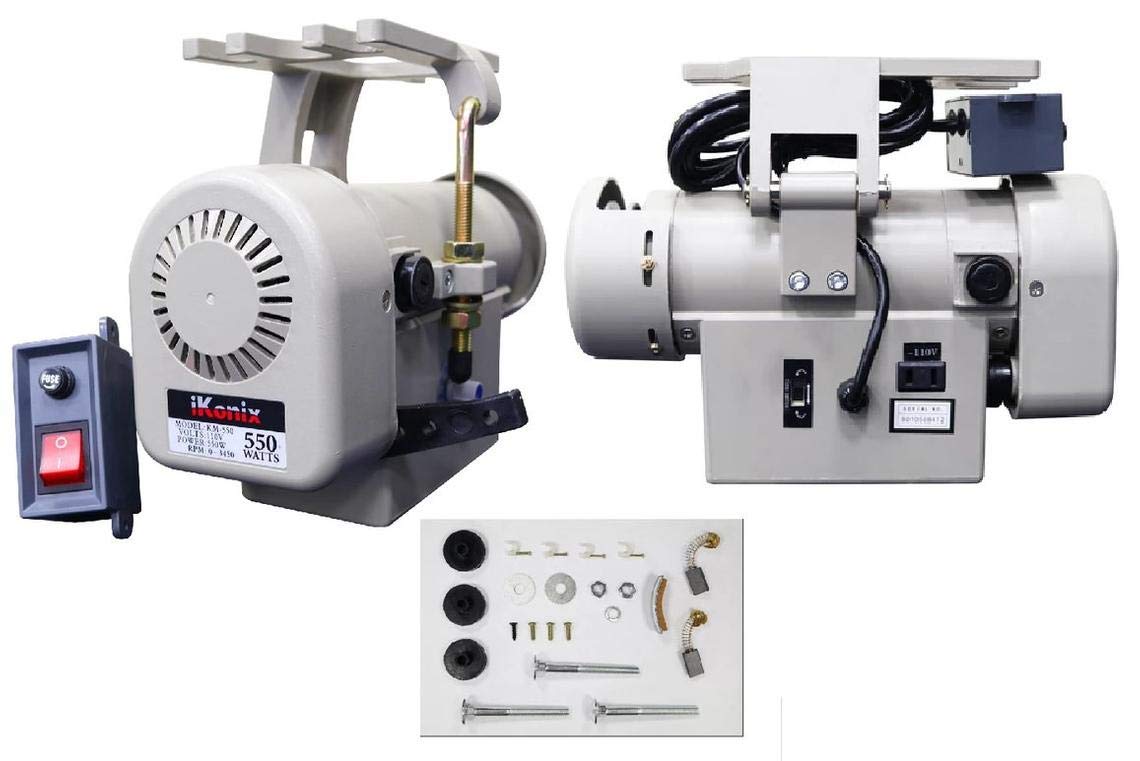

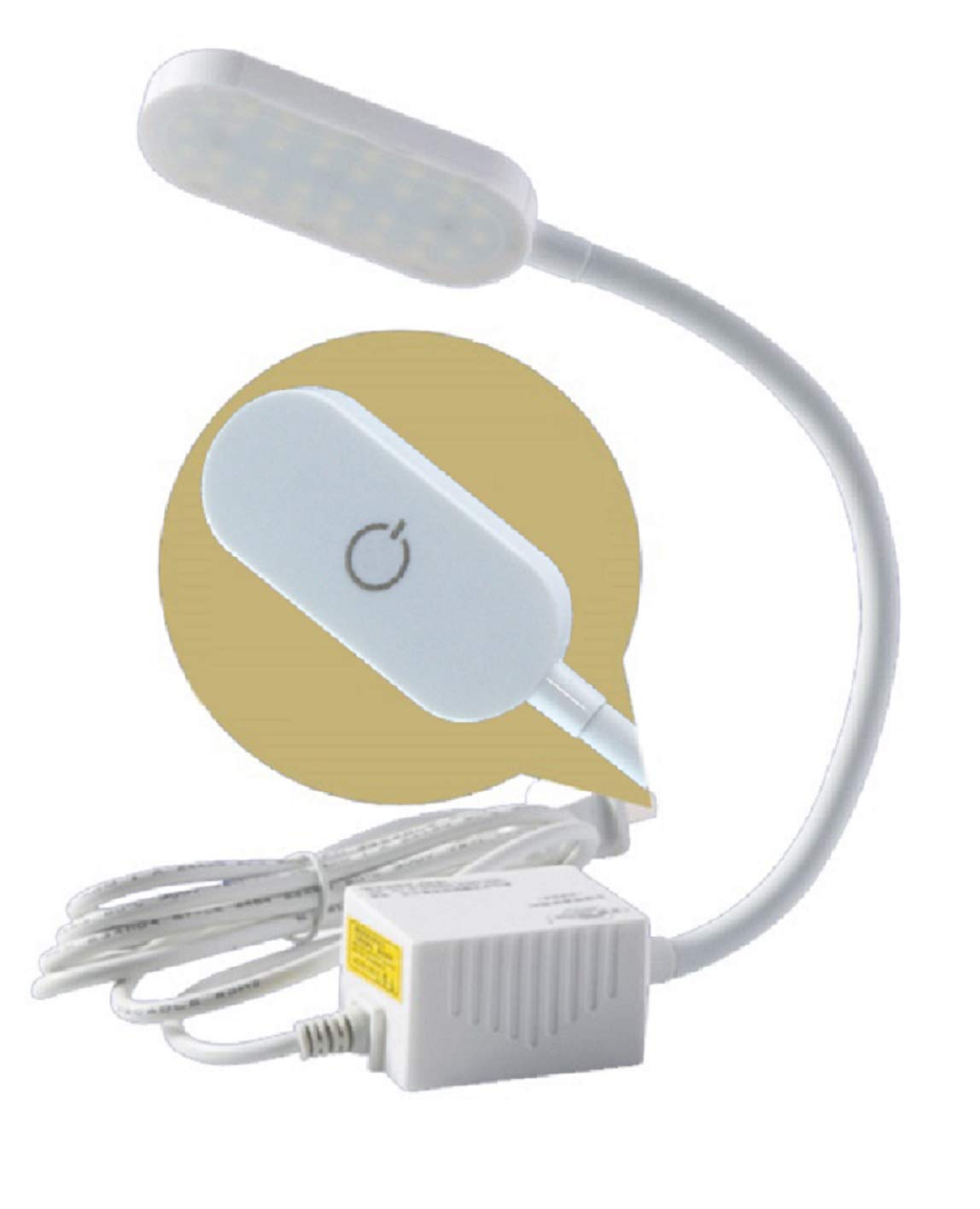

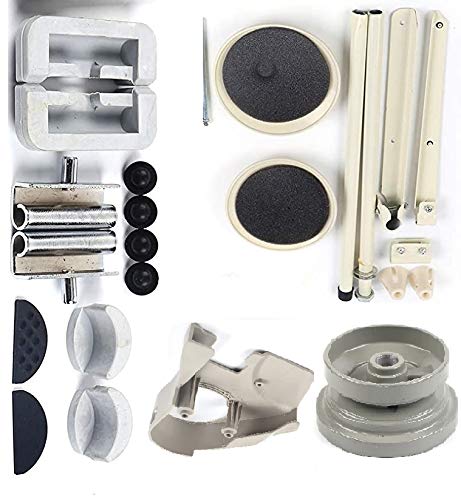

💥Juki DDL-8700 standard version ✅Included accessories in the machine Juki DDL head: : Bobbin Winder Thread Stand Machine Oil Instruction Manual Oil Pan Knee Lifter V Belt ✅Juki DDL serie Single Needle Lockstitch Industrial Sewing Machine dont have the walking foot mechanisms. ( NOT a walking foot) ✅Lockstitch Maximum foot lift: 13 mm Maximum stitch length: 5 mm Maximum stitches: 6 stitches per inch. Needles: 9-18 DBX1 (16x231) up to size 19 Sewing Speed max.: 5,500 spm Stitch Length max.: 5 mm Presser Foot Lift by hand, max.: 5.5 mm; by knee, max. 13 mm Needle Bar Stroke 30.7 mm Hook: auto-lubricating full rotary hook Industrial Sewing Machiine ✅It comes complete with sewing machine table and Electronic DC Servo Motor 3/4 H.P, 1 PHASE, 110 VOLT, 0 ~3300 RPM,(drawer, belt, tools, led lamp and instruction manual) brand new, packed in sealed boxes and never been used before . ✅Professional Assembly may required. ✅ASSEMBLY REQUIRED, please note machine comes unassambled, with sewing machine table and Electronic 550 watts Energy saver and Quite Running DC Servo Motor. ✅ 11" Arm Space to Right of Needle. ✅Single-needle Lockstitch Maximum foot lift: 13 mm Maximum stitch length: 5 mm Maximum stitches: 6 stitches per inch. Needles: 9-18 DBX1 (16x231) up to size 19 Sewing Speed max.: 5,500 spm Stitch Length max.: 5 mm Presser Foot Lift by hand, max.: 5.5 mm; by knee, max. 13 mm Needle Bar Stroke 30.7 mm Hook: auto-lubricating full rotary hook Industrial Sewing Machine for apparel/

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

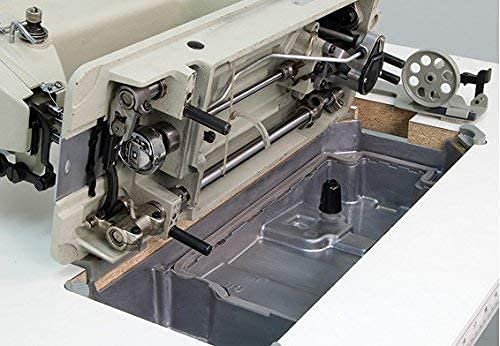

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

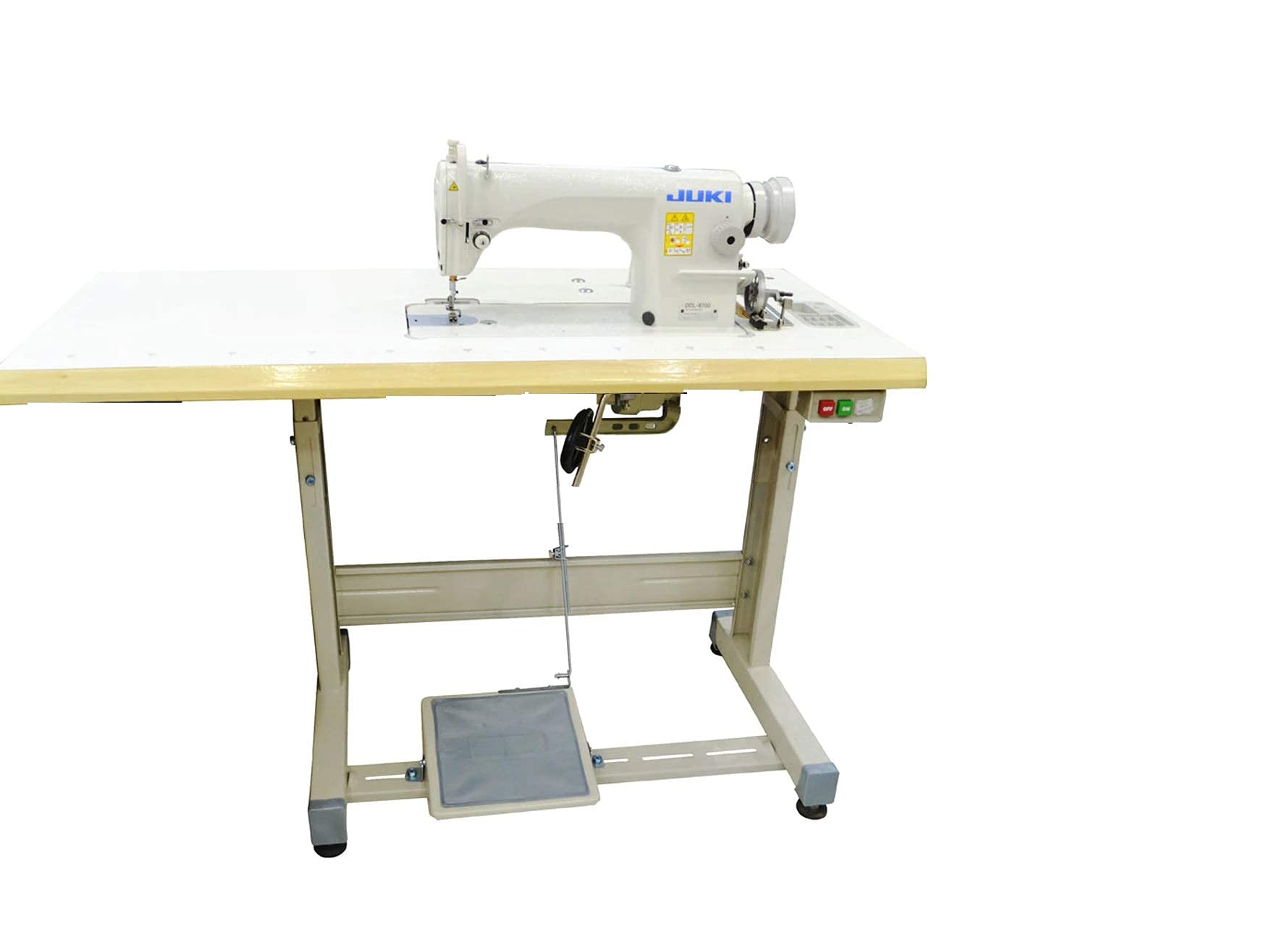

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
