JUKI DU-1481-7 Single Needle Lockstitch Top and Bottom Feed Industrial Machine with Double-capacity Hook with Automatic Thread Trimmer With Table and Built-in Direct Drive Servo Motor

JUKI DU-1481-7 Single Needle Lockstitch Top and Bottom Feed Industrial Machine with Double-capacity Hook with Automatic Thread Trimmer With Table and Built-in Direct Drive Servo Motor

DU-1481-7

Direct-Drive | Double-Capacity Hook | Automatic Thread Trimmer

$4,999.95
$4,999.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

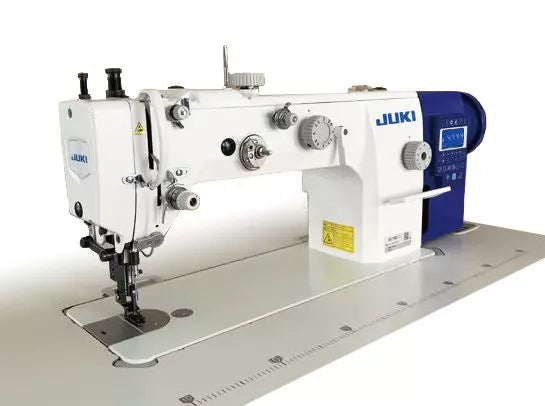

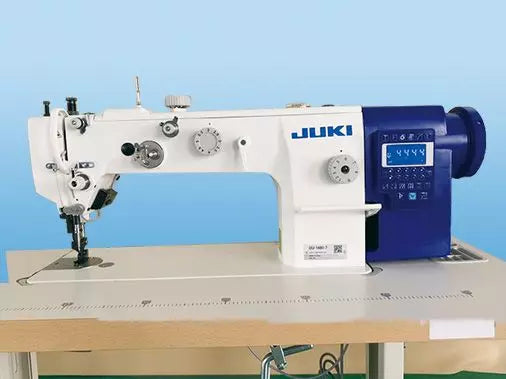

The JUKI DU-1481-7

is a high-performance, top-and-bottom feed (walking foot) industrial machine designed for heavy-duty applications. Unlike standard machines, its feed mechanism ensures that both the top and bottom layers of material are moved in perfect sync, preventing shifting or bunching. Equipped with a Direct-Drive motor and a Double-Capacity Hook, this machine is built for thick threads and high-volume production in upholstery, leatherwork, and heavy textiles.

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the DDL-8700-7. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419 and we’ll be happy to answer everything for you.

  • Integrated Direct-Drive Motor: The motor is built directly into the machine head, providing quiet operation, reduced vibration, and 25% more energy efficiency than belt-driven models.
  • Top and Bottom Feed (Walking Foot): Powerful feeding action ensures smooth sewing of heavy fabrics (denim, leather, canvas) and prevents layers from slipping.

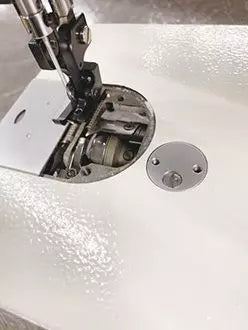

  • Double-Capacity Hook: The extra-large hook and bobbin hold twice the amount of thread as standard hooks, drastically reducing downtime for thread changes.
  • Automatic Thread Trimmer: A high-speed automatic knife trims both threads instantly, increasing production efficiency and reducing waste.
  • Built-in LED Light: Illuminates the needle entry area with adjustable brightness for high-precision stitching.
  • Horizontal-Axis Large Hook: Specifically engineered for thicker threads (up to Tex 90 or V92) common in automotive and furniture upholstery.
  • Application: Heavy weight
  • Max. Sewing Speed: 2200 Stitches per Minute
  • Max. Stitch Length: 9mm (forward / backward)
  • Needle Bar Stroke: 38mm
  • Lift of Presser Foot by Hand: 7 mm
  • Lift of Presser Foot by Knee: 16 mm
  • Needle: DPx17 #23 (#18~#24)
  • Thread: #30~#8
  • Hook: Horizontal-axis full-rotary double-capacity hook
  • Pitch Changing Method: By dial
  • Lubrication: Automatic
  • Lubricating Oil: Machine Oil No. 18 (ISO VG18 equivalent)
  • Alternating Vertical Movement: 2~5.5mm
  • Distance from needle to machine arm: 335mmx150mm
  • Machine head: 37kg

  • Upholstery: Perfect for sofas, chairs, and automotive interiors.
  • Leather Goods: Handbags, wallets, belts, and luggage.
  • Heavy Textiles: Canvas bags, tents, curtains, and banners.
  • Automotive: Seat covers, dashboards, and heavy-duty interior trim.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
