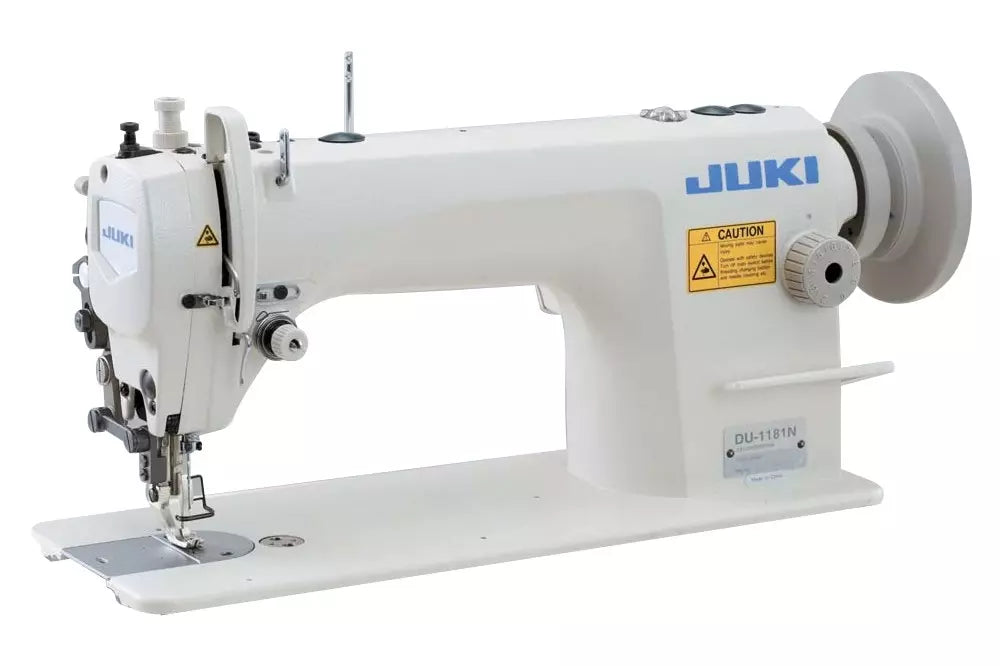

JUKI DU-1181N Single Needle, Straight Stitch, Walking Foot Industrial Sewing Machine With Table and Servo Motor

JUKI DU-1181N Single Needle, Straight Stitch, Walking Foot Industrial Sewing Machine With Table and Servo Motor

DU-1181N

JUKI DU-1181N Single Needle, Straight Stitch, Walking Foot Industrial Sewing Machine With Table and Servo Motor

$1,649.97
$1,649.97 Market price: $2,299.99
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Specifications
  • Manuals & warranty
  • Servo Motor
  • More accessories

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the DDL-1181N. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419 and we’ll be happy to answer everything for you.

JUKI DU-1181N

Single Needle, Straight Stitch, Walking Foot Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

With its strong top and bottom feed mechanism, the machine insures the smooth feeding of hard-to-feed materials or multilayered sections of materials to achieve consistent seam quality that is free from irregular stitch pitches. The automatic lubricating mechanism dramatically improves maintainability of the machine.

MACHINE SPECIFICATIONS:

  • Max. sewing speed: 2,000 stitches per minute
  • Max. stitch length: 9mm (forward/backward)
  • Needle bar stroke: 36.5mm
  • Lift of the presser foot by hand: 5.5mm
  • Lift of the presser foot by knee: 15mm
  • Thread take-up: Link type
  • Alternating vertical movement: 2～5mm
  • Hook: Horizontal-axis full-rotary double-capacity hook
  • Needle: (at the time of delivery) DP×17 (#21) #14～#23＊
  • Bobbins: Metal "M" Bobbin #18034
  • Thread: #40~#8, B33~B92, Nm=90/3~30/3
  • Pitch changing method: By dial
  • Knee-lifter mechanism: Built on the machine head
  • Lubrication: Automatic
  • Lubricating oil: JUKI MACHINE OIL No.7 (equivalent to ISO VG7)
  • Distance from needle to machine arm: 261mm
  • Bed size: 477mm × 178mm
  • Weight of the machine head: 31kg

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h3><strong><u>ACCESSORIES for the JUKI DU-1181N</u></strong></h3>
<div class="row">
<div class="col-lg-6">

<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17 (#14-#23)</a> <br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/large-m-style-bobbins-18034.htm" target="_blank">Large "M" Style Bobbins #18034</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-m-size-18045.htm" target="_blank">Metal "M" Size #18045<br></a><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-juki-400-21615.htm" target="_blank">Needle Plate /Throat Plate #400-21615<br></a><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-juki-400-21621.htm" target="_blank">Feed Dog JUKI #400-21621</a></p>

<br>
<h3><strong>COMPATIBLE ATTACHMENTS</strong></h3>
<p><strong><em>BINDERS/FOLDERS<br></em></strong><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder/Binding Attachment Folder #508L</a><br><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank">Raw Edge Binder Set #S64​</a><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank"><br>Raw Edge Plain Tape Binder Binding Attachment #100LS</a><a href="https://www.goldstartool.com/right-angle-binder-set-s60.htm" target="_blank"><br>Right Angle Binder Set #S60</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder/Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/industrial-cover-stitch-collarette-bindertop-mount-style-clean-finish-double-fold.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p>

</div>
<div class="col-lg-6">

<h3><strong>COMPATIBLE PRESSER FOOT OPTIONS</strong></h3>
<p><a href="https://www.goldstartool.com/double-welting-piping-cording-industrial-walking-presser-foot-set-u-192-u-193kw.htm" target="_blank">Double Welting / Piping / Cording Presser Foot Set U-192+U-193KW</a><br><a href="https://www.goldstartool.com/edge-guide-walking-presser-foot-set-6601-3-u193sg.htm" target="_blank">Edge Guide Walking Presser Foot Set #6601-3, U193SG</a><br><a href="https://www.goldstartool.com/left-narrow-close-sewing-welting-industrial-walking-presser-foot-set-3130l-3111l.htm" target="_blank">Left Narrow Close Sewing Welting Presser Foot Set #3130L, 3111L</a><br><a href="https://www.goldstartool.com/edge-guide-walking-presser-foot-set-6601-3-u193sg.htm" target="_blank">Left Toe Zipper Walking Presser Foot Set #U192LS, U193K</a><br><a href="https://www.goldstartool.com/open-toe-walking-presser-foot-set-u192-u193s.htm" target="_blank">Open Toe Walking Presser Foot Set #U192, U193S</a><br><a href="https://www.goldstartool.com/right-edge-guide-topstitch-industrial-walking-presser-foot-19034.htm" target="_blank">Right Edge Guide Topstitch Presser Foot #19034</a><br><a href="https://www.goldstartool.com/right-toe-zipper-walking-presser-foot-set-u192r-u193r.htm" target="_blank">Right Toe Zipper Walking Presser Foot Set #U192R, U193R</a><br><a href="https://www.goldstartool.com/standard-with-no-teeth-walking-presser-foot-set-u192-u193.htm" target="_blank">Standard w/ No Teeth Walking Presser Foot Set #U192, U193</a><br><a href="https://www.goldstartool.com/standard-with-teeth-walking-presser-foot-set-u192-u193-.htm" target="_blank">Standard w/ Teeth Walking Presser Foot Set #U192, U193</a><br><a href="https://www.goldstartool.com/tiny-toe-zipper-cording-welting-piping-industrial-walking-presser-foot-set.htm" target="_blank">Tiny Toe Zipper/Cording/Welting/Piping Presser Foot Set #U192T, U193T</a><br><a href="https://www.goldstartool.com/tiny-toe-zipper-cording-welting-piping-industrial-walking-presser-foot-set-u192ls-u193t.htm" target="_blank">Tiny Toe Zipper/Cording/Welting/Piping Presser Foot Set #U192LS, U193T</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-u67-u68-.htm" target="_blank">Welting/Piping/Cording Walking Presser Foot Set #U67, U68</a><br><a href="https://www.goldstartool.com/welting-piping-cording-with-groove-walking-presser-foot-set-u192lc-193ku.htm" target="_blank">Welting/Piping/Cording With Groove Walking Presser Foot Set #U192LC, 193KU</a><br><a href="https://www.goldstartool.com/welting-piping-with-groove-walking-presser-foot-set-u192k-u193k.htm" target="_blank">Welting/Piping With Groove Walking Presser Foot Set #U192K, U193K</a><br><a href="https://www.goldstartool.com/zipper-binding-walking-presser-foot-set-601-3-521bw.htm" target="_blank">Zipper/Binding Walking Presser Foot Set #601-3, 521BW</a></p>

</div>
</div>

ACCESSORIES for the JUKI DU-1181N

Needles: Sewing Machine Needles 135x17 (#14-#23) Bobbins: Large "M" Style Bobbins #18034Bobbin Case: Metal "M" Size #18045Needle Plate: Needle Plate /Throat Plate #400-21615Feed Dog: Feed Dog JUKI #400-21621

COMPATIBLE ATTACHMENTS

BINDERS/FOLDERSDouble Fold Binder/Binding Attachment Folder #508LRaw Edge Binder Set #S64​Raw Edge Plain Tape Binder Binding Attachment #100LSRight Angle Binder Set #S60Double Fold Binder/Binding Attachment Folder #508LTop Mount Collarette Binder Top CleanTable Mount Coverstitch Collarette Binder #S124A

HEMMERSingle Fold Up Turn Hemmer #S75U

BUTTONHOLERButtonholer Attachment #YS-4455

RUFFLERDeluxe Ruffler Attachment for Industrial Sewing Machines #G900E

COMPATIBLE PRESSER FOOT OPTIONS

Double Welting / Piping / Cording Presser Foot Set U-192+U-193KWEdge Guide Walking Presser Foot Set #6601-3, U193SGLeft Narrow Close Sewing Welting Presser Foot Set #3130L, 3111LLeft Toe Zipper Walking Presser Foot Set #U192LS, U193KOpen Toe Walking Presser Foot Set #U192, U193SRight Edge Guide Topstitch Presser Foot #19034Right Toe Zipper Walking Presser Foot Set #U192R, U193RStandard w/ No Teeth Walking Presser Foot Set #U192, U193Standard w/ Teeth Walking Presser Foot Set #U192, U193Tiny Toe Zipper/Cording/Welting/Piping Presser Foot Set #U192T, U193TTiny Toe Zipper/Cording/Welting/Piping Presser Foot Set #U192LS, U193TWelting/Piping/Cording Walking Presser Foot Set #U67, U68Welting/Piping/Cording With Groove Walking Presser Foot Set #U192LC, 193KUWelting/Piping With Groove Walking Presser Foot Set #U192K, U193KZipper/Binding Walking Presser Foot Set #601-3, 521BW

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase-DU-1181N

Comparing the DDL-8700 and Juki DU-1181N

Tutorial How to Assemble Juki DU-1181N Walking Foot - Goldstartool

Product Showcase-Juki 1181N & 508LS Double Fold Binder Attachment -Goldstartool.com - 800-868-4419

JUKI DU-1181N and Consew 206RB-5 Sewing Machine Comparison

Product Showcase -The JUKI DU-1181N Ultimate Challenge

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
