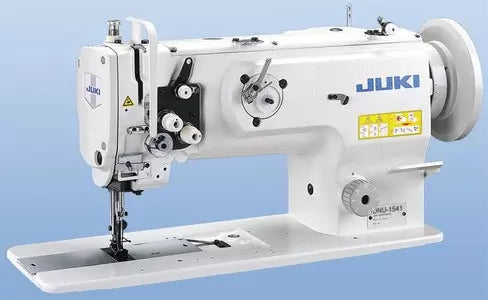

Juki DNU-1541 Single Needle Unison-Feed Walking Foot Industrial Sewing Machine

Juki DNU-1541 Single Needle Unison-Feed Walking Foot Industrial Sewing Machine

DNU-1541

Heavy-Duty Lockstitch Machine with Table and High-Torque Servo Motor

$2,099.95
$2,099.95 Market price: $3,200.00
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

Juki DNU-1541

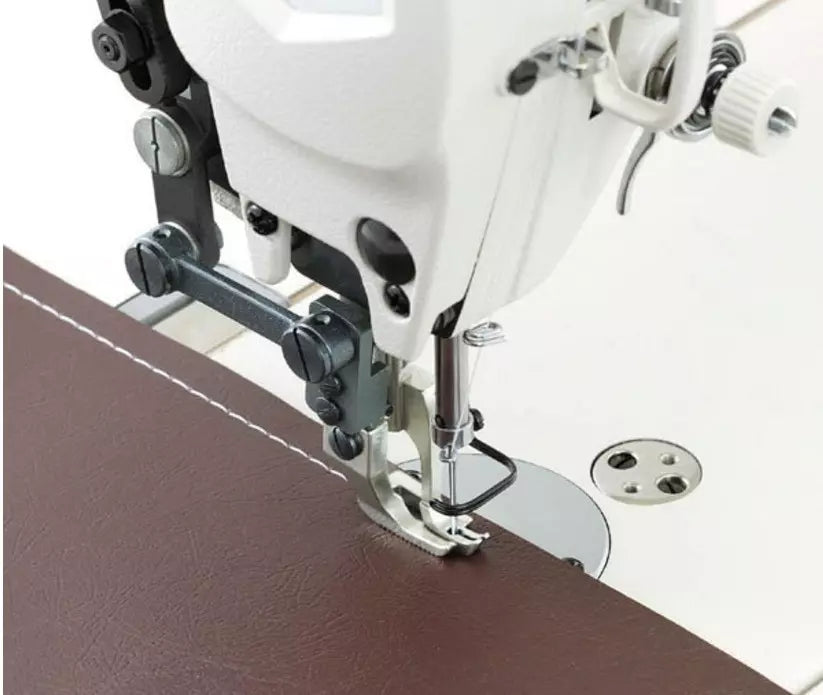

is a world-class industrial sewing machine engineered to handle the toughest materials with ease. Its unison-feed (walking foot) mechanism ensures that the needle, feed dog, and presser foot move in perfect synchronization, providing a powerful, steady feed that prevents material layers from shifting. Whether you are sewing thick leather or multi-layered synthetics, the DNU-1541 delivers a consistent, high-quality stitch that is the hallmark of professional manufacturing.

  • Powerful Unison Feed: The triple-feed system provides remarkable traction, ensuring that even "sticky" or heavy materials feed smoothly without gathering or ply-shifting.
  • Large Horizontal-Axis Hook: Features a double-capacity bobbin, allowing you to sew longer runs with heavy thread before needing to stop for a bobbin change.
  • Higher Needle Stroke: A 36mm needle bar stroke provides the extreme piercing power required for dense leathers and industrial webbing.
  • Superior Stitch Quality: Designed with an optimized thread take-up and tension system that creates beautiful, balanced seams across a wide range of thread sizes.
  • High Presser Foot Clearance: A generous 16mm knee lift makes it easy to position bulky items like car seats, heavy bags, or furniture covers.
  • Energy-Efficient Servo Motor: Replaces traditional clutch motors with a quiet, adjustable-speed servo motor that saves up to 90% on electricity while offering stitch-by-stitch precision.
  • Max. Sewing Speed: 2,500 Stitches per Minute (SPM)
  • Max. Stitch Length: 9mm
  • Needle Bar Stroke: 36mm
  • Presser Foot Lift: 9mm (Hand) / 16mm (Knee)
  • Needle System: 135x17 (Recommended sizes Nm125 to Nm180)
  • Thread Sizes: #30 to #5 (B46 to B138 / V138)
  • Hook Type: Horizontal-axis double-capacity hook
  • Alternating Vertical Movement: 2.5mm – 6.5mm
  • Lubrication: Centralized oil wick (Hook: Automatic)
  • Bed Size: 477mm x 178mm

The DNU-1541 is the "gold standard" for professionals working in:

  • Automotive & Marine: Leather car seats, interior panels, boat covers, and sails.
  • Leathercraft: Handbags, wallets, heavy belts, and luggage.
  • Upholstery: Sofas, heavy curtains, and commercial furniture.
  • Tactical Gear: Tents, tarpaulins, backpacks, and safety webbing.

DOWNLOADS:

U.S. WARRANTY

90 Days labor on defects in materials and workmanship.

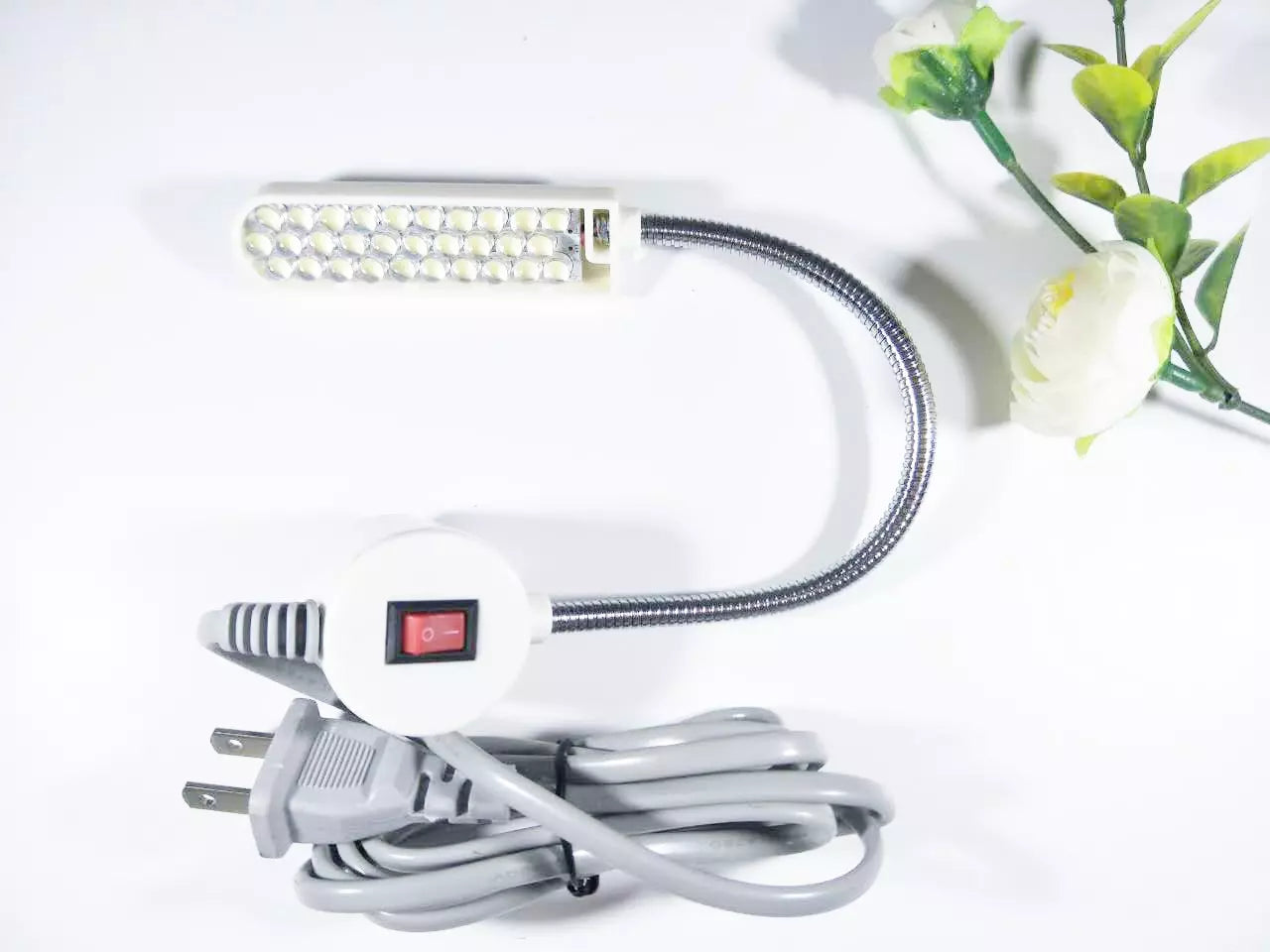

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2>ACCESSORIES for the JUKI DNU-1541</h2>
<div class="row">
<div class="col-lg-auto">
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/large-m-style-bobbins-18034.htm" target="_blank">Large "M" Style Bobbins #18034</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-m-size-18045.htm" target="_blank">Bobbin Case - Metal "M" Size #18045</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-juki-214-10006.htm" target="_blank">Needle Plate - JUKI #214-10006</a><br><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank">Feed Dog - JUKI #400-19908<br></a><br><em><strong>PRESSER FOOT KIT<br></strong></em><a href="https://www.goldstartool.com/walking-foot-presser-foot-kit-18-sets-of-feet.htm" target="_blank">Walking Foot Presser Foot Kit - 18 Sets of Feet</a>
<a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br></a></p></div>
<div class="col-lg">

<strong><em>COMPATIBLE PRESSER FOOT OPTIONS</em><br></strong><a href="https://www.goldstartool.com/with-teeth-walking-presser-foot-set-10796t-10795t.htm" target="_blank">With Teeth Walking Presser Foot Set #10796T, 10795T</a><br><a href="https://www.goldstartool.com/without-teeth-walking-presser-foot-set-10796-10795.htm" target="_blank">Without Teeth Walking Presser Foot Set #10796, 10795</a><br><a href="https://www.goldstartool.com/zcording-welting-piping-industrial-walking-presser-foot-set-s84-s83-.htm" target="_blank">Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83<br></a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-s31-s32.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #S31, S32</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795K</a><br><a href="https://www.goldstartool.com/cut-out-welting-presser-foot-set.htm" target="_blank">Cut Out Welting Presser Foot Set #S68</a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/zipper-cording-welting-piping-industrial-walking-presser-foot-set-s94-s93-.htm" target="_blank">Zipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93</a><br><a href="https://www.goldstartool.com/left-edge-guide-topstitch-industrial-walking-presser-foot-s585l.htm" target="_blank">Left Edge Guide Topstitch Industrial Walking Presser Foot #S585L<br></a><a href="https://www.goldstartool.com/right-edge-guide-topstitch-industrial-walking-presser-foot-s585r.htm" target="_blank">Right Edge Guide Topstitch Industrial Walking Presser Foot #S585R<br></a><a href="https://www.goldstartool.com/left-triple-transport-walking-presser-foot-set-10796l-10795l.htm" target="_blank">Left Triple Transport Walking Presser Foot Set #10796L, 10795L<br></a><a href="https://www.goldstartool.com/right-triple-transport-industrial-walking-presser-foot-set-10796r-10795r.htm" target="_blank">Right Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R</a><br>
<p></p><h3>OTHER ATTACHMENTS</h3>
<p><em><strong>BINDERS/FOLDERS</strong><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank"><br></a></em><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank">Raw Edge Binder Set #S64​</a><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank"><br>Raw Edge Plain Tape Binder Binding Attachment #100LS</a><a href="https://www.goldstartool.com/right-angle-binder-set-s60.htm" target="_blank"><br>Right Angle Binder Set #S60</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p>
<p><strong><em>GUIDES<br></em></strong><a href="https://www.goldstartool.com/practical-suspended-edge-guide-gb-6-juki-mah-15201-0a0.htm" target="_blank">Practical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0</a></p>


</div>
</div>

ACCESSORIES for the JUKI DNU-1541

Needles: Sewing Machine Needles 135x17Bobbins: Large "M" Style Bobbins #18034Bobbin Case: Bobbin Case - Metal "M" Size #18045Needle Plate: Needle Plate - JUKI #214-10006Feed Dog: Feed Dog - JUKI #400-19908PRESSER FOOT KITWalking Foot Presser Foot Kit - 18 Sets of Feet

COMPATIBLE PRESSER FOOT OPTIONSWith Teeth Walking Presser Foot Set #10796T, 10795TWithout Teeth Walking Presser Foot Set #10796, 10795Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83Welting / Piping / Cording Walking Presser Foot Set #S31, S32Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795KCut Out Welting Presser Foot Set #S68Zipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93Left Edge Guide Topstitch Industrial Walking Presser Foot #S585LRight Edge Guide Topstitch Industrial Walking Presser Foot #S585RLeft Triple Transport Walking Presser Foot Set #10796L, 10795LRight Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R

OTHER ATTACHMENTS

BINDERS/FOLDERSRaw Edge Binder Set #S64​Raw Edge Plain Tape Binder Binding Attachment #100LSRight Angle Binder Set #S60Double Fold Binder / Binding Attachment Folder #508LTop Mount Collarette Binder Top CleanTable Mount Coverstitch Collarette Binder #S124A

HEMMERSingle Fold Up Turn Hemmer #S75U

BUTTONHOLERButtonholer Attachment #YS-4455

RUFFLERDeluxe Ruffler Attachment for Industrial Sewing Machines #G900E

GUIDESPractical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Juki DNU-1541 Ultimate Test - Goldstartool.com

Product Showcase - JUKI DNU-1541S & S75U/S75D Folders - Goldstartool.com - 800-868-4419

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
