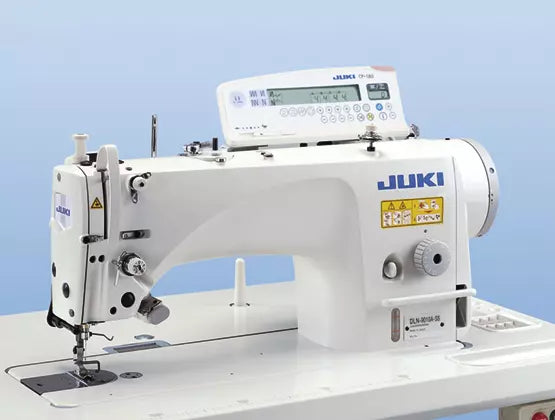

JUKI DLN-9010A-SS High-Speed Needle Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

JUKI DLN-9010A-SS High-Speed Needle Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

DLN-9010A-SS

High-Speed Needle Feed type DDL-9000 Series Lockstitch Industrial Sewing Machine With Table and Servo Motor which is JUKI's top-of-the-line lockstitch machine series with a thread trimmer.

$4,499.95
$4,499.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI DLN-9010A-SS

is a premium, high-speed needle-feed lockstitch machine that sets the industrial standard for accuracy and clean production. As part of Juki’s top-tier DDL-9000 series lineage, it features a direct-drive system and an "oil pan-less" design, making it the ideal choice for high-end apparel manufacturing where fabric slippage and oil stains must be eliminated.

  • Advanced Needle Feed Mechanism: Synchronized needle and feed dog movement prevents "ply-shifting" (uneven feeding of fabric layers). This ensures precise stitch lengths and perfectly matched seams on slippery or difficult-to-feed materials.
  • Integrated Direct-Drive System: The compact AC servo motor is connected directly to the main shaft, providing rapid start-up, exceptional stop accuracy, and reduced noise/vibration.
  • Oil Pan-Less Design (Semi-Dry Head): Eliminates the traditional oil pan to create a pristine work environment. Minute-quantity lubrication is supplied only to the hook and needle bar, virtually removing the risk of oil stains on garments.
  • Automatic Functions: Equipped with a high-speed automatic thread trimmer (1.5x faster than conventional models), automatic backtacking, and a built-in bobbin winder with a thread-cutting knife.
  • Micro-Lifter Standard: Features a screw-adjustable micro-lifter that allows the presser foot to "float" slightly above the fabric—essential for sewing elastic or delicate materials without damaging the fibers.
  • Wider Work Area: A generous 300mm (11.8") distance from the needle to the machine arm provides ample space for handling large panels and bulky outerwear.
  • Application: For light to medium-weight materials
  • Max sewing speed: 5,000sti/min
  • Max stitch length: 4.5mm 1
  • Lift of the presser foot by hand: 5.5mm
  • Lift of the presser foot by knee: 15mm (max)
  • Lift of the presser foot by auto: 10mm
  • Needle (at time of delivery): DB×1 (#21) #20～#23, For JE:134(Nm130) Nm120～Nm160
  • Hook: Automatic-lubricating full-rotary hook
  • Lubrication: Minute-quantity lubrication to needle bar and hook
  • Lubricating Oil: JUKI New Defrix Oil NO.1 (equivalent to ISO VG7)
  • Distance from Needle to Machine Arm: 300mm
  • Size of Bed: 517mm×178mm
  • Total Weight: 83.5kg
  • Bobbin Thread Winder: Built-in the machine head
  • Machine Head Drive: Compact AC servomotor that is directly connected to the main shaft (direct-drive system)
  • The maximum sewing speed is 5,000 stitches per minute or less in cases where the maximum stitch length is 3.5mm or more.

  • High-End Apparel: Ideal for runstitching men’s shirts, blouses, and dresses where seam puckering is unacceptable.
  • Outerwear: Perfect for light jackets and tailored coats that require precise topstitching.
  • Slippery Fabrics: Best-in-class performance for silks, satins, synthetics, and Lycra.
  • Part Attaching: Efficiently handles the attachment of pockets, collars, and cuffs with high repeatability.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
