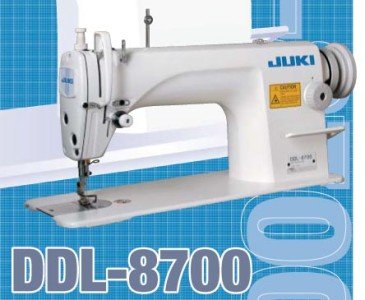

Brand New JUKI DDL-8700 High-Speed, 1-Needle, Lockstitch Industrial Sewing Machine. Machine Head Only. Table top and power stand is not included in this purchase. Sewing mechanism that demonstrates outstanding responsiveness to material to be sewn. By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, the machine flexibly responds to various kinds of materials and produces beautiful seams of consistent quality. Maintainability was improved. Enhanced maintainability is ensured by the improved machine head, such as incorporation of an eccentric pin that is used to adjust the feed dog. In addition, the machine is provided with a mounting seat for attachment to improve workability while replacing the attachment and increasing the durability of the machine bed surface. The machine has easy-to operate functions to achieve improved operability. By providing a presser foot with a higher lift(13mm), a light-touch stitch dial, a throat plate with marker grooves that can be used as guide for seam allowance, and other easy-to-operate functions, the burden on the operator is lightened, and productivity is further increased. Features : Single Needle Lockstitch Up To 5500 Stitches Per Minute Fully Automatic Lubrication 1/2 Inch Foot Lift By Knee Lever 1/4 Inch Foot Lift by Hand Lever Maximum 5mm Stitch Length at the longest stitch length setting Minimum 6 Stitches Per Inch at the longest stitch length setting. Industrial Sewing Machine for apparel/interior fabrics, not upholstery US Warranty: 90 Days labor on defects in materials and workmanship. Specifications : Maximum foot lift: 13 mm Maximum stitch length: 5 mm Maximum stitches: 6 stitches per inch. Needles: 9-18 DBX1 (16x231) up to size 19 Sewing Speed max. 5,500 spm Stitch Length max. 5 mm Presser Foot Lift by hand, max. 5.5 mm; by knee, max. 13 mm Needle Bar Stroke 30.7 mm Hook auto-lubricating full rotary hook
JUKI DDL-8700 FAQs
What kind of needles do you use in the DDL-8700?
The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.
Where does the machine oil go?
A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.
What kind of oil does this machine require?
You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.
What size table can I get with this machine?
Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.
Does the DDL 8700 make buttonholes?
No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
