JUKI DDL-9000C-FMS Full Digital, Semi-Dry Head, Direct-Drive Lockstitch Industrial Sewing Machine

JUKI DDL-9000C-FMS Full Digital, Semi-Dry Head, Direct-Drive Lockstitch Industrial Sewing Machine

DDL-9000C-FMS

This is the ultimate machine for manufacturers who need to switch between different fabric types frequently without manual mechanical adjustments.

$2,799.95
$2,799.95 Market price: $3,200.00 Save 12%
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

JUKI DDL-9000C-FMS

is the world’s leading digital sewing system, designed for high-end garment manufacturing that requires absolute precision and repeatabilty. This "Full Digital" model allows every sewing parameter—including feed motion, thread tension, and needle timing—to be set digitally via a touchscreen control panel or a smartphone app.

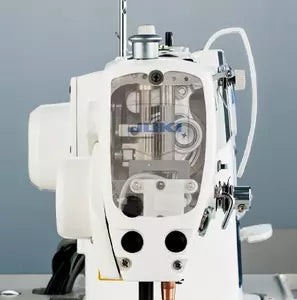

The Semi-Dry Head technology eliminates oil stains on your fabrics by using solid grease for the needle bar, while the direct-drive motor ensures a near-silent, vibration-free sewing experience.

  • High-End Fashion: Ideal for silk, satin, and delicate synthetics where oil stains are a risk.
  • Light to Medium Apparel: Shirts, blouses, dresses, and trousers.
  • Technical Fabrics: Performance wear and microfibers that require precise tension control.
  • Uniforms: Reliable, high-speed production for medical and corporate wear.
  • Full Digital Adjustment: Digitally control the feed dog height, pitch, and motion (box feed) directly from the touch panel.

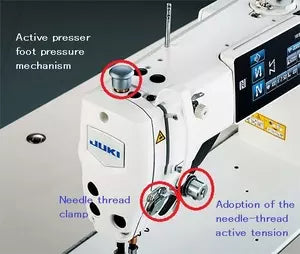

  • Active Tension: Electronic thread tension allows you to set different tensions for the beginning, middle, and end of a seam to prevent bird-nesting and puckering.
  • Semi-Dry Technology: The needle bar and thread take-up are lubricated with solid grease, ensuring your high-value garments remain 100% oil-stain free.

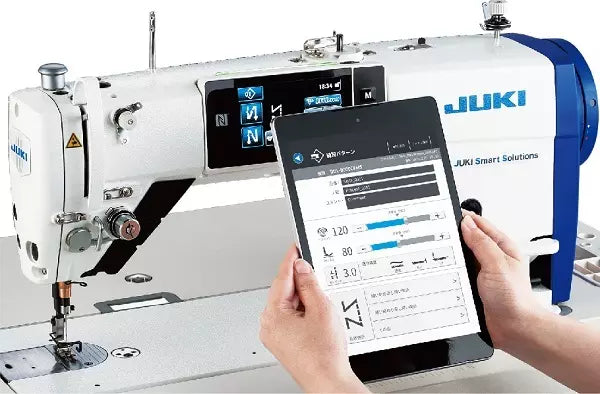

  • NFC/App Integration: Transfer machine settings wirelessly between multiple units using the JUKI Smart App, ensuring identical stitch quality across an entire production line.
  • Auto-Lifter & Thread Trimmer: Equipped with a high-speed automatic thread trimmer and an electric foot lift for maximum efficiency.
  • Color Touch Panel: A user-friendly interface that provides real-time data on production volume and machine status.
  • Max Speed: 5,000 SPM (Stitches Per Minute)
  • Max Stitch Length: 5.0mm
  • Presser Foot Lift: 15mm (Auto-lift) / 5.5mm (Hand)
  • Needle System: DB x 1 (#9 to #18)
  • Lubrication: Semi-dry / Minute-quantity (Crank & Needle bar: Grease; Hook: Oil)
  • Feed Motion: Digital Box Feed
  • Motor Type: Integrated Direct-Drive Servo Motor (110V or 220V)
  • Thread Trimmer: Double-blade drive (leaves 3mm tail)

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h3><strong><u>ACCESSORIES for the JUKI DDL-9000C-FMS</u> </strong></h3>
<div class="row">
<div class="col-lg-6">
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/standard-industrial-sewing-machine-needles.htm" target="_blank">Standard Industrial Needles (Size #9-#18)</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/metal-bobbins-for-single-needle-industrial-industrial-sewing-machines-270010.htm" target="_blank">Metal Bobbins for Single Needle Industrial #270010</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-class-95-52237.htm" target="_blank">Bobbin Case Metal Class 95 — Singer #52237</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-for-most-single-needle-industrial-sewing-machines.htm" target="_blank">Needle Plate /Throat Plate<br></a><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-for-light-weight-industrial-sewing-machines-singer-149057.htm" target="_blank">Light-Weight</a>, <a href="https://www.goldstartool.com/feed-dog-for-medium-weight-industrial-sewing-machines-singer-149159.htm" target="_blank">Medium-Weight</a>, <a href="https://www.goldstartool.com/feed-dog-for-heavy-weight-industrial-sewing-machines-singer-149165.htm" target="_blank">Heavy-Weight</a><br><strong>Needle Plate/Feed Dog Combo:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-feed-dog-for-most-industrial-lockstitch-sewing-machines-combo.htm" target="_blank">Needle Plate/Feed Dog Combo<br></a></p>
<p><strong><em>ACCESSORY KITS</em><strong><u><br></u></strong></strong><a href="https://www.goldstartool.com/starter-kit-for-industrial-sewing-machines.htm" target="_blank">Starter Kit For Industrial Sewing Machines<br></a><a href="https://www.goldstartool.com/deluxe-spare-parts-kit-for-industrial-lockstitch-sewing-machines.htm" target="_blank">Deluxe Kit For Industrial Sewing Machines</a><strong><em></em></strong></p>
<p><strong><em>PRESSER FOOT KITS</em></strong><br><a href="https://www.goldstartool.com/5-pack-industrial-high-shank-presser-feet.htm" target="_blank">5 Pack Industrial High Shank Presser Feet</a><br><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank">Glide-On Industrial High Shank Presser Feet (5 Pack)</a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><br></p>
<p><em><strong>SEWING GUIDES & GAUGES</strong></em><a href="https://www.goldstartool.com/magnetic-sewing-machine-gauge.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/magnetic-sewing-machine-gauge.htm" target="_blank">Magnetic ​Sewing Machine Gauge Guide</a><br><a href="https://www.goldstartool.com/quilters-swing-sewing-guide-for-industrial-sewing-machines.htm" target="_blank">Quilters Swing Sewing Guide</a><br><a href="https://www.goldstartool.com/industrial-sewing-machine-swing-gauge-5812.htm" target="_blank">Swing Gauge #5812</a><a href="https://www.goldstartool.com/sewing-machinest-gauge-2-1-2.htm" target="_blank"><br>T Gauge (2-1/2")</a><a href="https://www.goldstartool.com/adjustable-seam-guide-sewing-adjustable-seam-guide-for-industrial-single-needle-sewing-machine.htm" target="_blank"><br>Adjustable Seam Guide</a><a href="https://www.goldstartool.com/sewing-machine-3-corner-gauge-25873.htm" target="_blank"><br>Sewing Machine 3 Corner Gauge #25873</a></p>
<p></p><br>
<h3><strong>COMPATIBLE PRESSER FOOT OPTIONS</strong></h3>
<p><strong><em>ZIPPER/CORDING/WELTING/PIPING<br></em></strong><a href="https://www.goldstartool.com/invisible-zipper-presser-foot-s518.htm" target="_blank">Invisible Zipper Presser Foot #S518<br></a><a href="https://www.goldstartool.com/split-hinged-zipper-presser-foot-40322sh.htm" target="_blank">Split Hinged Zipper Presser Foot #40322SH<br></a><a href="https://www.goldstartool.com/narrow-right-hinged-cording-foot-for-industrial-lockstitch-sewing-machines-12435hn.htm" target="_blank">Narrow Right Hinged Cording Foot #12435HN<br></a><a href="https://www.goldstartool.com/narrow-left-hinged-cording-foot-for-industrial-lockstitch-sewing-machines-31358hn.htm" target="_blank">Narrow Left Hinged Cording Foot #31358HN<br></a><a href="https://www.goldstartool.com/wide-left-hinged-cording-zipper-foot-31358hwl-p36l.htm" target="_blank">Wide Left Hinged Cording/Zipper Foot #31358HWL-P36L<br></a><a href="https://www.goldstartool.com/wide-right-hinged-cordingzipper-foot-12435hwr-p36r.htm" target="_blank">Wide Right Hinged Cording/Zipper Foot #12435HWR-P36<br></a><a href="https://www.goldstartool.com/high-shank-double-welting-piping-foot-for-industrial-single-needle-sewing-machines-36069dg.htm" target="_blank">High Shank Double Welting/Piping Foot #36069DG<br></a><a href="https://www.goldstartool.com/metal-piping-foot-high-shank-right-or-left.htm" target="_blank">Metal Piping Foot (Right Or Left) #36069L, 36069R<br></a><a href="https://www.goldstartool.com/welting-piping-cording-presser-foot-767415000-767414009.htm" target="_blank">Welting/Piping/Cording Presser Foot #767415000</a></p>
<p><strong><em>COMPENSATING<br></em></strong><a href="https://www.goldstartool.com/left-compensating-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Left Compensating Presser Foot<br></a><a href="https://www.goldstartool.com/right-compensating-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Right Compensating Presser Foot<br></a><a href="https://www.goldstartool.com/compensating-binder-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Compensating Binder Presser Foot<br></a><a href="https://www.goldstartool.com/compensating-foot-211-14.htm" target="_blank">Compensating Foot 211-14</a></p>
<p><strong><em>SHIRRING/GATHERING<br></em></strong><a href="https://www.goldstartool.com/shirring-gathering-foot-for-industrial-lockstitch-sewing-machines.htm" target="_blank">Shirring/Gathering Foot #120828<br></a><a href="https://www.goldstartool.com/shirring-gathering-with-adjustable-blocks-for-industrial-lockstitch-sewing-machines-s950.htm" target="_blank">Shirring/Gathering With Adjustable Blocks #S950<br></a><a href="https://www.goldstartool.com/shirring-gathering-screw-adjusting-presser-foot-s952.htm" target="_blank">Shirring/Gathering Screw Adjusting Presser Foot #S952<br></a><a href="https://www.goldstartool.com/shirring-gathering-tape-guide-elastic-adjustable-presser-foot-for-industrial-sewing-machines-s537.htm" target="_blank">Shirring/Gathering Tape Guide Elastic Adjustable Presser Foot #S537</a></p>
<p><strong><em>GUIDE FOOT</em></strong><br><a href="https://www.goldstartool.com/industrial-sewing-machine-hinged-right-guide-foot.htm" target="_blank">Hinged Right Guide Foot</a></p>
<p><em><strong>BUTTONHOLE FOOT<a href="https://www.goldstartool.com/high-shank-buttonhole-foot.htm" target="_blank"><br></a></strong><a href="https://www.goldstartool.com/high-shank-buttonhole-foot.htm" target="_blank"></a></em><a href="https://www.goldstartool.com/high-shank-buttonhole-foot.htm" target="_blank">High Shank Buttonhole #CY-703H</a><em><strong><strong></strong></strong></em><em><strong></strong></em><em><strong></strong></em><em><strong></strong></em></p>
</div>
<div class="col-lg-6">


<h3><strong>COMPATIBLE PRESSER FOOT OPTIONS (continued)</strong></h3>
<p><strong><em>HEMMER</em></strong><br><a href="https://www.goldstartool.com/shirring-gathering-with-adjustable-blocks-for-industrial-lockstitch-sewing-machines-s950.htm" target="_blank">Ball Hemmer Foot (Double Fold) #490358 <br></a><a href="https://www.goldstartool.com/spring-hemmer-feet-high-shank.htm" target="_blank">Spring Hemmer Foot #490359<br></a><a href="https://www.goldstartool.com/hemming-presser-foot-and-folder-set-f502.htm" target="_blank">Hemming Presser Foot and Folder Set #F502</a></p>
<p><strong><em>CENTER TUBE</em></strong><br><a href="https://www.goldstartool.com/hinged-center-tube-presser-foot-for-industrial-sewing-machine.htm" target="_blank">Hinged Center Tube Presser Foot #S10C</a></p>
<p><strong><em>ROLLER<br></em></strong><a href="https://www.goldstartool.com/small-roller-foot-with-needle-plate-feed-dogs-singer.htm" target="_blank">Small Roller Foot With Needle Plate & Feed Dogs<br></a><a href="https://www.goldstartool.com/large-roller-foot-with-needle-plate-feed-dogs-singer.htm" target="_blank">Large Roller Foot With Needle Plate & Feed Dogs<br></a><a href="https://www.goldstartool.com/spk-high-shank-roller-foot-spk3.htm" target="_blank">SPK Roller Foot #SPK3</a></p>
<p><strong><em>BIAS<br></em></strong><a href="https://www.goldstartool.com/bias-tape-binding-presser-foot-6288.htm" target="_blank">Bias Tape Binding Presser Foot #6288</a></p>
<p><strong><em>STRAIGHT STITCH<br></em></strong><a href="https://www.goldstartool.com/hinged-straight-stitch-presser-foot-p351.htm" target="_blank">Hinged Straight Stitch Presser Foot #P351<br></a><a href="https://www.goldstartool.com/hinged-straight-stitching-foot-24983.htm" target="_blank">Hinged Straight Stitching Foot #24983<br></a><a href="https://www.goldstartool.com/hinged-narrow-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Hinged Narrow Presser Foot #142058N<br></a><a href="https://www.goldstartool.com/heavyweight-straight-stitch-presser-foot-brother-sa173.htm" target="_blank">Heavyweight Straight Stitch Presser Foot - Brother #SA173<br></a><a href="https://www.goldstartool.com/straight-stitch-presser-foot-with-finger-guard-351.htm" target="_blank">Straight Stitch Presser Foot With Finger Guard #351</a></p>
<p><strong><em>GLIDE-ON/TEFLON<br></em></strong><a href="https://www.goldstartool.com/glide-on-invisible-zipper-presser-foot-s518nst.htm" target="_blank">Glide-On Invisible Zipper Presser Foot #S518NST<br></a><a href="https://www.goldstartool.com/glide-on-standard-extended-tail-hinged-presser-foot-mt-18.htm" target="_blank">Glide-On Standard Extended Tail Hinged Presser Foot #MT-18<br></a><a href="https://www.goldstartool.com/glide-on-welting-piping-cording-presser-foot-36069t.htm" target="_blank">Glide-On Welting/Piping/Cording Presser Foot #36069T<br></a><a href="https://www.goldstartool.com/non-stickteflon-foot-high-shank.htm" target="_blank">Non-Stick Glide-On Presser Foot #T-350<br></a><a href="https://www.goldstartool.com/universal-glide-on-narrow-zipper-presser-foot-t363.htm" target="_blank">Universal Glide-On Hinged Narrow Zipper Presser Foot #T-363<br></a><a href="https://www.goldstartool.com/universial-glide-on-left-narrow-zipper-presser-foot-t36ln.htm" target="_blank">Universal Glide-On Left Narrow Zipper Presser Foot #T36LN<br></a><a href="https://www.goldstartool.com/universal-glide-on-right-narrow-zipper-presser-foot-t36n.htm" target="_blank">Universal Glide-On Right Narrow Zipper Presser Foot #T36N</a></p>
<p><strong><em></em></strong><strong><em>FOR QUILTING<br></em></strong><a href="https://www.goldstartool.com/quilters-swing-sewing-guide-for-industrial-sewing-machines.htm" target="_blank">Quilters Swing Sewing Guide For Industrial Sewing Machines<br></a><a href="https://www.goldstartool.com/1-4-inch-high-shank-clear-ruler-foot-for-free-motion-quilting.htm" target="_blank">1/4" High Shank Clear Ruler Foot For Free Motion Quilting</a><a href="https://www.goldstartool.com/1-4-high-shank-ruler-foot-for-free-motion-frame-quilting-sewing.htm" target="_blank"><br>1/4" High Shank Metal Ruler Foot For Free Motion Quilting</a><br><a href="https://www.goldstartool.com/metal-quilting-glide-foot-and-needle-plate-gs1kit.htm" target="_blank">Metal Quilting Glide Foot and Needle Plate​ #GS1Kit</a><br><br><br></p>
<h3>OTHER ATTACHMENTS</h3>
<p><em><strong>BINDERS/FOLDERS</strong><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank"><br></a></em><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank">Raw Edge Binder Set #S64​</a><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank"><br>Raw Edge Plain Tape Binder Binding Attachment #100LS</a><a href="https://www.goldstartool.com/right-angle-binder-set-s60.htm" target="_blank"><br>Right Angle Binder Set #S60</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p></div></div>

ACCESSORIES for the JUKI DDL-9000C-FMS

Needles: Standard Industrial Needles (Size #9-#18)Bobbins: Metal Bobbins for Single Needle Industrial #270010Bobbin Case: Bobbin Case Metal Class 95 — Singer #52237Needle Plate: Needle Plate /Throat PlateFeed Dog: Light-Weight, Medium-Weight, Heavy-WeightNeedle Plate/Feed Dog Combo: Needle Plate/Feed Dog Combo

ACCESSORY KITSStarter Kit For Industrial Sewing MachinesDeluxe Kit For Industrial Sewing Machines

PRESSER FOOT KITS5 Pack Industrial High Shank Presser FeetGlide-On Industrial High Shank Presser Feet (5 Pack)

SEWING GUIDES & GAUGESMagnetic ​Sewing Machine Gauge GuideQuilters Swing Sewing GuideSwing Gauge #5812T Gauge (2-1/2")Adjustable Seam GuideSewing Machine 3 Corner Gauge #25873

COMPATIBLE PRESSER FOOT OPTIONS

ZIPPER/CORDING/WELTING/PIPINGInvisible Zipper Presser Foot #S518Split Hinged Zipper Presser Foot #40322SHNarrow Right Hinged Cording Foot #12435HNNarrow Left Hinged Cording Foot #31358HNWide Left Hinged Cording/Zipper Foot #31358HWL-P36LWide Right Hinged Cording/Zipper Foot #12435HWR-P36High Shank Double Welting/Piping Foot #36069DGMetal Piping Foot (Right Or Left) #36069L, 36069RWelting/Piping/Cording Presser Foot #767415000

COMPENSATINGLeft Compensating Presser FootRight Compensating Presser FootCompensating Binder Presser FootCompensating Foot 211-14

SHIRRING/GATHERINGShirring/Gathering Foot #120828Shirring/Gathering With Adjustable Blocks #S950Shirring/Gathering Screw Adjusting Presser Foot #S952Shirring/Gathering Tape Guide Elastic Adjustable Presser Foot #S537

GUIDE FOOTHinged Right Guide Foot

BUTTONHOLE FOOTHigh Shank Buttonhole #CY-703H

COMPATIBLE PRESSER FOOT OPTIONS (continued)

HEMMERBall Hemmer Foot (Double Fold) #490358 Spring Hemmer Foot #490359Hemming Presser Foot and Folder Set #F502

CENTER TUBEHinged Center Tube Presser Foot #S10C

ROLLERSmall Roller Foot With Needle Plate & Feed DogsLarge Roller Foot With Needle Plate & Feed DogsSPK Roller Foot #SPK3

BIASBias Tape Binding Presser Foot #6288

STRAIGHT STITCHHinged Straight Stitch Presser Foot #P351Hinged Straight Stitching Foot #24983Hinged Narrow Presser Foot #142058NHeavyweight Straight Stitch Presser Foot - Brother #SA173Straight Stitch Presser Foot With Finger Guard #351

GLIDE-ON/TEFLONGlide-On Invisible Zipper Presser Foot #S518NSTGlide-On Standard Extended Tail Hinged Presser Foot #MT-18Glide-On Welting/Piping/Cording Presser Foot #36069TNon-Stick Glide-On Presser Foot #T-350Universal Glide-On Hinged Narrow Zipper Presser Foot #T-363Universal Glide-On Left Narrow Zipper Presser Foot #T36LNUniversal Glide-On Right Narrow Zipper Presser Foot #T36N

FOR QUILTINGQuilters Swing Sewing Guide For Industrial Sewing Machines1/4" High Shank Clear Ruler Foot For Free Motion Quilting1/4" High Shank Metal Ruler Foot For Free Motion QuiltingMetal Quilting Glide Foot and Needle Plate​ #GS1Kit

OTHER ATTACHMENTS

BINDERS/FOLDERSRaw Edge Binder Set #S64​Raw Edge Plain Tape Binder Binding Attachment #100LSRight Angle Binder Set #S60Double Fold Binder / Binding Attachment Folder #508LTop Mount Collarette Binder Top CleanTable Mount Coverstitch Collarette Binder #S124A

HEMMERSingle Fold Up Turn Hemmer #S75U

BUTTONHOLERButtonholer Attachment #YS-4455

RUFFLERDeluxe Ruffler Attachment for Industrial Sewing Machines #G900E

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
