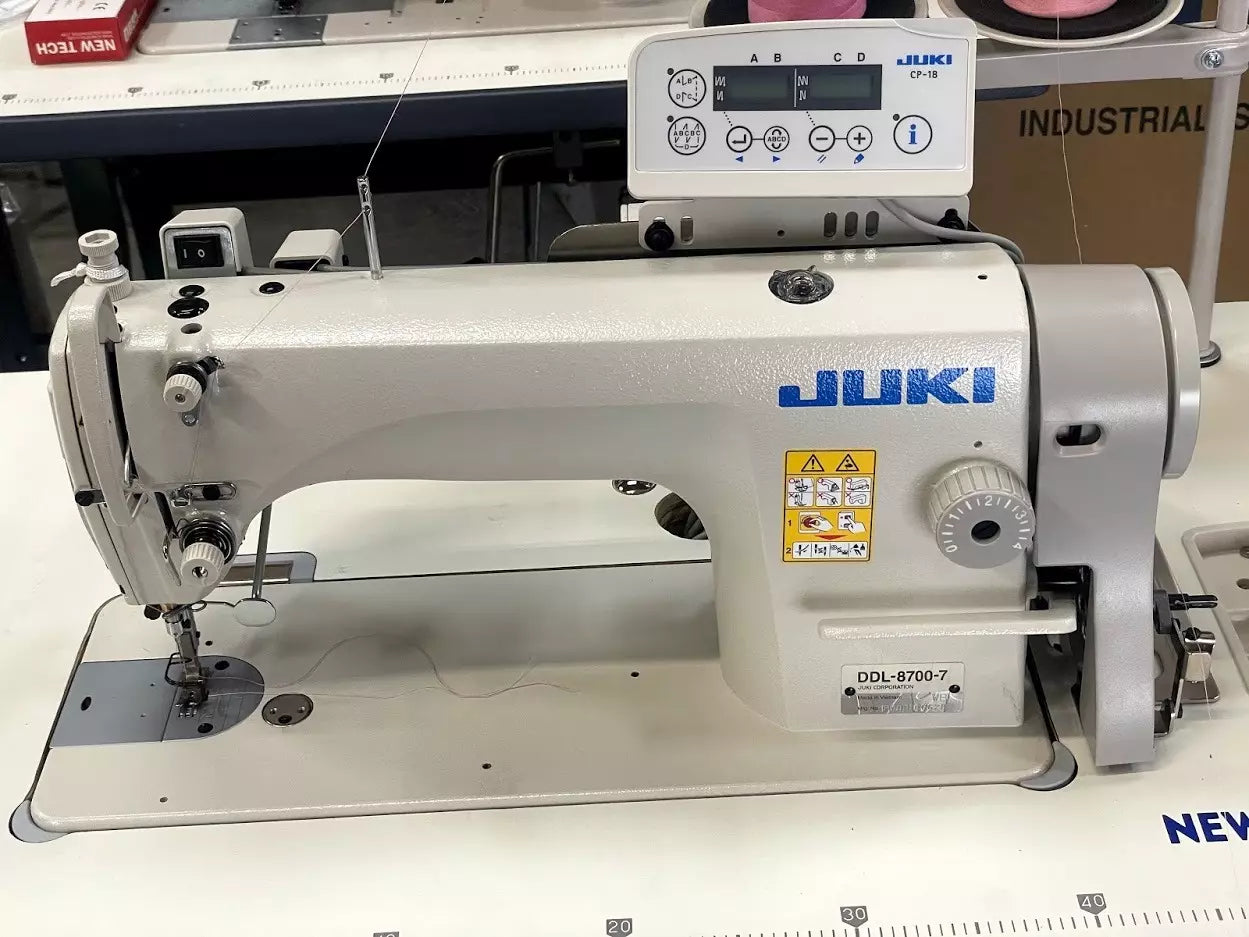

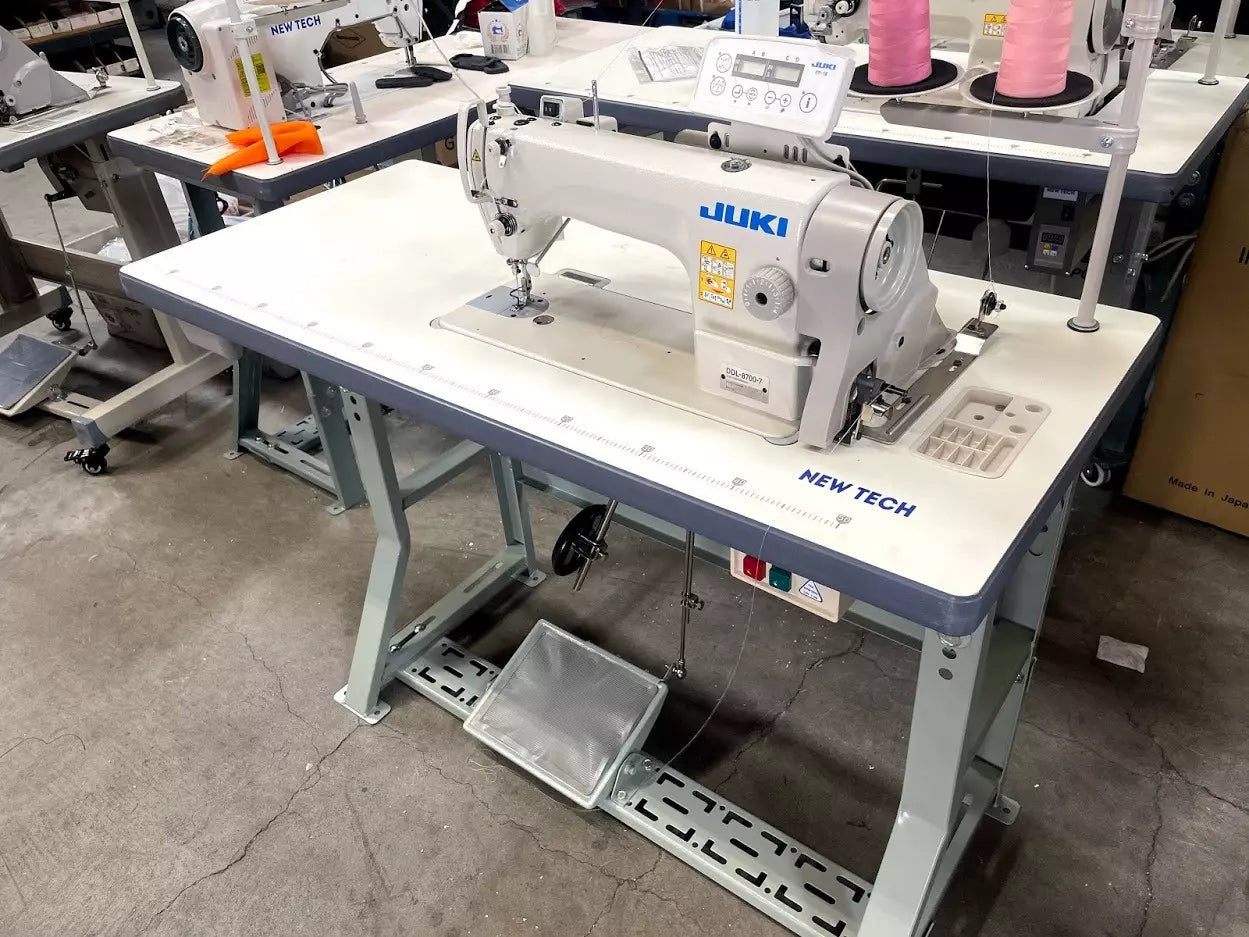

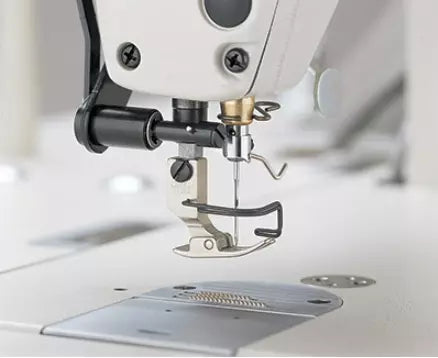

JUKI DDL-8700-7 Single Needle Drop Feed Automatic Industrial Sewing Machine With Table and Servo Motor

JUKI DDL-8700-7 Single Needle Drop Feed Automatic Industrial Sewing Machine With Table and Servo Motor

SKU:DDL-8700-7

Fully Automated Industrial Machine with Thread Trimmer, Auto-Backtack, Table, and Servo Motor

Regular price $2,199.95
Sale price $2,199.95 Regular price Market price: $2,699.99
Sale Sold out
Head Only (No Table)
Quantity
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

Juki DDL-8700-7

is the sophisticated, fully automated version of the world’s most popular industrial lockstitch machine. Engineered for maximum productivity, this machine features an Automatic Thread Trimmer and Auto-Backtack functionality, significantly reducing cycle times and thread waste. Designed for light-to-medium weight fabrics, the DDL-8700-7 combines Juki’s legendary stitch quality with modern "under-trimmer" technology, making it the definitive foundation for professional garment factories and high-volume boutiques.

Love Juki? Goldstar Tool Has You Covered

We carry several Juki machines, including the DDL-8700-7. Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419 and we’ll be happy to answer everything for you.

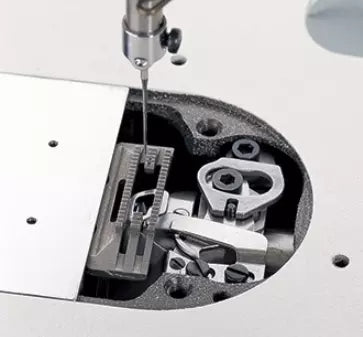

  • Automatic Thread Trimmer: Trims both the needle and bobbin threads instantly at the end of a seam, eliminating the need for manual clipping.
  • Auto-Backtack & Programming: Easily program the machine to perform automatic reinforcement stitches (backtacking) at the start and end of every seam.

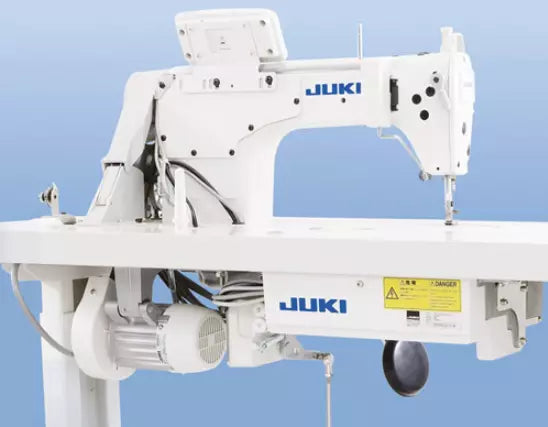

  • Direct Drive Servo Motor: The motor is integrated for silent operation, offering instantaneous start/stop response and energy savings of up to 70% compared to clutch motors.
  • Digital Control Panel: The user-friendly CP-180 panel allows you to adjust sewing speeds, toggle automatic functions, and set stitch patterns with ease.
  • High-Speed Performance: Operates at a powerful 5,000 stitches per minute (SPM), ensuring maximum production output.
  • Low-Vibration Design: The machine head is engineered to minimize noise and table vibration, creating a comfortable and efficient workspace for long shifts.
  • Automatic Lubrication: A fully enclosed pump-driven oiling system ensures all internal components are protected, extending the machine's lifespan under heavy use.
  • Application: Light to Medium-weight materials
  • Max. Sewing Speed: 5,000 Stitches per Minute (SPM)
  • Max. Stitch Length: 4mm
  • Needle Bar Stroke: 30.7mm
  • Presser Foot Lift: 5.5mm (Hand) / 13mm (Knee)
  • Needle System: DBx1 (16x231) #9 to #18
  • Automatic Functions: Thread Trimming, Backtacking, and Foot Lift (Optional)
  • Control Panel: Juki CP-180 (Standard)
  • Hook: Automatic-lubricating full rotary hook
  • Motor Type: 110V Electronic Servo Motor (High-Torque)
  • Lubrication: Fully Automatic

The DDL-8700-7 is optimized for high-efficiency straight-stitch sewing in:

  • Apparel Manufacturing: High-volume production of shirts, blouses, trousers, and skirts.
  • Boutique Construction: Professional-grade finishing for designer garments and samples.
  • Light Home Decor: Bedding, pillowcases, and lightweight curtains.
  • Uniforms & Workwear: Durable, repeated seaming for scrubs and corporate apparel.

<h3><strong><u>ACCESSORIES for the JUKI DDL-8700-7</u> </strong></h3>
<div class="row">
<div class="col-lg-6">
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/standard-industrial-sewing-machine-needles.htm" target="_blank">Standard Industrial Needles (Size #9-#18)</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/metal-bobbins-for-single-needle-industrial-industrial-sewing-machines-270010.htm" target="_blank">Metal Bobbins for Single Needle Industrial #270010</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-class-95-52237.htm" target="_blank">Bobbin Case Metal Class 95 — Singer #52237</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-for-most-single-needle-industrial-sewing-machines.htm" target="_blank">Needle Plate /Throat Plate<br></a><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-for-light-weight-industrial-sewing-machines-singer-149057.htm" target="_blank">Light-Weight</a>, <a href="https://www.goldstartool.com/feed-dog-for-medium-weight-industrial-sewing-machines-singer-149159.htm" target="_blank">Medium-Weight</a>, <a href="https://www.goldstartool.com/feed-dog-for-heavy-weight-industrial-sewing-machines-singer-149165.htm" target="_blank">Heavy-Weight</a><br><strong>Needle Plate/Feed Dog Combo:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-feed-dog-for-most-industrial-lockstitch-sewing-machines-combo.htm" target="_blank">Needle Plate/Feed Dog Combo<br></a></p>
<p><strong><em>ACCESSORY KITS</em><strong><u><br></u></strong></strong><a href="https://www.goldstartool.com/starter-kit-for-industrial-sewing-machines.htm" target="_blank">Starter Kit For Industrial Sewing Machines<br></a><a href="https://www.goldstartool.com/deluxe-spare-parts-kit-for-industrial-lockstitch-sewing-machines.htm" target="_blank">Deluxe Kit For Industrial Sewing Machines</a><strong><em></em></strong></p>
<p><strong><em>PRESSER FOOT KITS</em></strong><br><a href="https://www.goldstartool.com/5-pack-industrial-high-shank-presser-feet.htm" target="_blank">5 Pack Industrial High Shank Presser Feet</a><br><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank">Glide-On Industrial High Shank Presser Feet (5 Pack)</a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank"></a><br></p>
<p><em><strong>SEWING GUIDES & GAUGES</strong></em><a href="https://www.goldstartool.com/magnetic-sewing-machine-gauge.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/magnetic-sewing-machine-gauge.htm" target="_blank">Magnetic ​Sewing Machine Gauge Guide</a><br><a href="https://www.goldstartool.com/quilters-swing-sewing-guide-for-industrial-sewing-machines.htm" target="_blank">Quilters Swing Sewing Guide</a><br><a href="https://www.goldstartool.com/industrial-sewing-machine-swing-gauge-5812.htm" target="_blank">Swing Gauge #5812</a><a href="https://www.goldstartool.com/sewing-machinest-gauge-2-1-2.htm" target="_blank"><br>T Gauge (2-1/2")</a><a href="https://www.goldstartool.com/adjustable-seam-guide-sewing-adjustable-seam-guide-for-industrial-single-needle-sewing-machine.htm" target="_blank"><br>Adjustable Seam Guide</a><a href="https://www.goldstartool.com/sewing-machine-3-corner-gauge-25873.htm" target="_blank"><br>Sewing Machine 3 Corner Gauge #25873</a></p>
<p></p><br>
<h3><strong>COMPATIBLE PRESSER FOOT OPTIONS</strong></h3>
<p><strong><em>ZIPPER/CORDING/WELTING/PIPING<br></em></strong><a href="https://www.goldstartool.com/invisible-zipper-presser-foot-s518.htm" target="_blank">Invisible Zipper Presser Foot #S518<br></a><a href="https://www.goldstartool.com/split-hinged-zipper-presser-foot-40322sh.htm" target="_blank">Split Hinged Zipper Presser Foot #40322SH<br></a><a href="https://www.goldstartool.com/narrow-right-hinged-cording-foot-for-industrial-lockstitch-sewing-machines-12435hn.htm" target="_blank">Narrow Right Hinged Cording Foot #12435HN<br></a><a href="https://www.goldstartool.com/narrow-left-hinged-cording-foot-for-industrial-lockstitch-sewing-machines-31358hn.htm" target="_blank">Narrow Left Hinged Cording Foot #31358HN<br></a><a href="https://www.goldstartool.com/wide-left-hinged-cording-zipper-foot-31358hwl-p36l.htm" target="_blank">Wide Left Hinged Cording/Zipper Foot #31358HWL-P36L<br></a><a href="https://www.goldstartool.com/wide-right-hinged-cordingzipper-foot-12435hwr-p36r.htm" target="_blank">Wide Right Hinged Cording/Zipper Foot #12435HWR-P36<br></a><a href="https://www.goldstartool.com/high-shank-double-welting-piping-foot-for-industrial-single-needle-sewing-machines-36069dg.htm" target="_blank">High Shank Double Welting/Piping Foot #36069DG<br></a><a href="https://www.goldstartool.com/metal-piping-foot-high-shank-right-or-left.htm" target="_blank">Metal Piping Foot (Right Or Left) #36069L, 36069R<br></a><a href="https://www.goldstartool.com/welting-piping-cording-presser-foot-767415000-767414009.htm" target="_blank">Welting/Piping/Cording Presser Foot #767415000</a></p>
<p><strong><em>COMPENSATING<br></em></strong><a href="https://www.goldstartool.com/left-compensating-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Left Compensating Presser Foot<br></a><a href="https://www.goldstartool.com/right-compensating-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Right Compensating Presser Foot<br></a><a href="https://www.goldstartool.com/compensating-binder-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Compensating Binder Presser Foot<br></a><a href="https://www.goldstartool.com/compensating-foot-211-14.htm" target="_blank">Compensating Foot 211-14</a></p>
<p><strong><em>SHIRRING/GATHERING<br></em></strong><a href="https://www.goldstartool.com/shirring-gathering-foot-for-industrial-lockstitch-sewing-machines.htm" target="_blank">Shirring/Gathering Foot #120828<br></a><a href="https://www.goldstartool.com/shirring-gathering-with-adjustable-blocks-for-industrial-lockstitch-sewing-machines-s950.htm" target="_blank">Shirring/Gathering With Adjustable Blocks #S950<br></a><a href="https://www.goldstartool.com/shirring-gathering-screw-adjusting-presser-foot-s952.htm" target="_blank">Shirring/Gathering Screw Adjusting Presser Foot #S952<br></a><a href="https://www.goldstartool.com/shirring-gathering-tape-guide-elastic-adjustable-presser-foot-for-industrial-sewing-machines-s537.htm" target="_blank">Shirring/Gathering Tape Guide Elastic Adjustable Presser Foot #S537</a></p>
<p><strong><em>GUIDE FOOT</em></strong><br><a href="https://www.goldstartool.com/industrial-sewing-machine-hinged-right-guide-foot.htm" target="_blank">Hinged Right Guide Foot</a></p>
</div>
<div class="col-lg-6">


<h3><strong>COMPATIBLE PRESSER FOOT OPTIONS (continued)</strong></h3>
<p><strong><em>HEMMER</em></strong><br><a href="https://www.goldstartool.com/shirring-gathering-with-adjustable-blocks-for-industrial-lockstitch-sewing-machines-s950.htm" target="_blank">Ball Hemmer Foot (Double Fold) #490358 <br></a><a href="https://www.goldstartool.com/spring-hemmer-feet-high-shank.htm" target="_blank">Spring Hemmer Foot #490359<br></a><a href="https://www.goldstartool.com/hemming-presser-foot-and-folder-set-f502.htm" target="_blank">Hemming Presser Foot and Folder Set #F502</a></p>
<p><strong><em>CENTER TUBE</em></strong><br><a href="https://www.goldstartool.com/hinged-center-tube-presser-foot-for-industrial-sewing-machine.htm" target="_blank">Hinged Center Tube Presser Foot #S10C</a></p>
<p><strong><em>ROLLER<br></em></strong><a href="https://www.goldstartool.com/small-roller-foot-with-needle-plate-feed-dogs-singer.htm" target="_blank">Small Roller Foot With Needle Plate & Feed Dogs<br></a><a href="https://www.goldstartool.com/large-roller-foot-with-needle-plate-feed-dogs-singer.htm" target="_blank">Large Roller Foot With Needle Plate & Feed Dogs<br></a><a href="https://www.goldstartool.com/spk-high-shank-roller-foot-spk3.htm" target="_blank">SPK Roller Foot #SPK3</a></p>
<p><strong><em>BIAS<br></em></strong><a href="https://www.goldstartool.com/bias-tape-binding-presser-foot-6288.htm" target="_blank">Bias Tape Binding Presser Foot #6288</a></p>
<p><strong><em>STRAIGHT STITCH<br></em></strong><a href="https://www.goldstartool.com/hinged-straight-stitch-presser-foot-p351.htm" target="_blank">Hinged Straight Stitch Presser Foot #P351<br></a><a href="https://www.goldstartool.com/hinged-straight-stitching-foot-24983.htm" target="_blank">Hinged Straight Stitching Foot #24983<br></a><a href="https://www.goldstartool.com/hinged-narrow-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Hinged Narrow Presser Foot #142058N<br></a><a href="https://www.goldstartool.com/heavyweight-straight-stitch-presser-foot-brother-sa173.htm" target="_blank">Heavyweight Straight Stitch Presser Foot - Brother #SA173<br></a><a href="https://www.goldstartool.com/straight-stitch-presser-foot-with-finger-guard-351.htm" target="_blank">Straight Stitch Presser Foot With Finger Guard #351</a></p>
<p><strong><em>GLIDE-ON/TEFLON<br></em></strong><a href="https://www.goldstartool.com/glide-on-invisible-zipper-presser-foot-s518nst.htm" target="_blank">Glide-On Invisible Zipper Presser Foot #S518NST<br></a><a href="https://www.goldstartool.com/glide-on-standard-extended-tail-hinged-presser-foot-mt-18.htm" target="_blank">Glide-On Standard Extended Tail Hinged Presser Foot #MT-18<br></a><a href="https://www.goldstartool.com/glide-on-welting-piping-cording-presser-foot-36069t.htm" target="_blank">Glide-On Welting/Piping/Cording Presser Foot #36069T<br></a><a href="https://www.goldstartool.com/non-stickteflon-foot-high-shank.htm" target="_blank">Non-Stick Glide-On Presser Foot #T-350<br></a><a href="https://www.goldstartool.com/universal-glide-on-narrow-zipper-presser-foot-t363.htm" target="_blank">Universal Glide-On Hinged Narrow Zipper Presser Foot #T-363<br></a><a href="https://www.goldstartool.com/universial-glide-on-left-narrow-zipper-presser-foot-t36ln.htm" target="_blank">Universal Glide-On Left Narrow Zipper Presser Foot #T36LN<br></a><a href="https://www.goldstartool.com/universal-glide-on-right-narrow-zipper-presser-foot-t36n.htm" target="_blank">Universal Glide-On Right Narrow Zipper Presser Foot #T36N</a></p>
<p><strong><em></em></strong><strong><em>FOR QUILTING<br></em></strong><a href="https://www.goldstartool.com/quilters-swing-sewing-guide-for-industrial-sewing-machines.htm" target="_blank">Quilters Swing Sewing Guide For Industrial Sewing Machines<br></a><a href="https://www.goldstartool.com/1-4-inch-high-shank-clear-ruler-foot-for-free-motion-quilting.htm" target="_blank">1/4" High Shank Clear Ruler Foot For Free Motion Quilting</a><a href="https://www.goldstartool.com/1-4-high-shank-ruler-foot-for-free-motion-frame-quilting-sewing.htm" target="_blank"><br>1/4" High Shank Metal Ruler Foot For Free Motion Quilting</a><br><a href="https://www.goldstartool.com/metal-quilting-glide-foot-and-needle-plate-gs1kit.htm" target="_blank">Metal Quilting Glide Foot and Needle Plate​ #GS1Kit</a><br><br><br></p>
<h3>OTHER ATTACHMENTS</h3>
<p><em><strong>BINDERS/FOLDERS</strong><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank"><br></a></em><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank">Raw Edge Binder Set #S64​</a><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank"><br>Raw Edge Plain Tape Binder Binding Attachment #100LS</a><a href="https://www.goldstartool.com/right-angle-binder-set-s60.htm" target="_blank"><br>Right Angle Binder Set #S60</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p></div></div>

ACCESSORIES for the JUKI DDL-8700-7

Needles: Standard Industrial Needles (Size #9-#18)Bobbins: Metal Bobbins for Single Needle Industrial #270010Bobbin Case: Bobbin Case Metal Class 95 — Singer #52237Needle Plate: Needle Plate /Throat PlateFeed Dog: Light-Weight, Medium-Weight, Heavy-WeightNeedle Plate/Feed Dog Combo: Needle Plate/Feed Dog Combo

ACCESSORY KITSStarter Kit For Industrial Sewing MachinesDeluxe Kit For Industrial Sewing Machines

PRESSER FOOT KITS5 Pack Industrial High Shank Presser FeetGlide-On Industrial High Shank Presser Feet (5 Pack)

SEWING GUIDES & GAUGESMagnetic ​Sewing Machine Gauge GuideQuilters Swing Sewing GuideSwing Gauge #5812T Gauge (2-1/2")Adjustable Seam GuideSewing Machine 3 Corner Gauge #25873

COMPATIBLE PRESSER FOOT OPTIONS

ZIPPER/CORDING/WELTING/PIPINGInvisible Zipper Presser Foot #S518Split Hinged Zipper Presser Foot #40322SHNarrow Right Hinged Cording Foot #12435HNNarrow Left Hinged Cording Foot #31358HNWide Left Hinged Cording/Zipper Foot #31358HWL-P36LWide Right Hinged Cording/Zipper Foot #12435HWR-P36High Shank Double Welting/Piping Foot #36069DGMetal Piping Foot (Right Or Left) #36069L, 36069RWelting/Piping/Cording Presser Foot #767415000

COMPENSATINGLeft Compensating Presser FootRight Compensating Presser FootCompensating Binder Presser FootCompensating Foot 211-14

SHIRRING/GATHERINGShirring/Gathering Foot #120828Shirring/Gathering With Adjustable Blocks #S950Shirring/Gathering Screw Adjusting Presser Foot #S952Shirring/Gathering Tape Guide Elastic Adjustable Presser Foot #S537

GUIDE FOOTHinged Right Guide Foot

COMPATIBLE PRESSER FOOT OPTIONS (continued)

HEMMERBall Hemmer Foot (Double Fold) #490358 Spring Hemmer Foot #490359Hemming Presser Foot and Folder Set #F502

CENTER TUBEHinged Center Tube Presser Foot #S10C

ROLLERSmall Roller Foot With Needle Plate & Feed DogsLarge Roller Foot With Needle Plate & Feed DogsSPK Roller Foot #SPK3

BIASBias Tape Binding Presser Foot #6288

STRAIGHT STITCHHinged Straight Stitch Presser Foot #P351Hinged Straight Stitching Foot #24983Hinged Narrow Presser Foot #142058NHeavyweight Straight Stitch Presser Foot - Brother #SA173Straight Stitch Presser Foot With Finger Guard #351

GLIDE-ON/TEFLONGlide-On Invisible Zipper Presser Foot #S518NSTGlide-On Standard Extended Tail Hinged Presser Foot #MT-18Glide-On Welting/Piping/Cording Presser Foot #36069TNon-Stick Glide-On Presser Foot #T-350Universal Glide-On Hinged Narrow Zipper Presser Foot #T-363Universal Glide-On Left Narrow Zipper Presser Foot #T36LNUniversal Glide-On Right Narrow Zipper Presser Foot #T36N

FOR QUILTINGQuilters Swing Sewing Guide For Industrial Sewing Machines1/4" High Shank Clear Ruler Foot For Free Motion Quilting1/4" High Shank Metal Ruler Foot For Free Motion QuiltingMetal Quilting Glide Foot and Needle Plate​ #GS1Kit

OTHER ATTACHMENTS

BINDERS/FOLDERSRaw Edge Binder Set #S64​Raw Edge Plain Tape Binder Binding Attachment #100LSRight Angle Binder Set #S60Double Fold Binder / Binding Attachment Folder #508LTop Mount Collarette Binder Top CleanTable Mount Coverstitch Collarette Binder #S124A

HEMMERSingle Fold Up Turn Hemmer #S75U

BUTTONHOLERButtonholer Attachment #YS-4455

RUFFLERDeluxe Ruffler Attachment for Industrial Sewing Machines #G900E

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

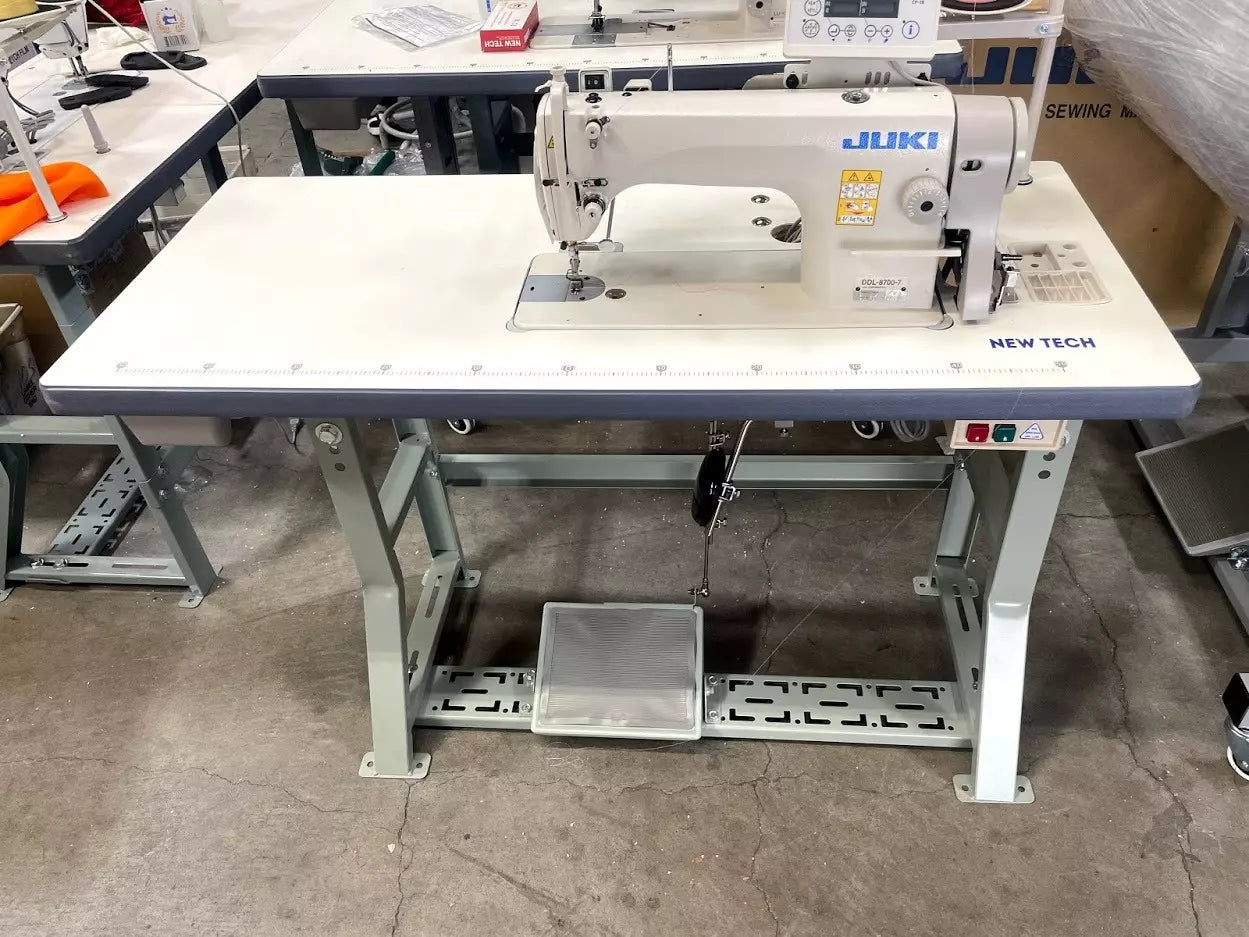

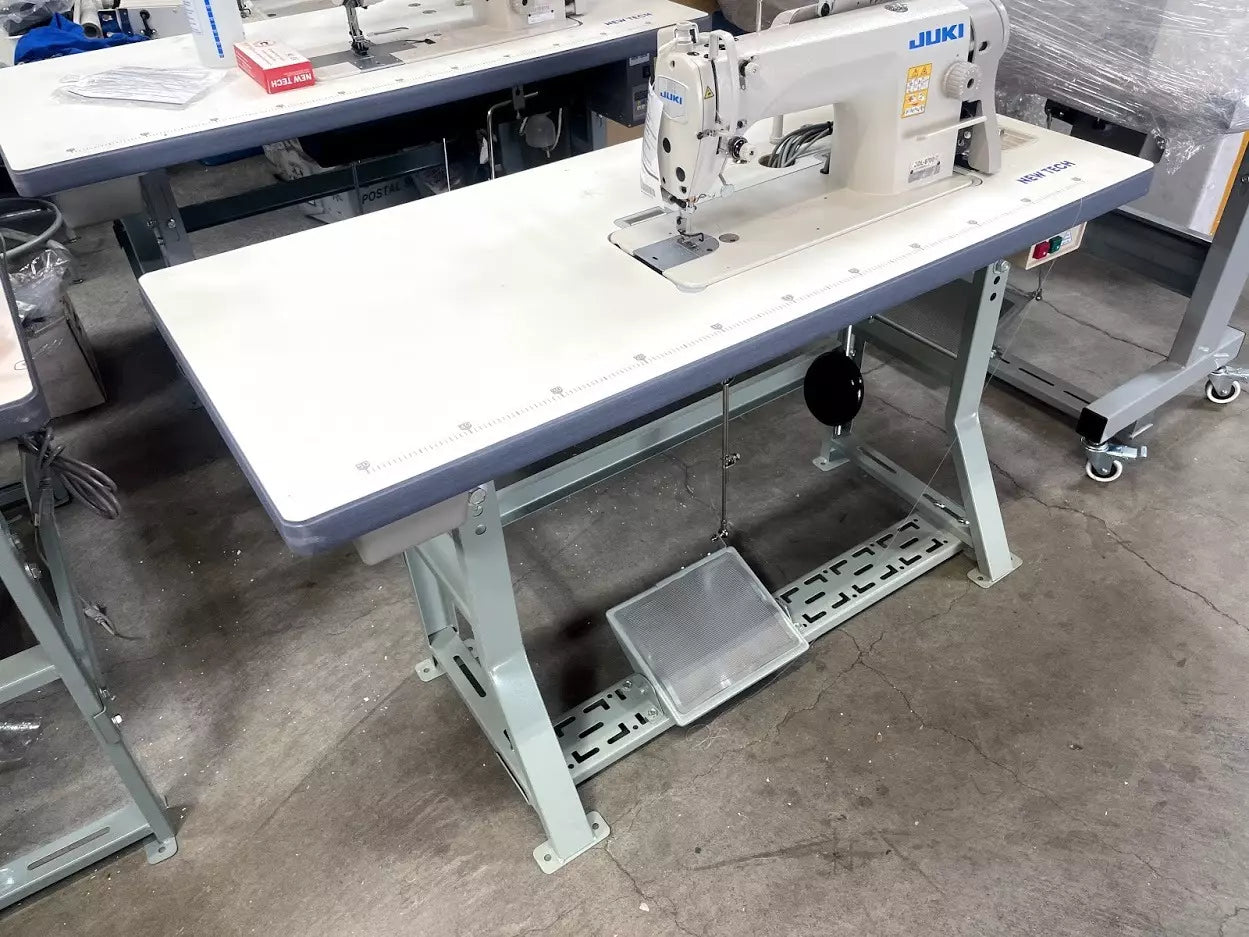

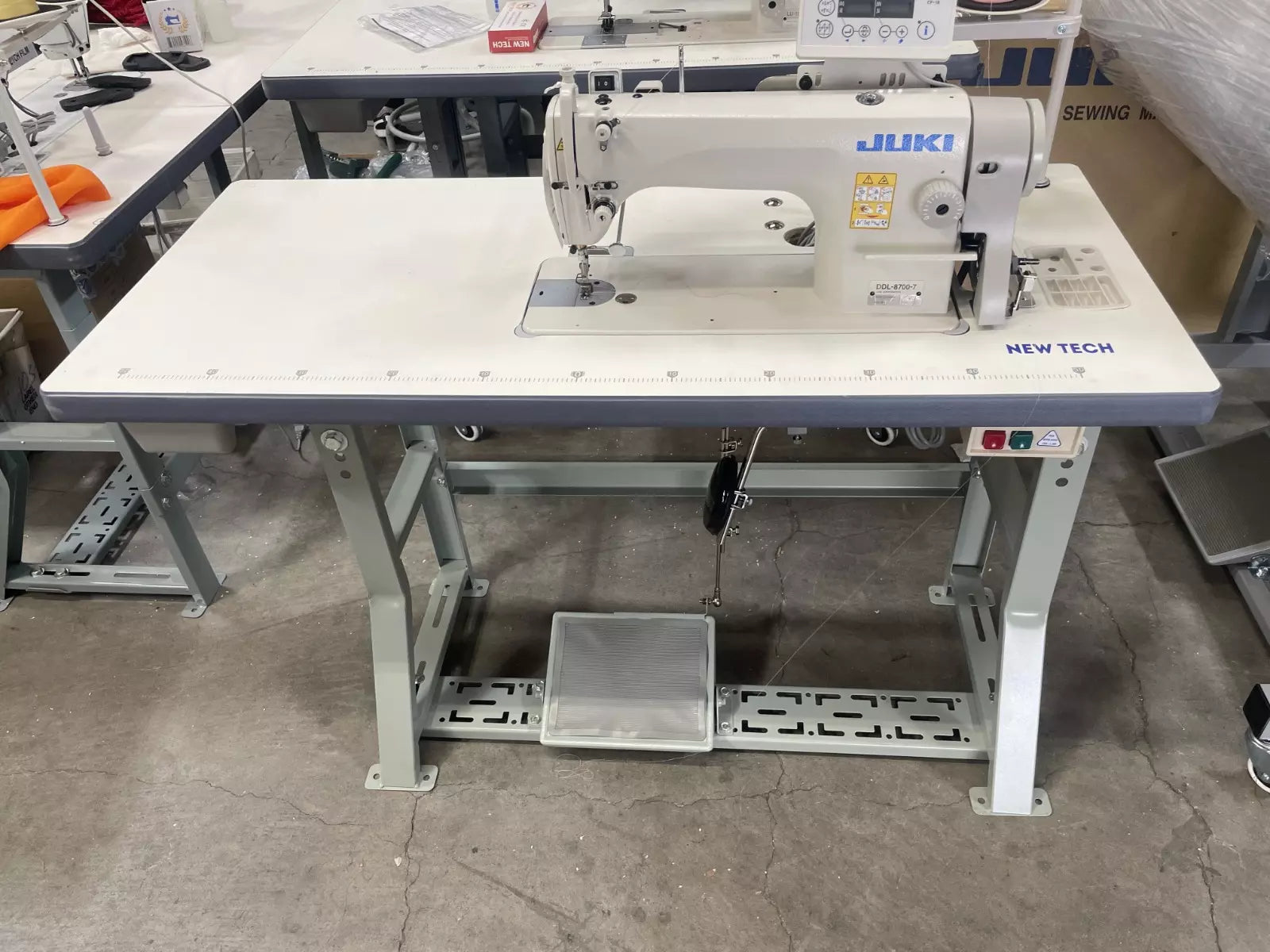

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
