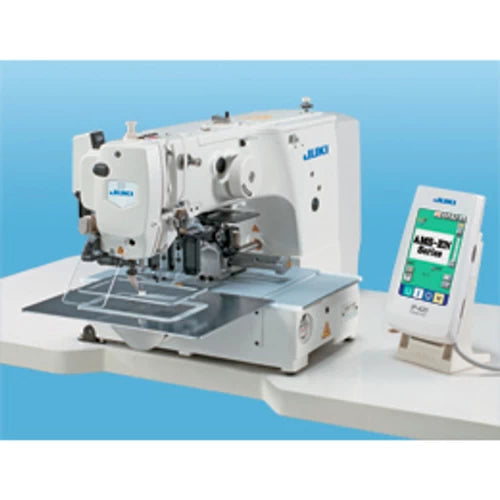

JUKI AMS-210ENHL-1510 Programmable Pattern Sewing Machine

JUKI AMS-210ENHL-1510 Programmable Pattern Sewing Machine

AMS-210ENHL-1510

Computer-Controlled Cycle Machine for Heavy-Weight Materials

$18,449.95
$18,449.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

JUKI AMS-210ENHL-1510

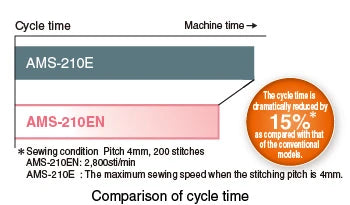

is a programmable pattern tacker that combines high-speed productivity with extreme sewing accuracy. Designed for heavy-duty applications like attaching labels to jeans, sewing Velcro on tactical gear, or decorative stitching on leather, this machine utilizes an active tension system and a high-torque direct-drive motor. The "EN" series features significantly reduced power consumption and improved cycle times, making it the most efficient programmable tacker in its class.

Note:

  • We recommend shipping this machine in an assembled condition. If you select this option, we will contact you regarding the shipping cost due to the machine's specifications.
  • The default clamp and the default program are intended solely for testing purposes. If you require us to do the programming, we will contact you to discuss the associated costs and the procedure for sending a sample.


  • High-Torque Heavy-Duty Design: The "HL" subclass is specifically built for heavy materials, featuring a reinforced needle bar and high-penetration power for thick leather or webbing.
  • Large 150mm x 100mm Sewing Area: A versatile field size that accommodates a wide range of labels, decorative patterns, and structural reinforcements.

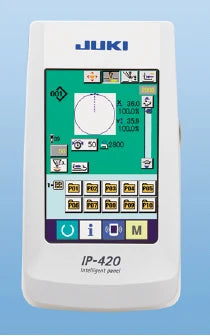

  • Active Tension Technology: Needle thread tension is electronically controlled and can be adjusted stitch-by-stitch via the operation panel, ensuring consistent quality even when fabric thickness changes.

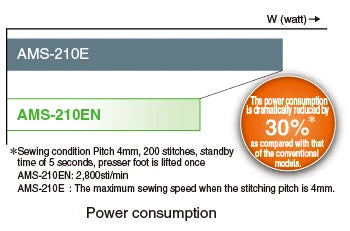

  • Direct-Drive System: The encoder-controlled AC servomotor is directly connected to the main shaft, providing instant startup, high stopping accuracy, and a 30% reduction in power consumption compared to older models.

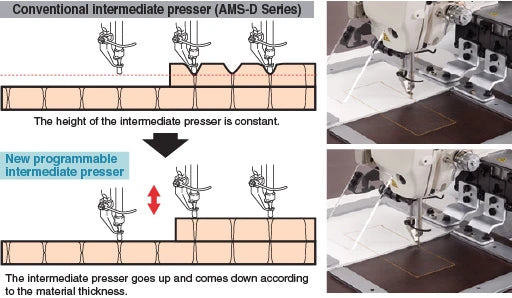

  • Programmable Intermediate Presser: The height of the intermediate presser can be adjusted according to the material thickness, preventing "material flopping" and ensuring clean, skipped-stitch-free seams.

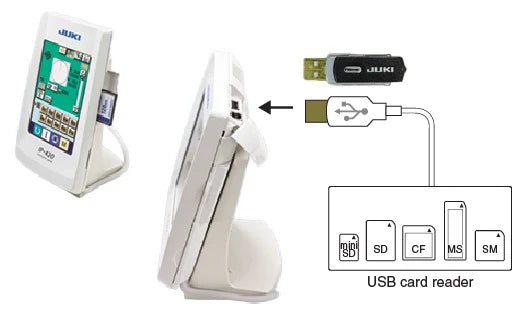

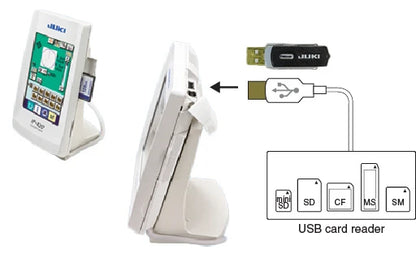

  • Memory Storage & IoT: Supports USB and CF cards for pattern data management. Use JUKI’s PM-1 software to create, edit, and transfer complex sewing patterns across multiple machines.
  • Model Number : AMS-210ENHL-1510 (Heavy-weight)
  • Sewing Area : 150 mm (X) × 100 mm (Y)
  • Max. Sewing Speed : 2,800 stitches per minute
  • Stitch Length : 0.1 mm – 12.7 mm
  • Needle Bar Stroke : 41.2 mm
  • Needle Type : DP×17 (#18 - #21)
  • Hook Type : Double-capacity Shuttle Hook
  • Intermediate Presser Lift : 20 mm
  • Presser Foot Lift : Max. 30 mm (Pneumatic)
  • Storage Capacity : Up to 500,000 stitches / 999 patterns
  • Power Requirement : Single-phase 200V–240V
  • Heavy Apparel: Attaching leather patches to jeans, pocket reinforcement, and label attachment.
  • Tactical Gear: Sewing Velcro, molle webbing, and buckles on backpacks and vests.
  • Leather Goods: Decorative patterns on wallets, belts, and luxury handbags.
  • Industrial Fabrics: Reinforcing safety harnesses, slings, and automotive interior components.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Trade Show - JUKI AMS-210EN1510R Pattern Tacker Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
