Industrial Sewing Machine Servo Motor - Consew #CSM550-1

Industrial Sewing Machine Servo Motor - Consew #CSM550-1

CSM550-1

$199.95
$199.95 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

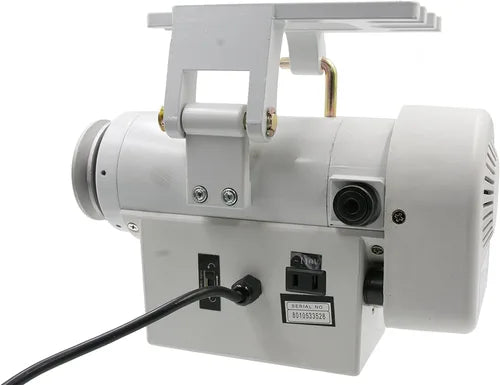

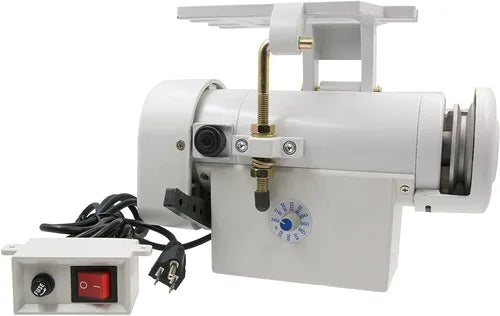

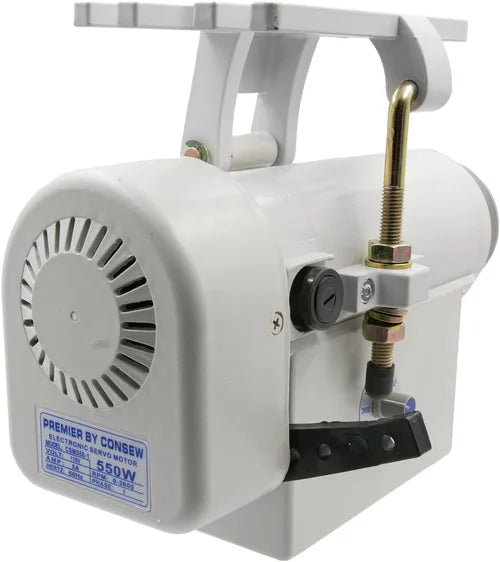

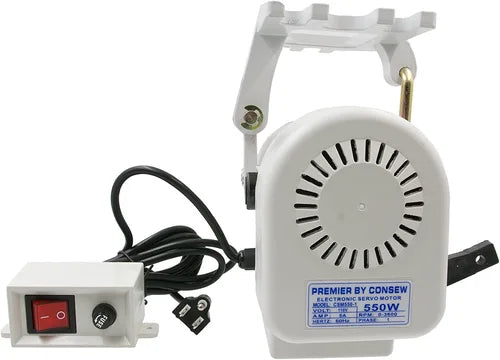

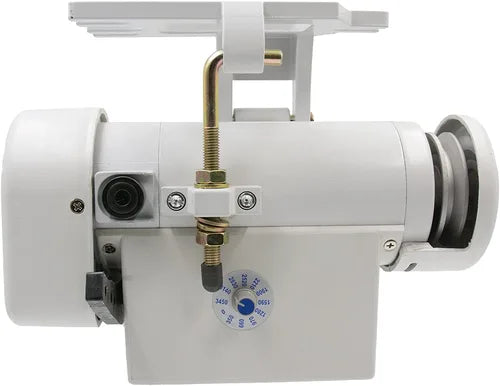

Industrial Sewing Machine Servo Motor - Consew #CSM550-1

Part Number: CSM550-1

The Premier CSM500 and the Premier CSM400: 400 Watts, ½ Horsepower, 110 V. motor have been phased out and the
CSM550-1 is the suggested replacement.

FEATURES:

  • Energy-efficient circuitry saves electricity costs
  • Quiet operation, silent when in a stopped position
  • Uses the same mounting holes as a clutch motor
  • High Torque D.C. Electronic Servo Induction Motor
  • Switch, Cord, and Plug included
  • Easy to adjust the speed with the Control Knob
  • Reversible with Switch
  • No clutch or brake disc required
  • Lightweight: 15.5 lbs. (17 lbs. shipping weight)
  • Belt guard, pulley, and mounting hardware included
  • 110V light adapter
  • Vibration-absorbing rubber motor mounts

SPECIFICATIONS:

  • Watts: 550W
  • Voltage: 110V
  • Amp: 5A
  • Hertz: 60Hz
  • RPM:  0 - 3450
  • Phase: 1
  • Horsepower: 3/4

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
