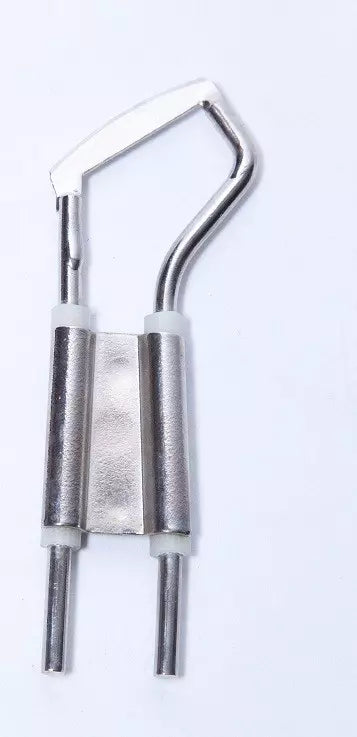

HSGM Type R Heat Cutter Blade

This is the original OEM Type R blade crafted by HSGM GmbH. This is a good general use blade for synthetic fabrics, webbing and ropes up to 17mm diameter. Excellent for cutting straight lines of synthetic fabrics.  a.k.a. 100R blade.

  • Total length of blade: 92mm (3.62")
  • Width of tip of blade: 29mm (1.14")
  • Blade tip thickness: 1mm with beveled edge
  • Max. blade tip temperature: 1100º F

Recommended cutting surface: 1/4" thick glass is the HSGM recommended cutting surface for all cutting tables. Glass does not absorb heat like other materials and all the heat from the blade will go into the cutting process.  Also it is real easy to clean with glass cleaner and a razor blade.

Recommended units to power this blade:

  • HSG-0
  • HSG-1-VW
  • HSG-03-VW
  • HSG-3-VW


JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
