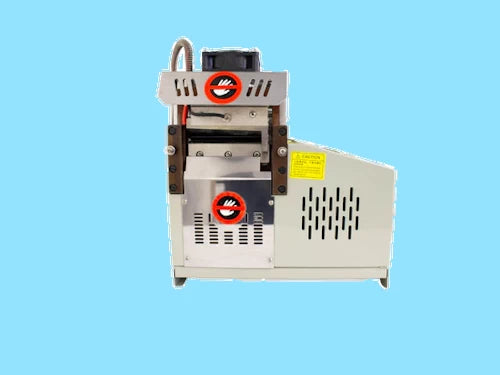

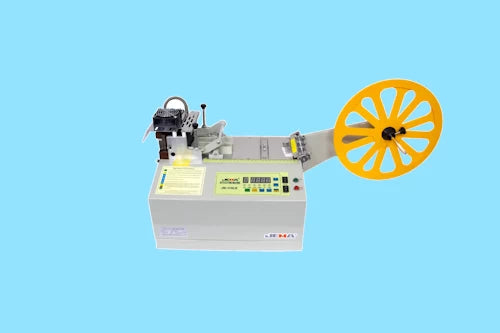

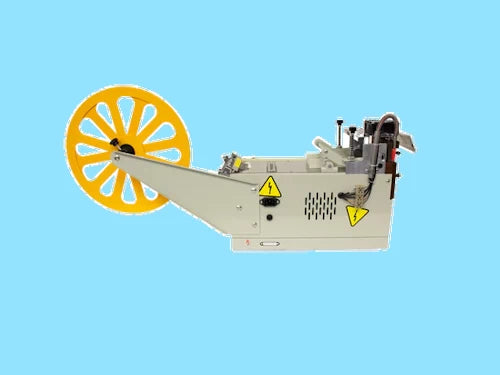

Jema JM-110LR Industrial Automatic Hot & Cold Strip Cutting Machine

Jema JM-110LR Industrial Automatic Hot & Cold Strip Cutting Machine

JM-110LR

Jema JM-110LR Hot and Cold Auto Cutting Machine, an industrial-grade solution for precision strip cutting.

$1,699.99
$1,699.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application

Jema JM-110LR

is a versatile, fully automatic cutting machine designed for high-speed production. It features dual-functionality, allowing you to use a cold blade for standard materials or a heat-sealing blade to prevent fraying on synthetic webbing. Engineered for accuracy and efficiency, it is the ideal solution for processing woven tapes, ribbons, and hook-and-loop fasteners in industrial environments.

  • Garment Industry: Cutting elastic bands, ribbon trims, and woven labels.
  • Industrial Webbing: Sizing nylon tapes and safety belts with professional heat-sealed edges.
  • Fasteners: High-volume cutting of hook-and-loop (Velcro) strips.
  • Accessories: Producing uniform lengths for lanyards, braided tapes, and industrial cordage.
  • Dual Cutting Modes: Switch between Hot Cutting for sealing synthetic ends and Cold Cutting for standard fabrics and elastics.
  • Full Automation: Simply program your desired length and quantity; the machine stops automatically once the task is complete.
  • Precision Feeding: Equipped with an accurate stepping motor to ensure consistent material feeding and uniform cut lengths.
  • High-Speed Productivity: Capable of cutting between 70 to 90 pieces per minute (based on 50mm lengths), significantly increasing your output.
  • Intuitive Digital Controls: An easy-to-use panel allows for rapid adjustments to temperature, speed, and length.
  • Model: JM-110LR
  • Cutting Type: Hot and Cold (Dual Function)
  • Maximum Cutting Width: 4 inches (100 mm)
  • Adjustable Length: 1mm to 99,999mm
  • Max Temperature: 350°C (Adjustable for various material types)
  • Voltage: 110V / 220V
  • Weight: Approximately 55 lbs (25 kg)
  • Feed Motor: Stepping Motor

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
