GROZ-BECKERT - 134/DPX5/135X5 GEBEDUR Sewing Machine Needles

GROZ-BECKERT - 134/DPX5/135X5 GEBEDUR Sewing Machine Needles

GNDL-134-DPX5-135X5_760742-110-18

GROZ-BECKERT - 134/DPX5/135X5 GEBEDUR Sewing Machine Needles

$32.95
$32.95 Market price:
Sale Sold out
Chooze Size
Delivery within 3-5 working days
View full details
  • Description

GROZ-BECKERT - 134/DPX5/135X5 GEBEDUR Sewing Machine Needles

Point style:  R
Needle size - Part Number:

  • 65 / 9 - 762782
  • 70 / 10 - 761982
  • 75 / 11 - 763215
  • 80 / 12 - 761952

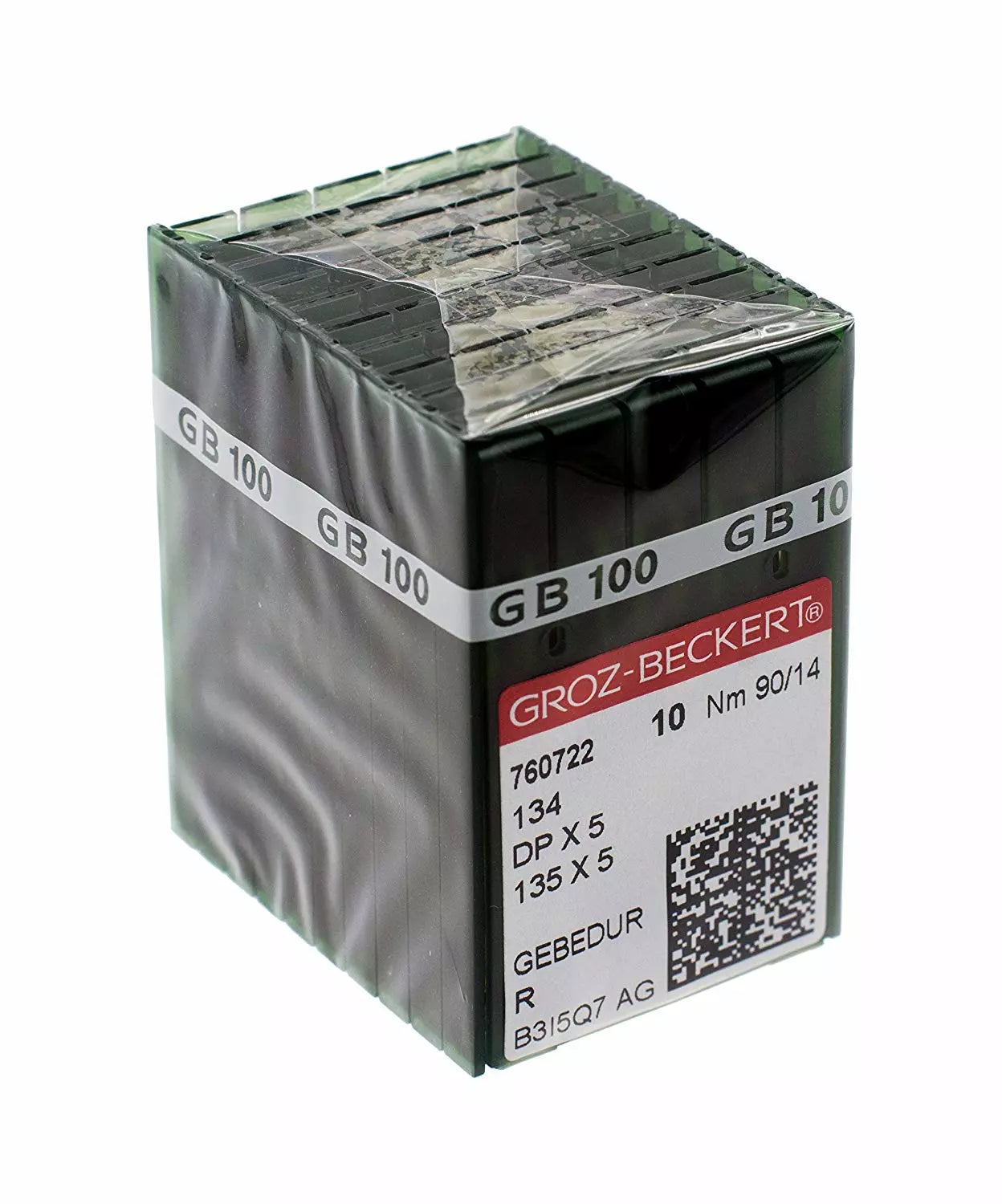

  • 90 / 14 - 760725 - Alternate Part Number - 760722

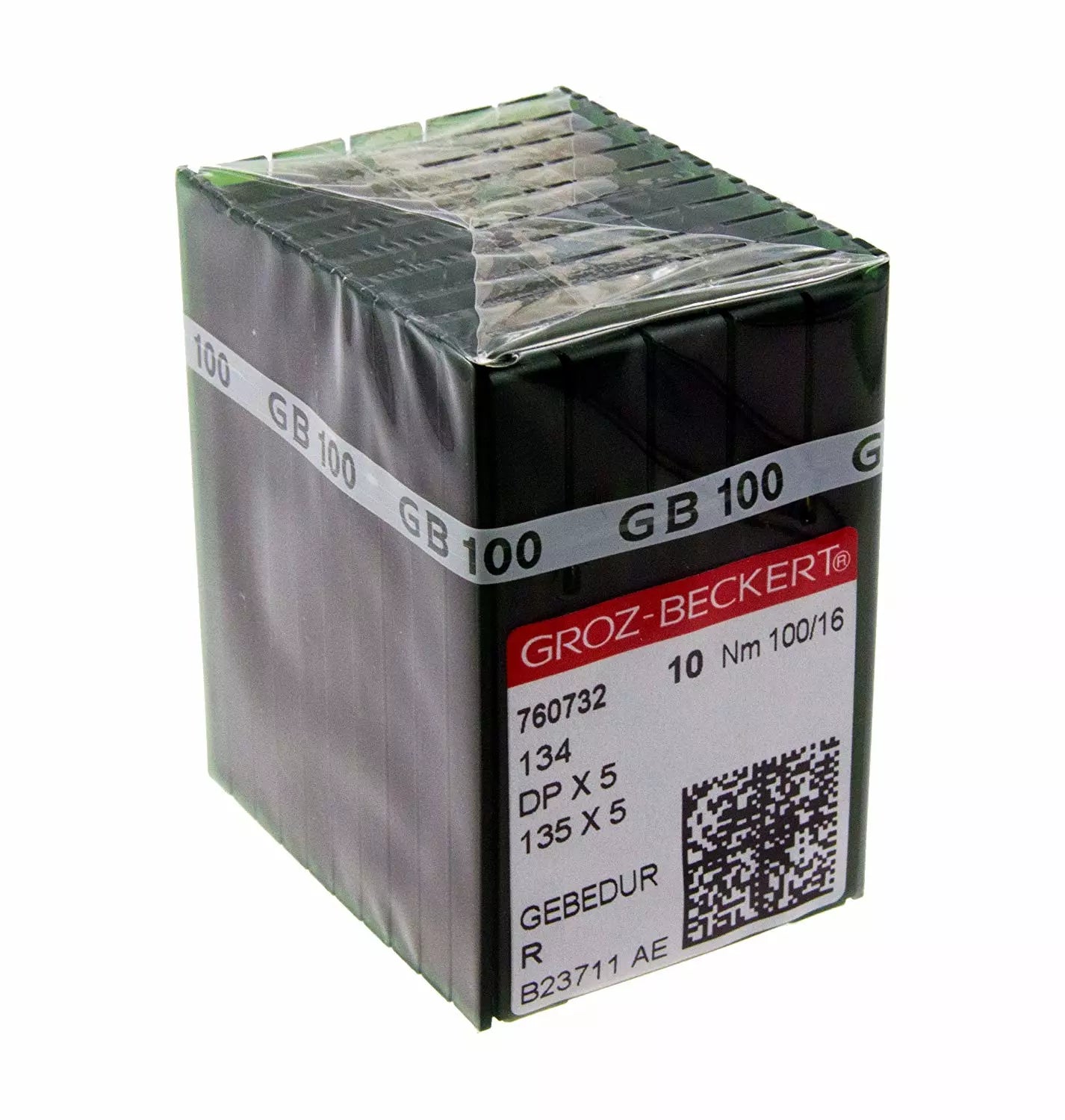

  • 100 /16 - 760732

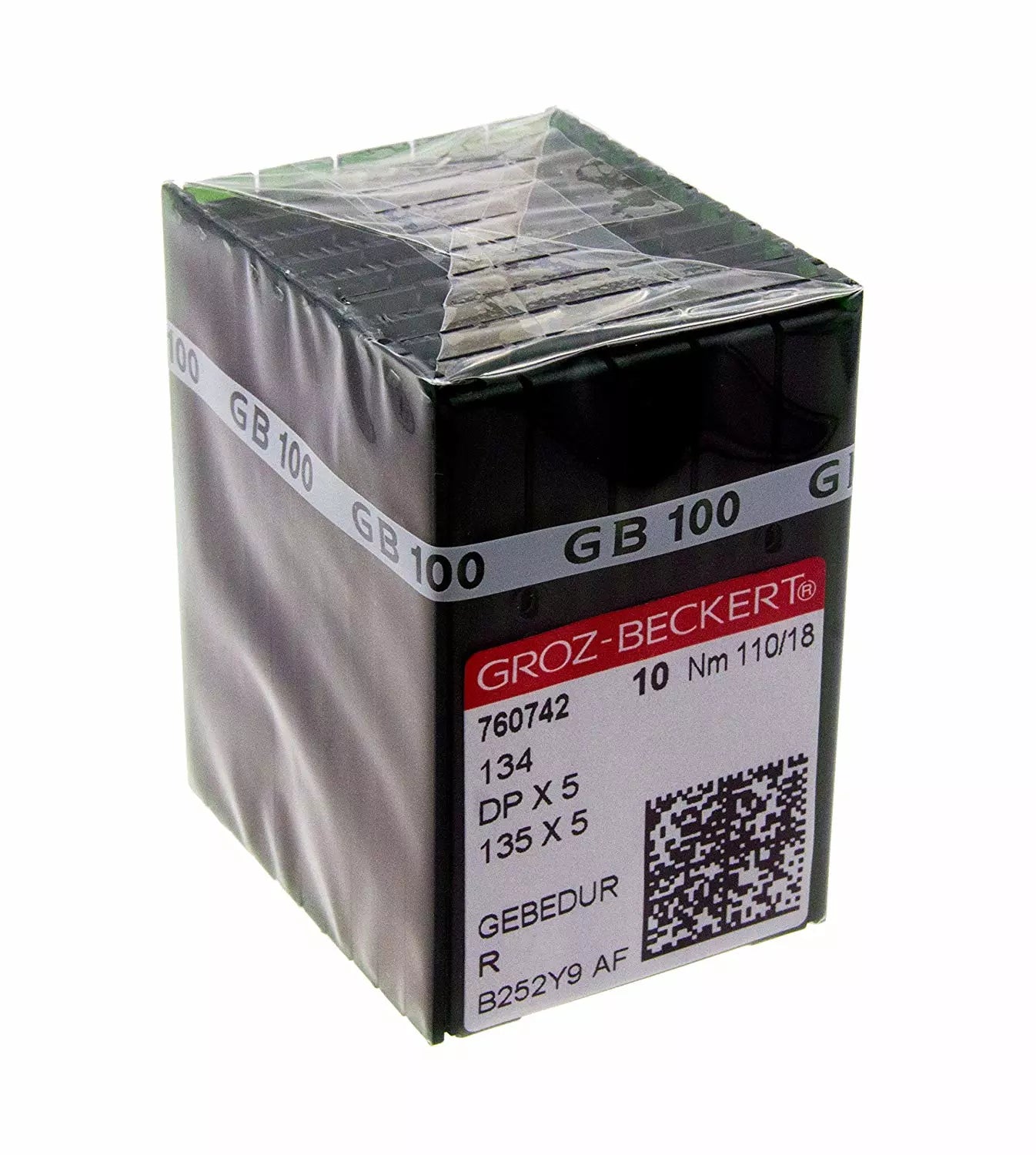

  • 110 / 18 - 760742

Coating:  GEBEDUR - Titanium Nitride Coated
Length butt to eye:  366
Shank diameter:  200
Packing Unit:  Sold in packs 100

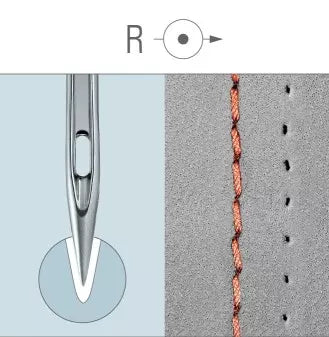

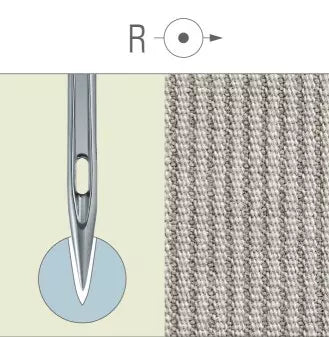

POINT STYLE

Regular Round Point
Standard for lockstitch (FST 301); woven fabrics, artificial leather, coated woven fabrics

  • Standard round point; cloth point with no cutting effect
  • Largely straight, somewhat irregular seam appearance
  • Thread slightly elevated
  • Suitable for medium to long stitches

Application
Shirts, trousers, various types of garments

  • Soft leather (clothing leather)
  • Multi-directional applications

Example
Clothing, vehicle seats (also for foils and coated materials)

Other point designations
SET, RD

GEBEDUR® – needles with titanium nitride coating

In demanding sewing processes, for instance when sewing hard materials and material combinations, needle wear often occurs, particularly in the point and eye area. The special GEBEDUR® surface coating provides the needle with increased wear resistance, allowing it to withstand extreme conditions much longer.

The special features

  • Titanium nitride surface coating

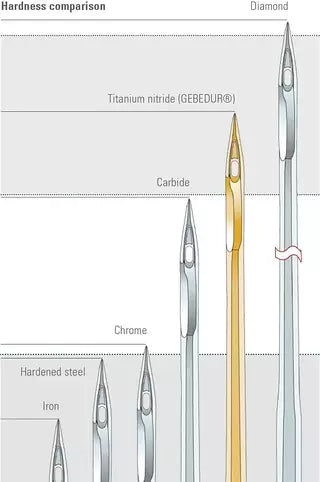

  • Higher of hardness than with standard needles

The advantages

  • Higher protection against wear and damage, primarily in the point and eye area
  • Consistently high standard of seam quality
  • Longer service life of needles
  • Increased productivity

Due to the above specified characteristics, certain special application needles such as the SAN® 5 or the SAN® 6 are coated with GEBEDUR® as standard.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
