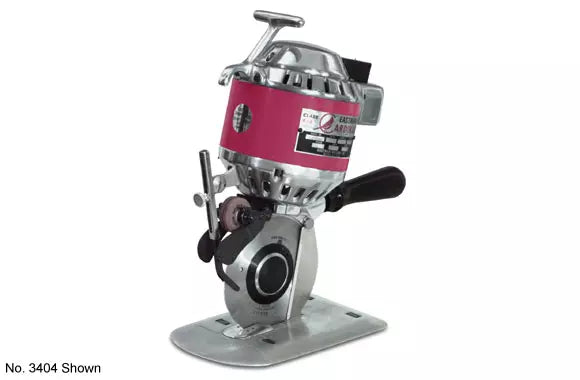

Eastman Cardinal® Series Round Knives Model 548

Eastman Cardinal® Series Round Knives Model 548

548

Eastman Cardinal® Series Round Knives Model 548

$2,699.99
$2,699.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Manuals & warranty

Eastman Cardinal® Series Round Knives Model 548

The Cardinal model 548: the most widely used round knife machine available on the Eastman market. It is available in two different blade sizes and is designed with a lightweight, powerful motor to provide the optimum cutting configuration.

FEATURES:

  • Available with two different blade sizes
  • Powerful motor provides versatility for cutting a wide range of materials
  • Blades are available in carbon steel, high speed steel, grooved and PTFE coated

SPECIFICATIONS:

Motors

110V, 1ph, 50/60Hz 220V, 1ph, 50/60Hz High speed (3600/3000 RPM) Low speed (1800/1500 RPM)
Horsepower

0.34hp, 1ph 0.48hp, 3ph
Weight

21 lbs. (9.52kg)
Blades

Standard: Carbon Steel Optional: High Speed Steel, Grooved, PTFE Coated
Sharpener Stones

Standard: 120 Heavy Optional: 150 Medium, 220 Fine
Options

Knife lubricator, stationary base plate
Blade Size

5.25 in. (13.3 cm) 6 in. (15.2 cm)
Cutting Capacity

3.125 in. (7.95cm) 3.5 in. (8.89cm)

Extra blades: Blade Round 5.25"for Eastman Cutting Machines, R80C1-61
Sharpening Stones: Sharpening Stone & Spindle (Shaft) Complete 541C1-9

The Cardinal® model 548 is Eastman’s most widely-used round knife machine. It is available in two different blade sizes, and it is designed with a lightweight, powerful motor to provide optimum cutting configuration.

Eastman round knife machines are ideally suited for cutting large radius curves, straight lines and are applicable for a wide range of difficult to cut materials.

Features:

  • Available with two different blade sizes
  • Powerful motor provides versatility for cutting a wide range of materials
  • Blades are available in carbon steel, high speed steel, grooved and PTFE coated

Specifications:

Motors
110V, 1ph, 50/60Hz 220V, 1ph, 50/60Hz High speed (3600/3000 RPM) Low speed (1800/1500 RPM)
Horsepower
0.34hp, 1ph 0.48hp, 3ph
Weight
21 lbs. (9.52kg)
Blades
Standard: Carbon Steel Optional: High Speed Steel, Grooved, PTFE Coated
Sharpener Stones
Standard: 120 Heavy Optional: 150 Medium, 220 Fine
Options
Knife lubricator, stationary base plate
Blade Size
5.25 in. (13.3 cm) 6 in. (15.2 cm)
Cutting Capacity
3.125 in. (7.95cm) 3.5 in. (8.89cm)

DOWNLOADS:

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
