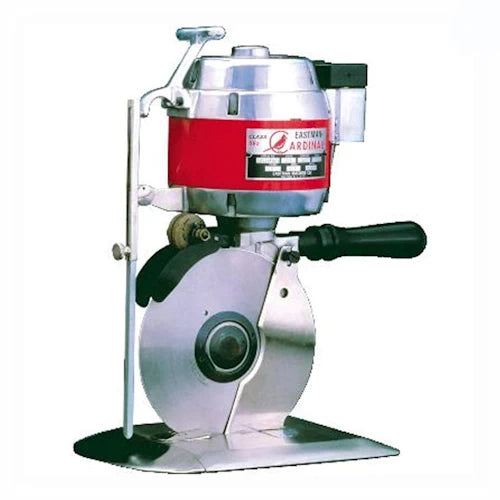

Eastman Cardinal® Heavy Duty Cutting Machine Model 562

Eastman Cardinal® Heavy Duty Cutting Machine Model 562

562

$3,439.99
$3,439.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

Eastman Cardinal® Heavy Duty Cutting Machine Model 562

3 to 6 weeks for Delivery

Heavy-duty Cutting for Lays up to 4.75". The Heavy Duty Cardinal offers a heavy-duty motor to provide increased torque and blade speed, making it ideal for most general-purpose cutting of canvas, burlap, cotton, cotton backing, woolens, and knits.

Features:

  • Heavy-duty Cutting
    • Heavy-material cutting via the combination of torque and blade speed
  • Accuracy
    • Eliminates cutting distortion due to the narrow silhouette standard and extremely low base plate.
  • Stability
    • Vibration-free cutting with smooth and easy maneuverability
  • Efficiency
    • Simple handling of the machine due to its low center of gravity
  • Single-hand engaging of power supply via the Patented Uni-Safe Terminal Block and Attachment Plug
    • Ability to reduce speed to eliminate fusing, provided by the dual-speed option
  • Durability
    • Built with the highest-grade materials available

Specifications:

  • Motors:
    • 110v, 1ph: Available
    • 220v, 1ph: Available
    • 220v, 3ph: Available
    • Single Speed-Standard
    • Dual Speed-Optional
  • Blade Types:
    • Double Bevel: Available
    • Teflon Coated: Available
    • Steel: Standard
    • High-Speed Steel: Optional
    • Slotted: Optional
    • Grooved: Optional
  • Sharpener Stone Grits
    • 120 Heavy: Available
    • 150 Medium: Available
    • 220 Fine: Available
  • Weight: 36 lbs. (13.6 kg.)
  • Horsepower:.65 hp, 1ph; .93 hp, 3ph
  • Blade Size:  7.5"
  • Cutting Capacity:  4.75"

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
