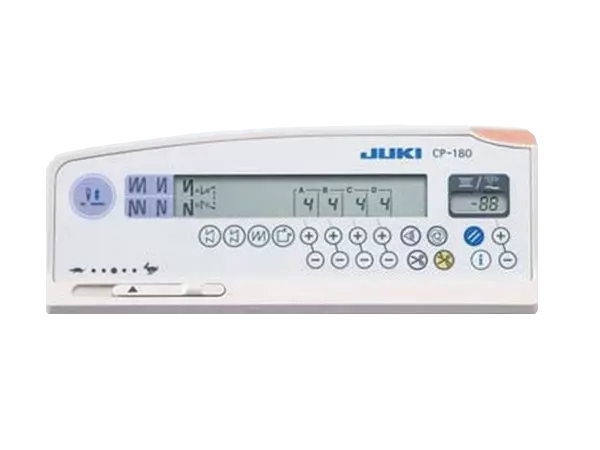

Control Panel - JUKI #CP-180

is a high-performance digital operation panel designed to unlock the full potential of Juki’s industrial sewing machines. When paired with the SC-920 series control boxes, this panel provides an intuitive interface for programming stitch patterns, controlling automated functions, and monitoring production data with precision.

Love JUKI? Goldstar Tool Has You Covered

Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.

CP-180 MACHINE COMPATIBILITY:

  • JUKI Models: DDL-8700-7, DDL-9010A-SH, DDL-9010A-SS, DLN-6390-7, LH-3500A, LH-3500A-7, LH-4128, LH4128-7, DSC-245-7・246-7, DSU-142-7・145-7, DU-141H-7, LZH-1290-7, DNU-1541-7, LS-1342-7, LU-1510N-7・1511N-7・1510NA-7,LU-1520N-7・1521N-7, LU-1560N-7・1561N-7, LU-2210N-7・2210W-7・2212N-7, LU-2216N-7・2266N-7, LU-2220N-7・2260N-7・2260W-7, PLC-1710-7・1760-7・1760L

CP-18 MACHINE COMPATIBILITY:

  • JUKI Models:  DLN-6390-7, LH-3500A, LH-3500A-7, LH-4128, LH4128-7, MF-3620-B(Direct-drive Hand-pulley type), MF-7200D/UT(Thread trimming type), MF-7700・7700D/UT(Thread trimming type), MF-7800・7800D/UT(Thread trimming type),MH-481-5・484-5・486-5, MO-6700・6900/LB6, MS-3580, DSC-245-7・246-7, DSU-142-7・145-7, DU-141H-7, LZH-1290-7 DNU-1541-7, LS-1342-7, LU-1510N-7・1511N-7・1510NA-7, LU-1520N-7・1521N-7・1560N-7・1561N-7, LU-2210N-7・2210W-7・2212N-7, LU-2216N-7・2266N-7, LU-2220N-7・2260N-7・2260W-7, PLC-1710-7・1760-7・1760L

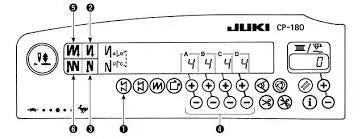

Intuitive Digital Interface: Features a clear, backlit display and a user-friendly keypad for rapid adjustment of sewing parameters.

Programmable Stitching: Easily set up constant-dimension sewing, rectangular stitching, and multi-layered backtacking patterns.

Automated Function Control: Centralized control for automatic thread trimming, foot lifting, and needle positioning (up/down).

Production Support: Includes a built-in "Bobbin Thread Counter" and "Stitch Counter" to help operators manage thread capacity and production targets.

Seamless Integration: Designed specifically for compatibility with Juki SC-920, SC-921, and SC-922 control boxes.

Error Diagnostics: Displays real-time error codes to simplify troubleshooting and reduce machine downtime.

Function Comparison table between CP-18 and CP-180

  • Production support functionCP-18CP-180
  • Automatic reverse-feed stitching (performed at start/end of sewing: select-able)CP-18 - 0 to 15 stitchesCP-180 - 0 to 19 stitches
  • Double reverse-feed stitching (performed at start/end of sewing: select-able)CP-18 - 0 to 15 stitchesCP-180 - 0 to 19 stitches
  • Constant-dimension sewing (performed at start/end of sewing: select-able)CP-180 - 0 to 500 stitches, 0 to 19 stitches
  • Rectangular stitching (performed at start/end of sewing: select-able)CP-180 - 0 to 99 stitches, 0 to 19 stitches
  • Multi-layer stitchingCP-18 - 0 to 15 stitches,0 to 9 timesCP-180 - 0 to 19 stitches, 0 to 9 times
  • Bobbin Thread counter displayCP-18CP-180
  • Needle up/down Correction (1 stitch stroke or needle up/down according to the internal setting)(changeable between "up → down" and " down → up"CP-180
  • Automatic sewing (select-able between constant-dimension sewing and rectangular sewing)CP-180
  • Max. sewing speed control dialCP-180
  • Display of sewing speed (combined with the SC-921, SC-922)CP-18CP-180

DOWNLOADS:

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
